ELECTRICALS
88
1. TO CONDENSER FAN
2. TO ENGINE COOLING FAN
3. TOHORNS (LOWTONE &HIGHTONE)
4. TO FRONT FOG LAMP - LH
5. TOHEAD LAMP - LH
6. TO FRONT BLINKER - LH
7. TOEARTHINGLUGS
8. TO FUSE BOX AND RELAYS
9. TOSIDE REPEATER - LH
10. TOWIRINGHARNESS ENGINE LAMP
11. TOWIRING HARNESS CABINON LH
SIDE
12. TOGLOWPLUGTIMER (4DL only)
13. TOSIDE REPEATER - RH
14. EARTHINGLUGS
15. TO FRONT BLINKER LAMP - RH
17. TOHEADLAMP RH
18. TO FRONT FOG LAMP - RH
19. TOA/C CLUTCH
21. PRESSURESWITCH
22. TOBRAKE FLUIDBOTTLE SWITCH
23. TOSTOP LIGHT SWITCH
24. TOGLOWPLUG
24. TOHEATERMANIFOLD
(FOR DICOR)
25. TOTEMPERATURESWITCH
26. TOFRONTWIPERMOTOR
28. TOREARW/SWASHER
29. TOFRONTW/SWASHER
30. TOSTARTER SOLENOID
31. TOSTARTERMOTOR
32. TOALTERNATOR
33. TOWIRINGHARNESS EMS

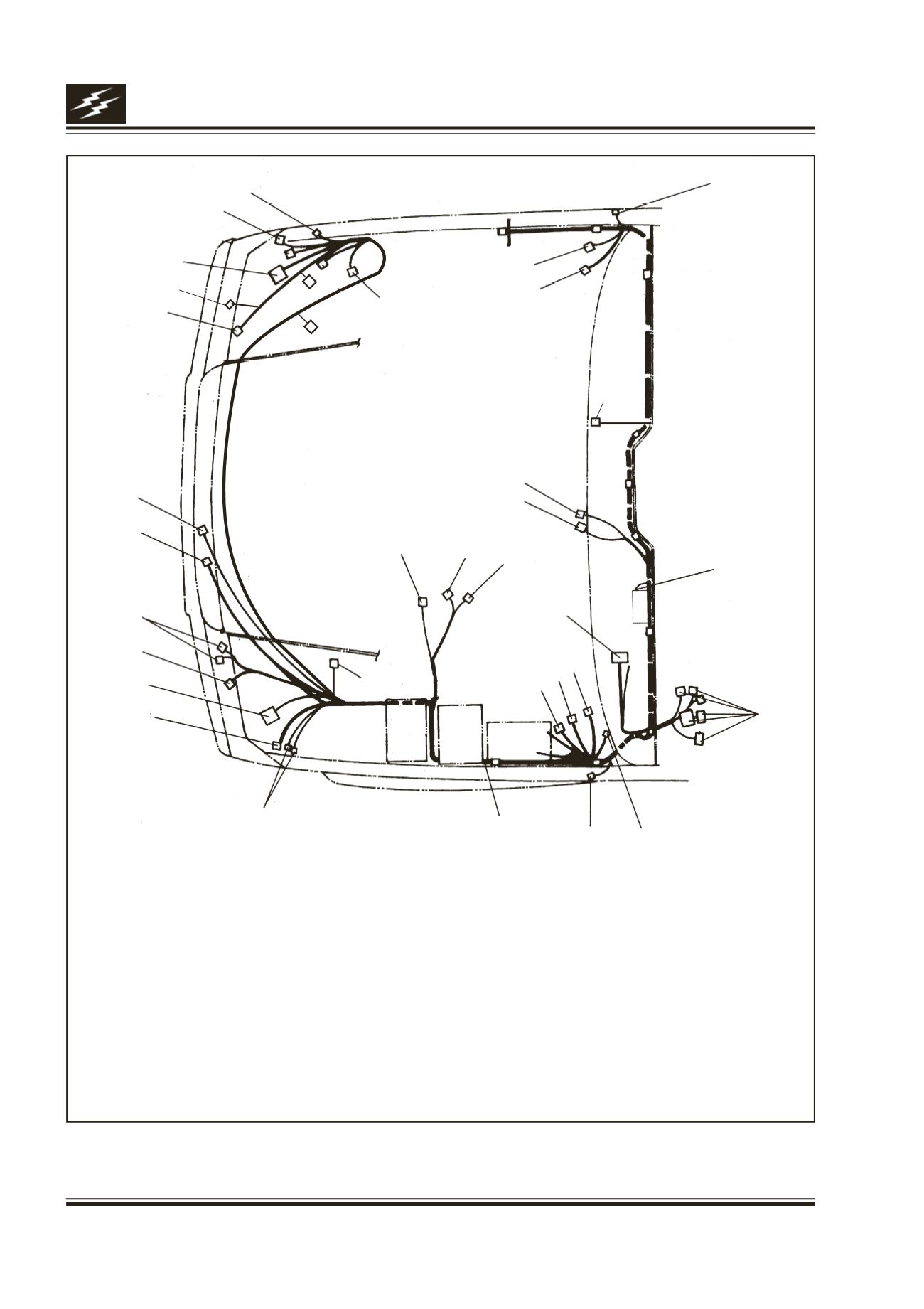

Fig. 8 - Wiring harness front
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
21
22
23
24
25
26
27
28
29
30
31
32
33
19
2
3
For Dicor
19 (for 4DL)
