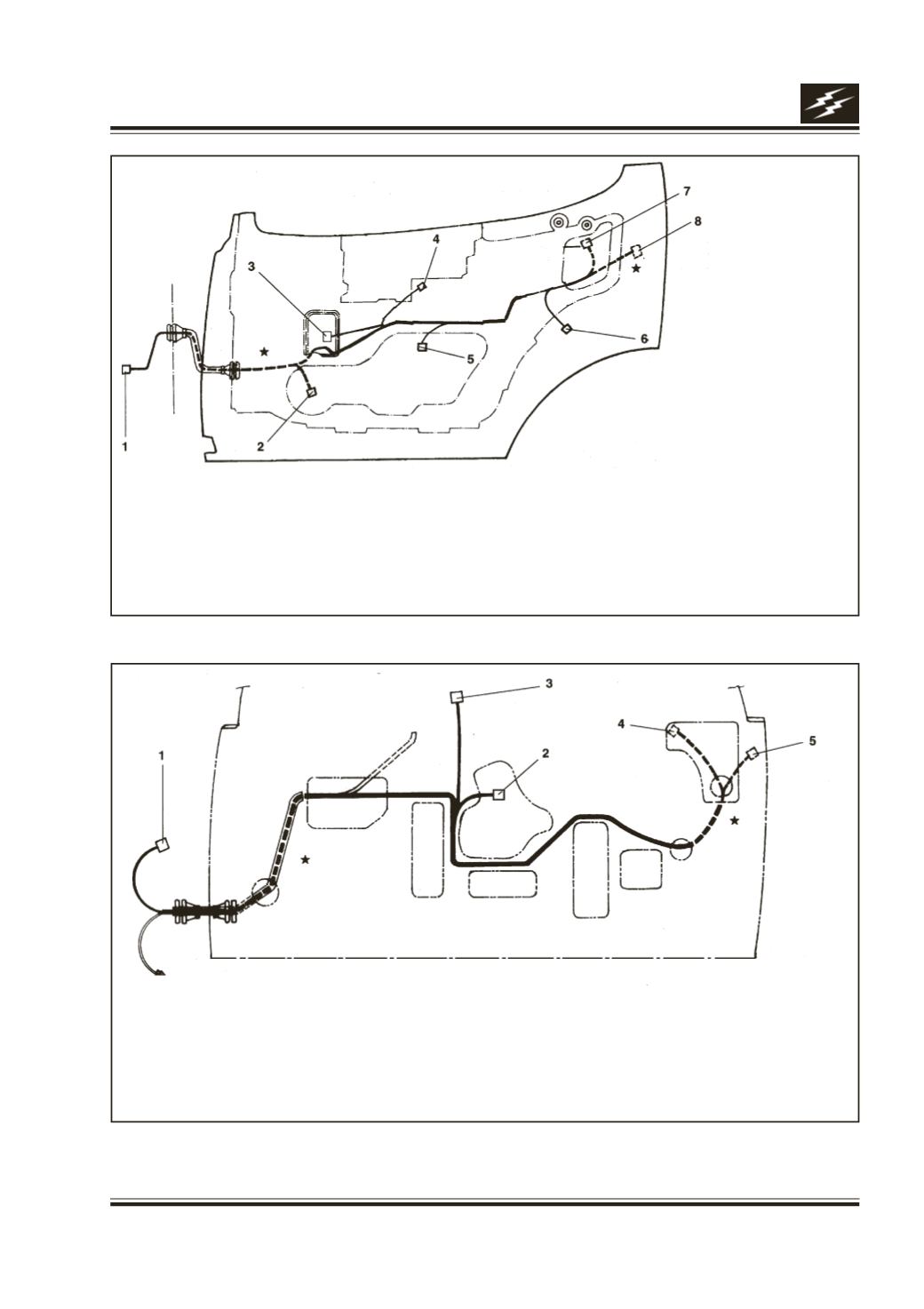

Fig. 3 - Wiring harness rear door RH/LH
Fig. 4 - Wiring harness tail gate
RH SIDE - AS SHOWN
LH SIDE - MIRROR
* DOTTED PORTION
INDICATES WIRING
HARNESS BEHIND
PLASTIC MEMBRANE AND
DOOR INNER PANEL.
1. TO WIRING HARNESS
TAIL RH/LH
2. TO SPEAKER
3. TO DIODE MODULE
4. TO WINDOW WINDING
SWITCHES
5. TO WINDOW WINDING MOTOR
6. TO DOOR LAMP
7. TO POWER LOCK
8. TO DOOR SWITCH
1. TO WIRING HARNESS TAIL - RH
2. TO REAR WIPER MOTOR
3. TO REAR GLASS DEMISTING
4. TO POWER LOCK
5. TO DOOR SWITCH
* DOTTED PORTION
INDICATES WIRING
HARNESS BEHIND
PLASTIC MEMBRANE AND
DOOR INNER PANEL.
