SAFARI

ELECTRICALS

SAFETY PRECAUTIONS :

Make sure to read the “Service /User Manual” for safety

precautions before opening / replacing / servicing the

system.

Please make sure the vehicle is well parked at a safe

place and the engine and the power of the vehicle

are switched off.

Avoid installation outdoors under a thunder/raining

situation.

INSTALLATION :

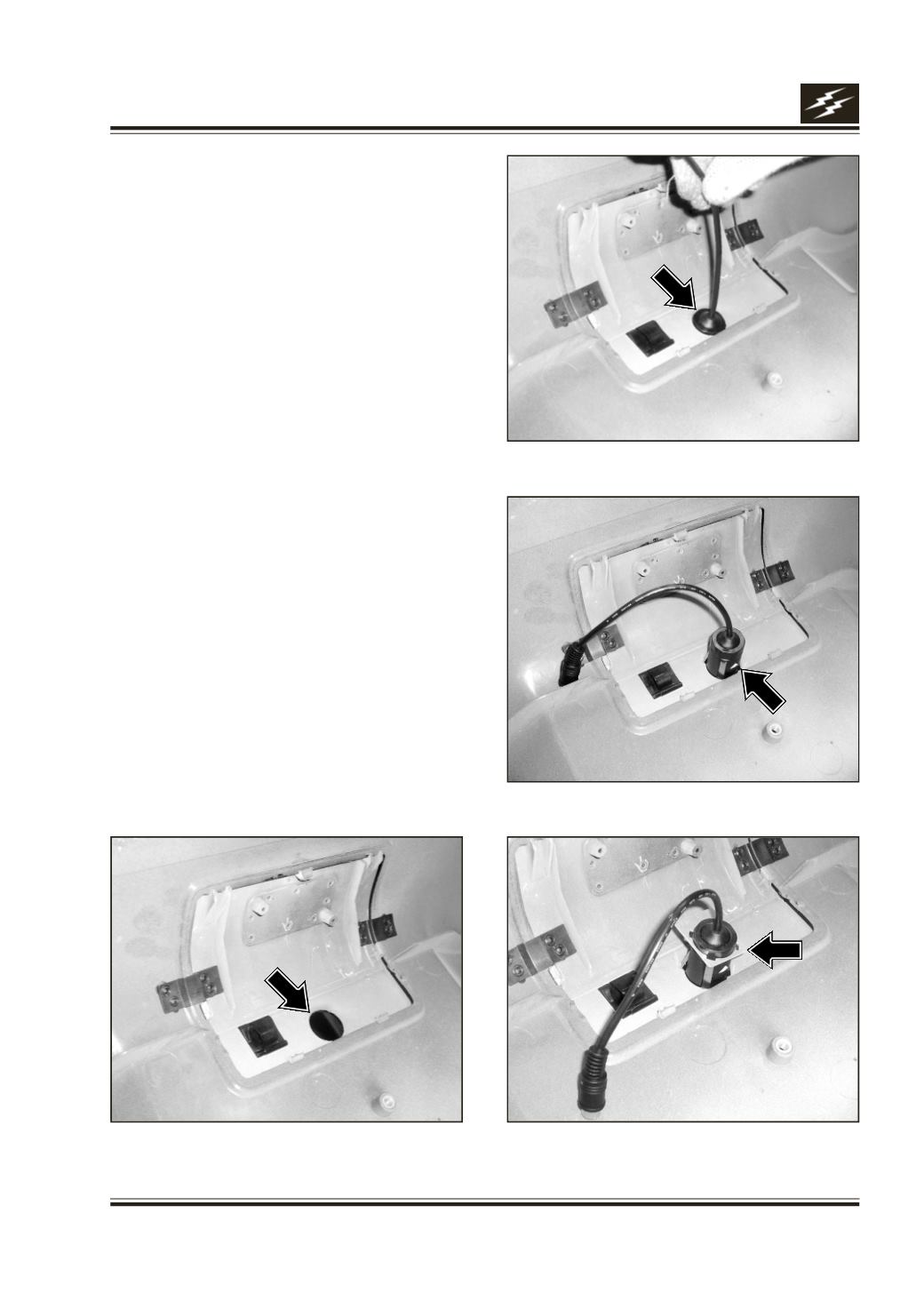

Follow these steps to install the Camera & Module Box

on to Bumper Assembly: (This is done before Bumper

is fixed to Vehicle & when Bumper reinforcement is

not yet mounted)

1. Insert (Camera) Cap-Ring /Base on to Camera

Housing until it clicks on to 4-Camera clips,

keeping broad side facing the same side as

Camera Lens.

2. Push Camera firmly thro’ 25 mm dia. hole provided

in the Tow Cover (Fig.2) from connector side

until it clicks on to 4-Camera clips.

Please turn the white mark on the camera to top

side. This will ensure that image on the Monitor

will be up-right & not inclined or up-side down.

(Fig.3)

3. Insert Metal Pad Lock on Camera Housing until it

touches inner side of Tow Cover & until it clicks on

to 4-Camera clips. (Fig.4)

Fig.1

Fig.2

Fig.3

Fig.4
