ELECTRICALS

84

1. TOWIRINGHARNESS CABIN

2. TO SPEAKER / TWEETER

3. TO MIRROR SWITCH (FOR FRONT

DOOR - RH ONLY)

4. TO MIRROR MOTOR

1. WIRING HARNESS FRONT DOOR

2. WIRING HARNESS REAR DOOR

3. WIRING HARNESS TAIL GATE

4. WIRING HARNESSTAIL (FRONT TO TAIL)

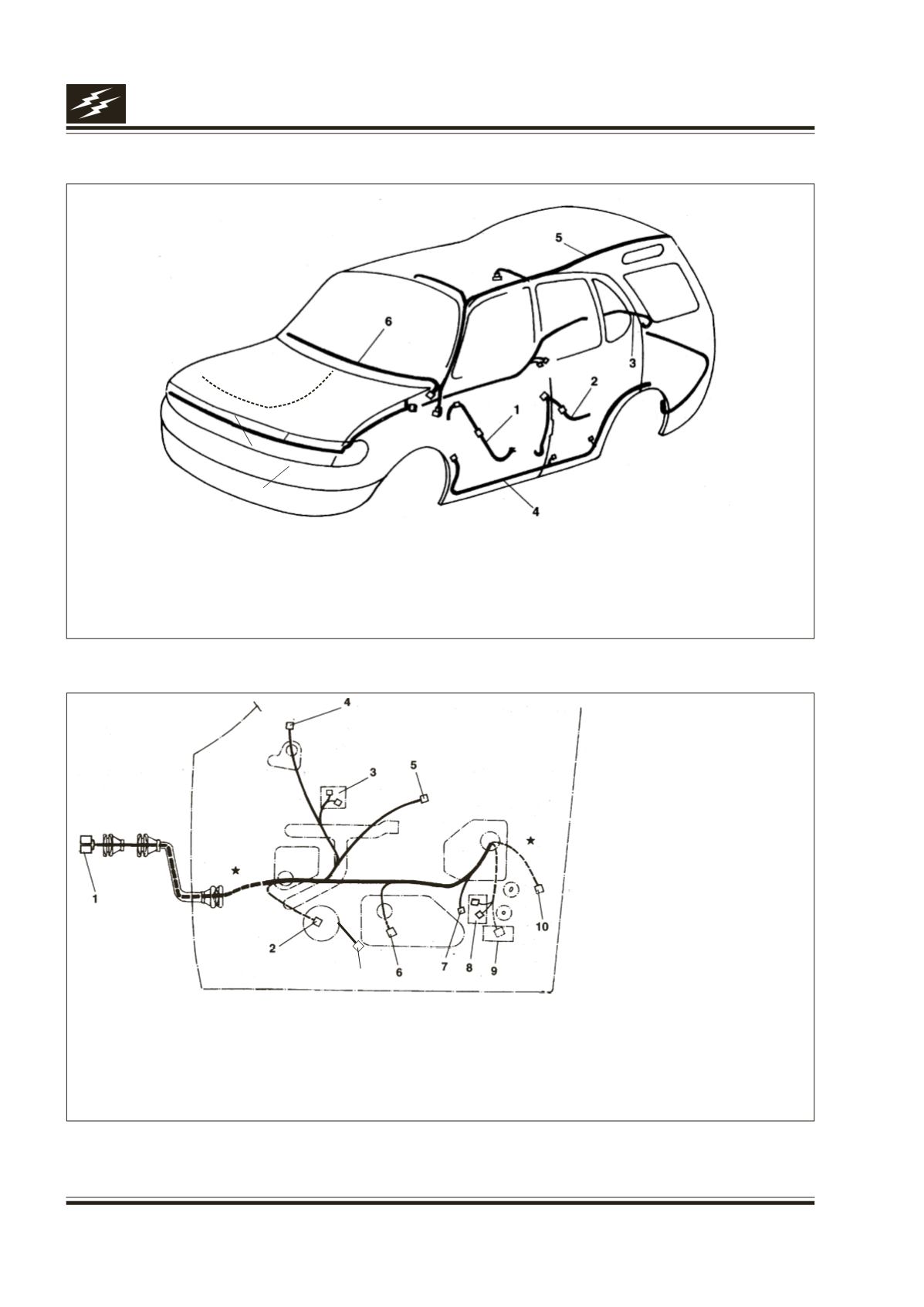

22. WIRING HARNESSES

Fig. 1 - Wiring harnesses

5. WIRING HARNESS ROOF

6. WIRING HARNESS CABIN

7. WIRING HARNESS FRONT

8. WIRING HARNESS EMS (DICOR / 4PL)

5. TOWINDOWWINDING

SWITCHES

6. TOWINDOWWINDINGMOTOR

7. TO DOOR AJAR lAMP

8. TO POWER LOCK (FOR FRONT

DOOR - RH ONLY)

9. TO POWER LOCK (FOR FRONT

DOOR - LH ONLY)

10. TO DOOR SWITCH

11. PUDDEL LAMP

Fig. 2- Wiring harness front

door RH/LH

RH SIDE - AS SHOWN

LH SIDE - MIRROR IMAGE

* DOTTED PORTION

INDICATES WIRING

HARNESS BEHIND

PLASTIC MEMBRANE AND

DOOR INNER PANEL.

8

7

11
