1477 / 1526
ELECTRICALS
86
1.
TO WIRING HARNESS CABIN
2.
TO FRONT INTERIOR LAMP
3.
TO ROOF LAMP MIDDLE

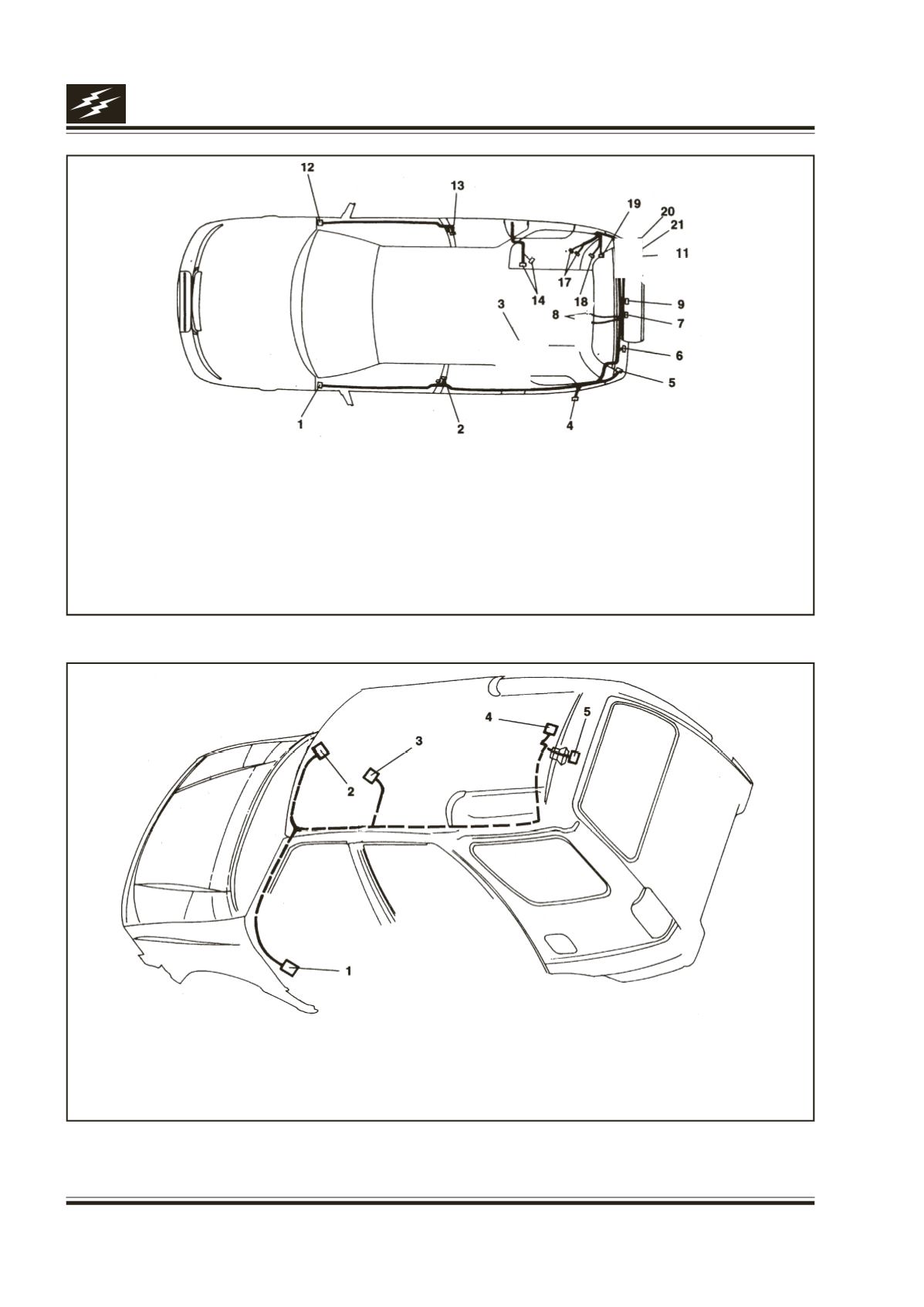

Fig. 6 - Wiring harness roof
4.
TO ROOF LAMP REAR
5.
TO HIGH MOUNTED STOP LAMP
Fig. 5 - Wiring harness tail (front to tail) RH /LH
1.
TOWIRINGHARNESS CABIN
2.
TOWIRING HARNESS REAR
DOOR - LH
4.
TO FUEL FLAP SOLENOID
5.
TO TAIL LAMP - LH
6.
TRAILER CONNECTION - I
7.
TO NUMBER PLATE LAMP - LH
8.
TO FUEL LEVEL SENSOR AND
TANKUNIT
9.
TO NUMBER PLATE LAMP - RH
11. TRAILER CONNECTION - II
12. TOWIRINGHARNESS CABIN
13. TOWIRING HARNESS REAR
DOOR - RH
17. TO REAR THERMOSTAT
20. TO TAIL LAMP - RH
21. TOWIRING HARNESS TAIL GATE
