SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
12
ON VEHICLE SERVICE
ECU
REMOVAL
1. Disconnect the battery connections.
2. Remove Gear shifter knob and Cover.
(For
procedure refer floor console removal in BODY
section).
3. Remove the assembly floor console rear
(For
procedure refer floor console removal in BODY
section).
4. Remove the Induction charger bin.
(For
procedure refer floor console removal in BODY
section).
5. Remove the floor console front
(For procedure
refer floor console removal in BODY section).
6. Disconnect the electrical connection from the
air bag ECU and remove the ECU assembly.

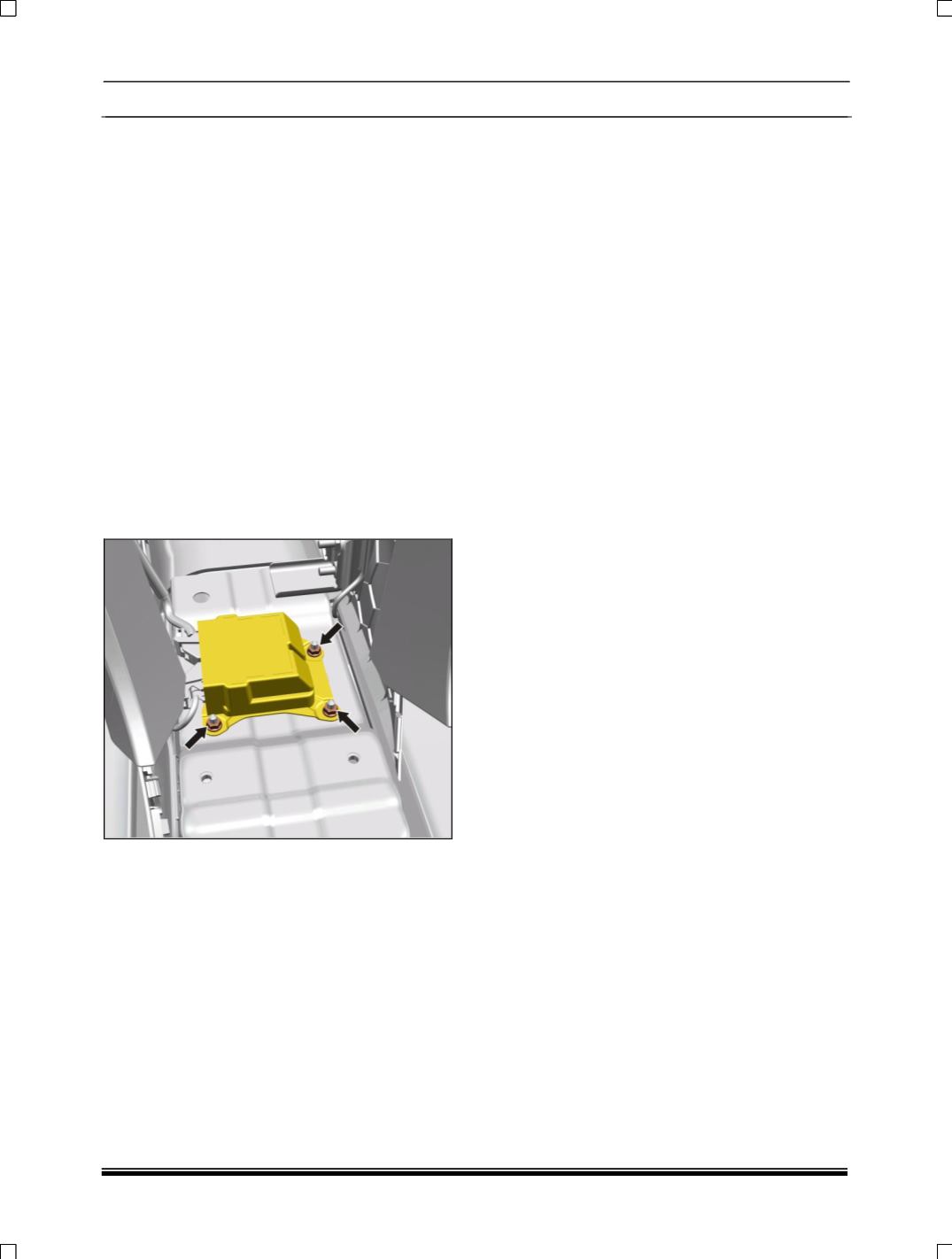

7. Loosen and remove the mounting nuts
FITMENT
For fitment follow reverse procedure of removal.
PRECAUTIONS
If the ECU is accidentally dropped on the
concrete floor from the height of more than 1m
then that ECU should not be used on a vehicle.
ECU should be transported with proper packing
material.
Always store the ECU in dry place.
A person handling any restraints module
assembly shall have to wear ESD
(electro-static
discharge)
straps to reduce any risk of
inadvertent deployment.
