11.1.5. DISPOSAL OF FAULTY AIR BAG UNIT
Airbags that have not been safely deployed can
cause severe injury to humans & a significant
damage to equipment. If special handling
procedures are followed the airbags can be safely
deployed & then all component parts can be
properly recycled.
DISPOSAL PROCEDURE
NOTE
The disposal of AIR BAG module assembly
shall be done in an area with adequate
ventilation.
A person handling any restraints module
assembly shall have to wear ESD (electro-static
discharge) straps to reduce any risk of
inadvertent deployment.
1. Follow the guidelines for removal of AIR BAG
module assembly as specified in workshop
manual. If the module assembly is found
defective before fitment on the vehicle, go to
step 2
.
2. Wear adequate ear protection device (
ear
plugs)
, safety goggles and safety hand gloves.
3. Connect the specified connector to the
restraints module assembly, with a pig-tail.
4. Clamp the restraints module assembly in a
shop bench vise
(or equivalent clamping
mechanism)
. The clamping force should be
adequate.

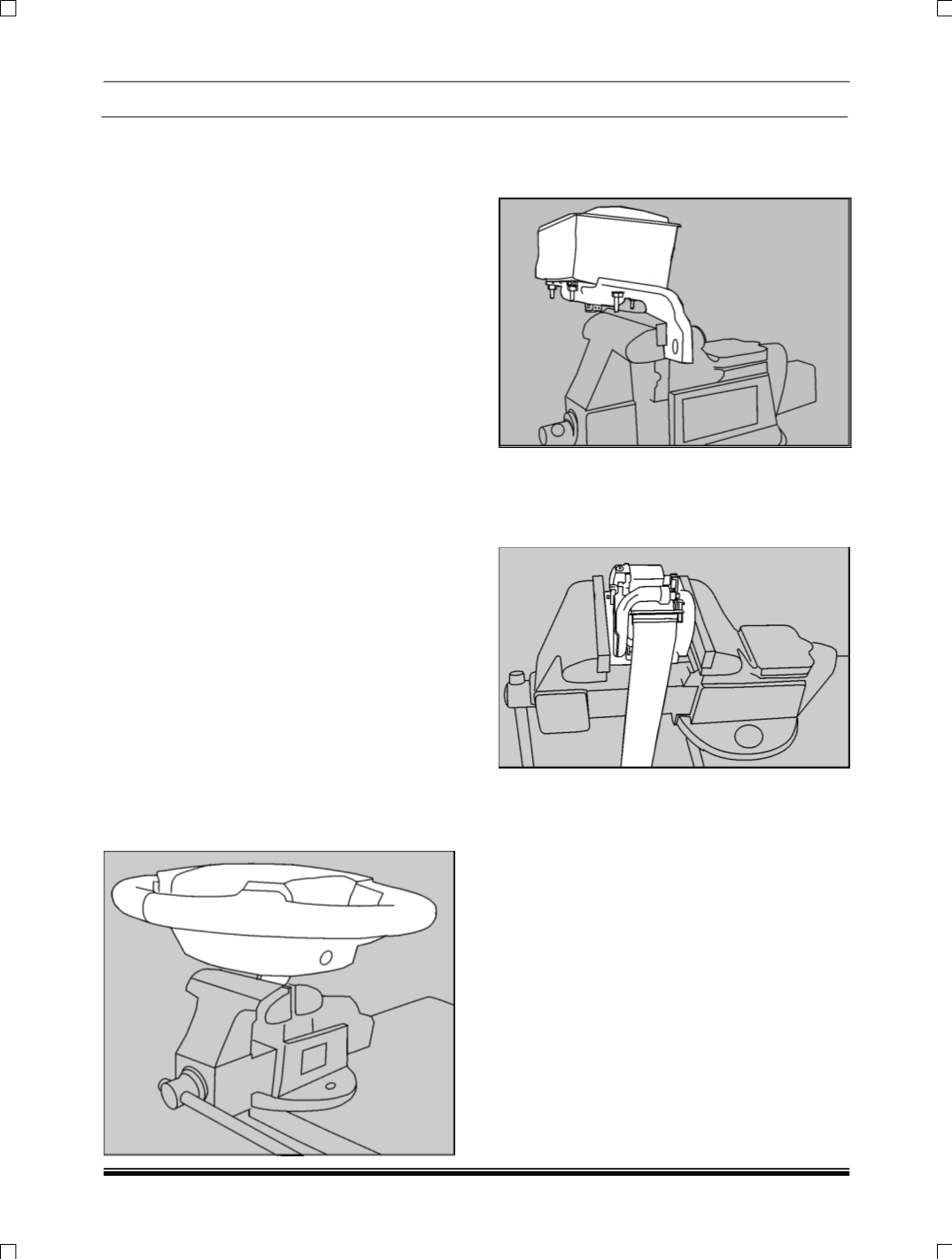

5. refer the following methods for clamping the
different air bag modules on bench vise
i. DRIVER AIR BAG (DAB)
The steering wheel should be clamped in such a
way that the DAB module should face upwards.
ii. PASSENGER AIRBAG
Airbag mounting bracket (
located on Cross Car
Beam)
used for mounting module on bench vice.
iii. SEAT BELT (PRE-TENSIONER)
Seat belt assembly can be directly held in bench
vice. Seat belt webbing length could be cut prior to
deployment.
Use a 2 core electrical wire at least 15m long, and
connect to the pig-tail.
6. Place a vehicle battery or equivalent source at
a distance of 15m from the restraints module
assembly. The battery voltage shall be in the
range of 8-16V.
7. Connect one core of the electrical wire to the
positive (+ve) battery terminal.
DO NOT
CONNECT THE OTHER CORE WITH
NEGATIVE (-ve) BATTERY TERMINAL.
8. Make sure that no person is present within
15m radius of the "to be disposed" module
assembly.
9. Connect the other core of the electrical wire
with the negative (-ve) battery terminal for
deployment of module assembly.
10. After deployment, wait for at least 10 minutes
to ensure that none of the components within
the module assembly is too hot.
