SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

15

ON VEHICLE SERVICE

!! WARNING

Always work on the air bag module from the side.

Always carry the module with the cover side

uppermost or away from the body in case being

carried vertically. Do not attempt to repair, open or

apply power (Multimeter) to the air bag module

terminals.

! CAUTION

Disconnect the battery negative lead.

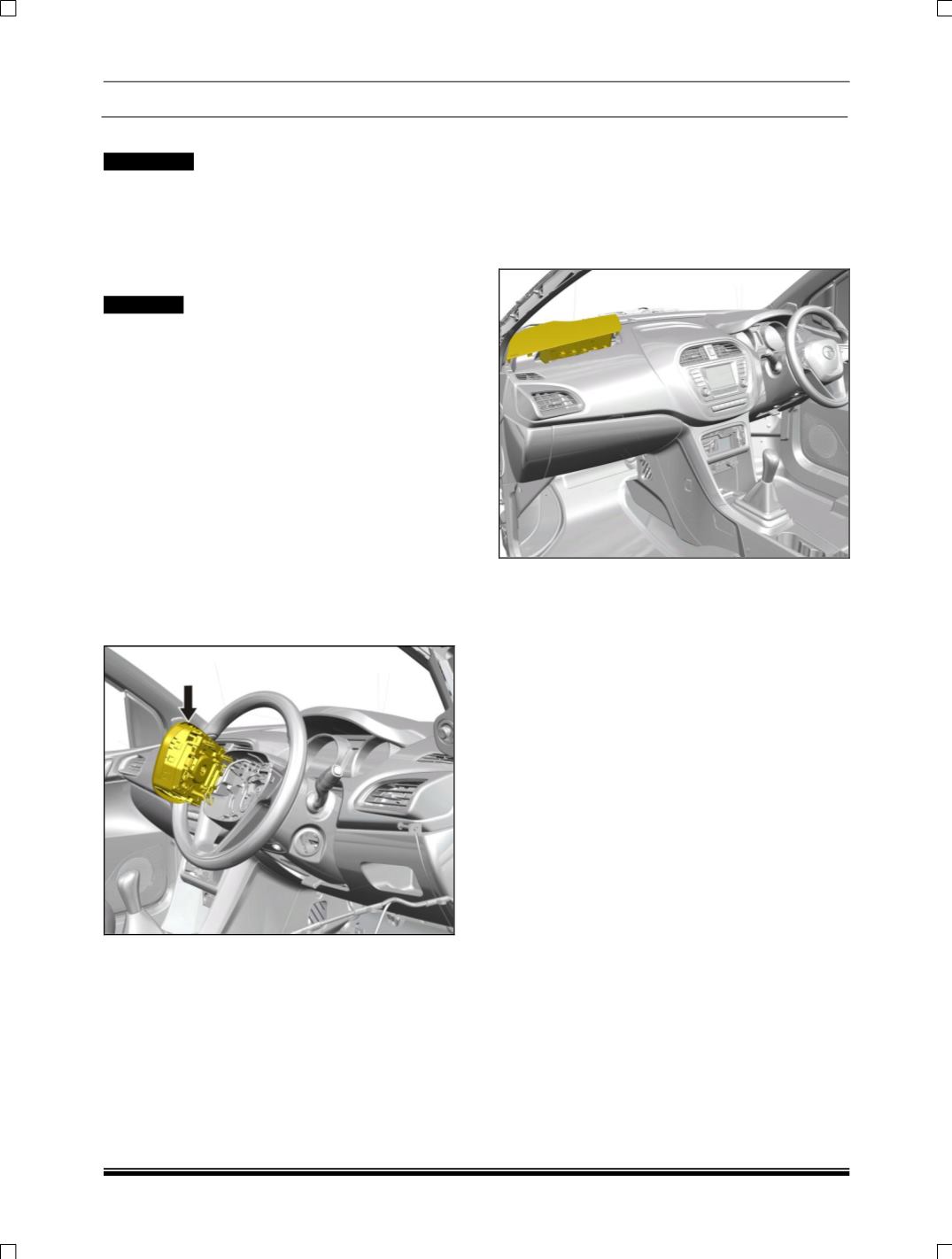

REMOVAL

1. Disconnect the battery connections.

2. Remove lower nacelle assembly. ( For removal

refer Body section )

3. Rotate steering wheel in 90 degree clockwise

direction, insert screw driver from bottom cover

to disengage DAB snap, rotate steering wheel

in 90 degree anticlockwise direction, insert

screw driver from bottom cover to disengage

DAB 2nd snap.

4. Disconnect the DAB connector from clock

spring and disconnect the horn pad connection

and take out the DAB assembly from the

vehicle.

FITMENT

For fitment follow reverse procedure of removal.

NTE

After fitment connect the diagnostic tool and clear

all fault codes if any.

B. PASSENGER AIRBAG (PAB)

The passenger airbag module is located below the

dashboard; above the glove box and its functioning

is controlled by the SRS ECU. A bag within the

module inflates to protect the passenger in the

event of a collision severe enough to deploy the

system.

Within the passenger airbag module is a squib

which, when given the correct current by the SRS

ECU, inflates the airbag by initiating a chemical

reaction. In deployment, the airbag inflates within a

fraction of a second and then deflates at a

controlled rate as the passenger body regions;

typically head and chest interact with airbag. Vents

in the airbag control its deflation.

The SRS ECU regularly applies a test current to

the passenger airbag squib to confirm continuity of

the ignition circuitry.
