TIAGO

BODY

FITMENT

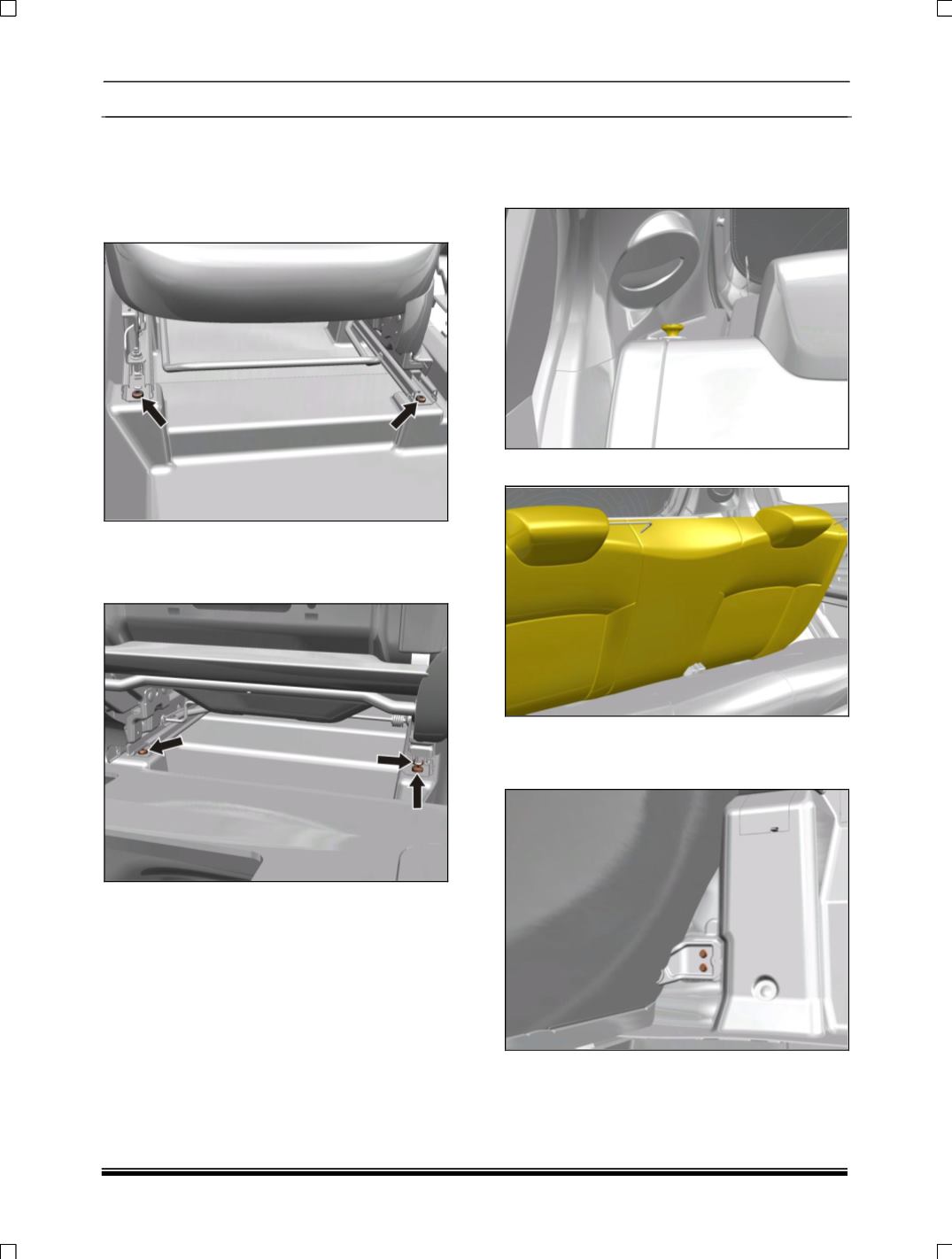

1. Locate the front seat assembly in BIW using

Locating Pin.

2. Fix the seat assembly at front by tightening two

mounting screws.

3. Slide the front seat forward most position.

4. Fix the seat assembly at rear by tightening

three mounting screws.

9.2.24 REAR ROW SEAT

REMOVAL

1. Lift Rear Seat back lock.

2. Fold the seat backrest.

3. Remove two rear seat backrest side bracket

mounting fasteners from both side and remove

rear seat backrest assembly.

4. Pull out C Pillar lower. (For procedure refer C

pillar removal process.)
