BODY
38

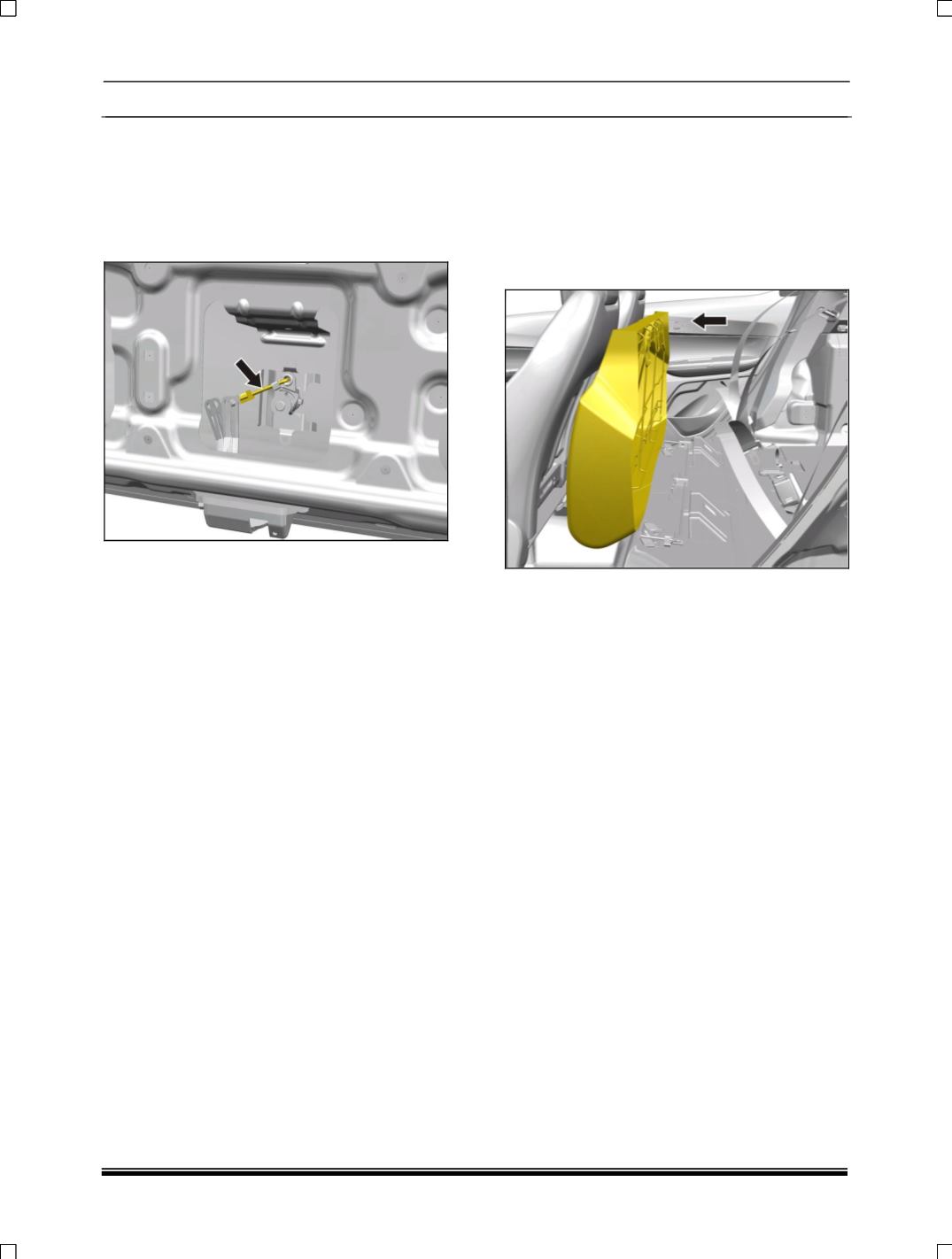

TAIL GATE LOCK
REMOVAL
1. Remove the tail gate trim.
2. Disconnect the link between latch and the Lock
Barrel.
3. From inside, slide out the lock plate from
panel.
4. Pull out the tail gate lock from outside.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
Check the condition of the tailgate lock. Replace
the lock if broken or damaged.
9.2.19 TAIL GATE LATCH CABLE
1. Open the tail gate.
2. Remove parcel shelf.
3. Remove rear seat backrest (for removal
process refer rear seat removal process).
4. Flip the cushion assembly.
5. First remove the carpet on the right hand side
of the vehicle so that the cable routing is
visible.
6. Disconnect tailgate latch cable from tailgate
latch lever.
7. Remove tail gate striker. (For procedure refer
tailgate striker removal process.)
8. Disconnect tailgate latch cable from the
tailgate striker.
9. Pull out the cable from luggage compartment.
FITMENT
For fitment follow reverse procedure of removal.
