TIAGO

BODY

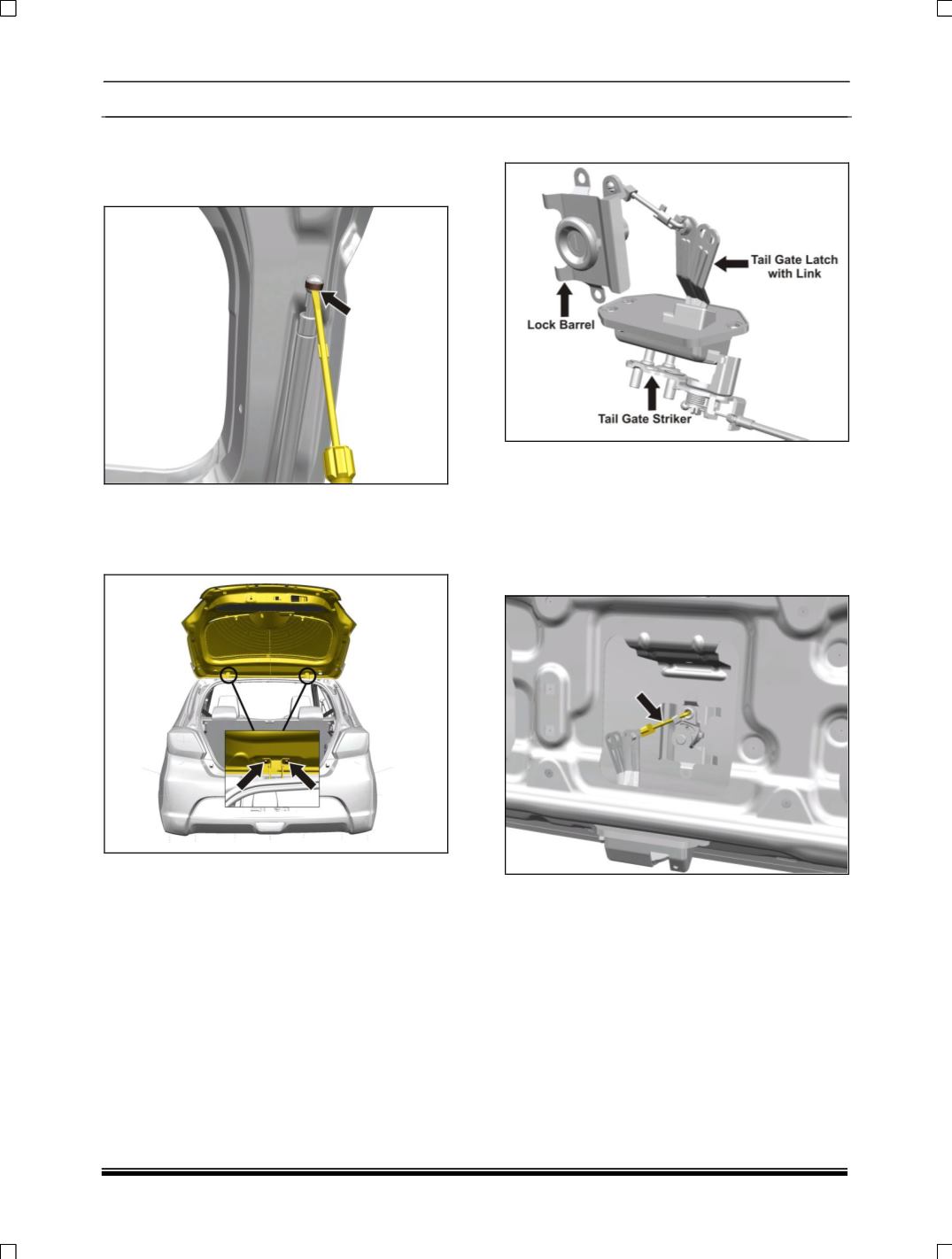

4. Pull halfway the metallic clip present on ball

pin socket from both side and remove the gas

balancer. Follow the same procedure at other

end.

5. Remove the top hinge mounting of the tail gate

by removing two mounting bolts. Follow the

same procedure at the other end and separate

the tail gate from the vehicle.

FITMENT

For fitment follow the reverse procedure of

removal.

NOTE

Ensure proper tightening torque is given to the

hinges of tailgate. For torque value refer to the

tightening torque table.



TAIL GATE LATCH

REMOVAL

1. Open the tailgate.

2. Remove the tail gate trim. (For procedure refer

tail gate trim removal procedure.)

3. Disconnect the link between latch and the Lock

Barrel.
