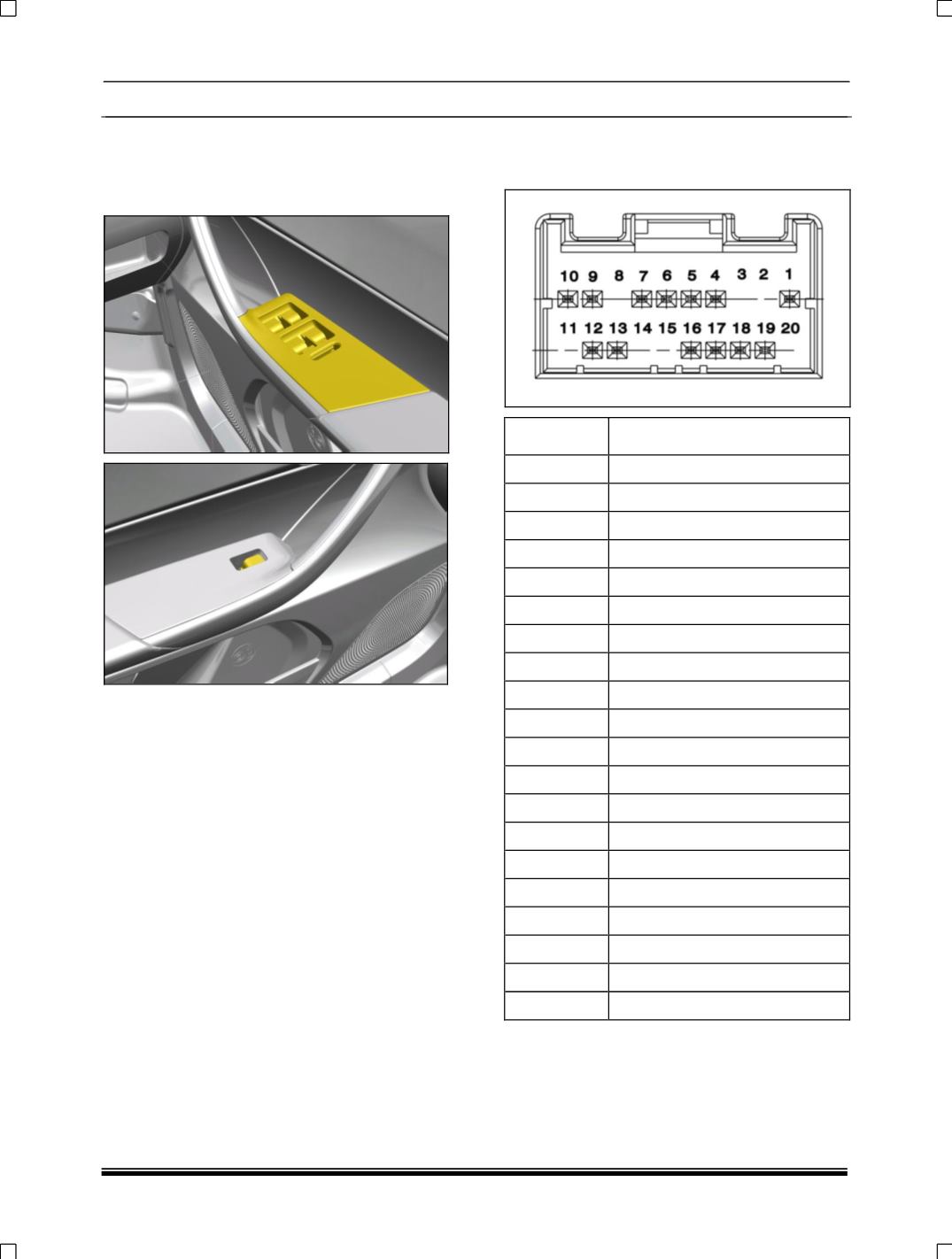

LOCATION:
Window winding switches are provided on RH
side front door. Separate individual switch is
provided on front door LH & rear RH / LH doors.
The switch will function when ignition key is turned
to ’ON’ position. For taking window glass ‘UP’,
press and hold the switch towards position
marked , and for down, press towards position
marked .Do not press switch further when window
glass is at its extreme position. Do not operate
window glass frequently, otherwise Window
winding motor may get over heated and stop
working till it cools down.
Driver Door Window winding s/w is 20
pin connector. For pin out details refer below
Table.
PIN
DESCRIPTION
1
WINDOW LOCK
2
BLANK
3
BLANK
4
REARRH (UP)
5
REARRH(DOWN)
6
EARTH
7
REARLH(DOWN)
8
BLANK
9
REARLH(UP)
10
+VE FORW/LOCK INDICATOR
11
BLANK
12
FRONT LH (DOWN)
13
FRONT LH(UP)
14
BLANK
15
BLANK
16
-VE LED ILLUMINATION
17
+VE LED ILLUMINATION
18
FRONTRH(UP)
19
FRONTRH(DOWN)
20
BLANK
