TIAGO

ELECTRICAL

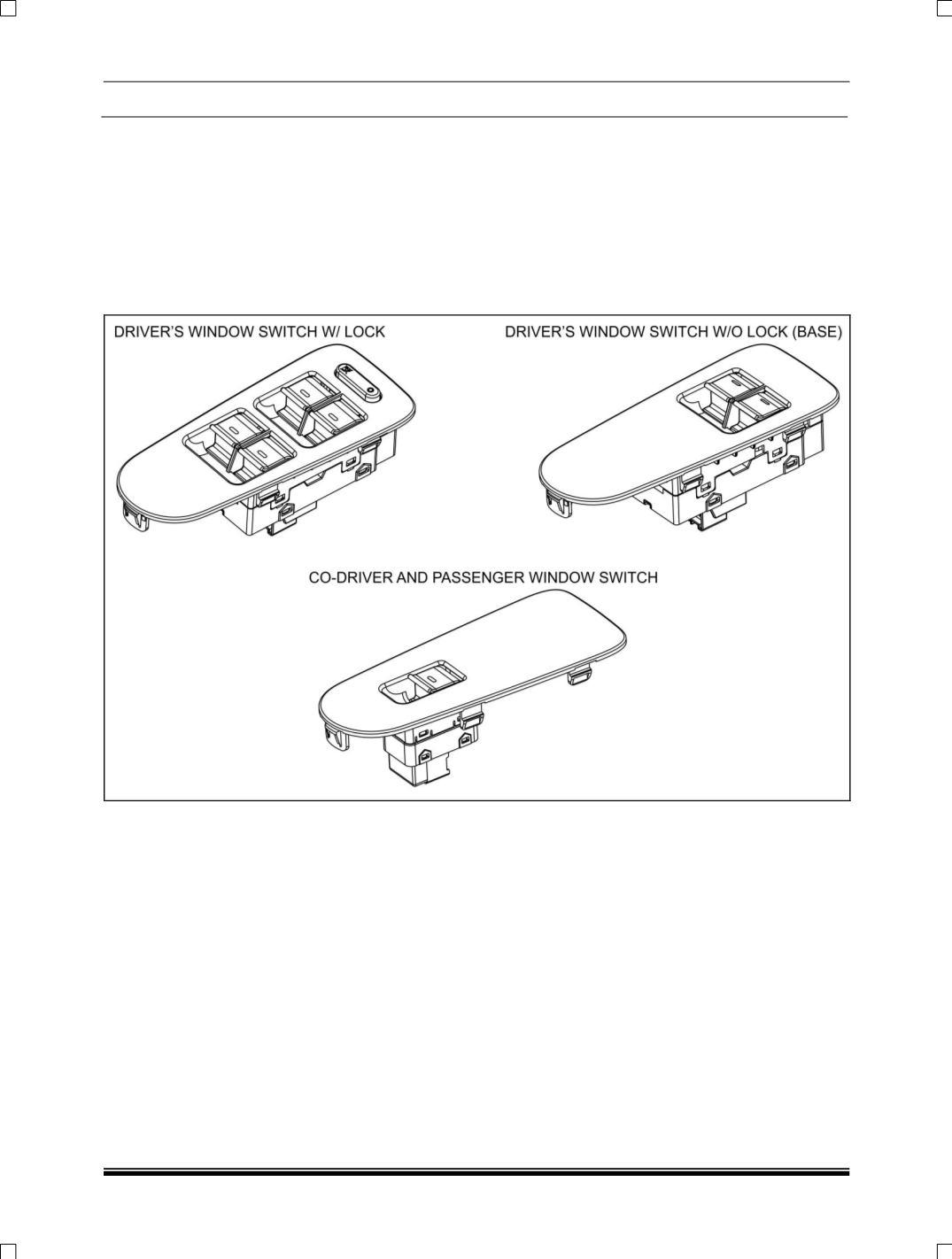

8.20 POWER WINDOW SWITCHES

Window winding switches are used to move the window glasses Up& Down.

Driver door window winding switch includes all door power window switches, mirror switch & inhibit switch

(child safety).

Inhibit Switch - Red indication on inhibit switch indicates that operation of glass from individual power

window switch (mounted on respective door trim) is allowed (valid for co- river and both rear doors)

No indication on inhibit switch indicates that operation of glass from individual switch (mounted on respective door

trims) is inhibited.
