1.05L REVOTORQ ENGINE
155

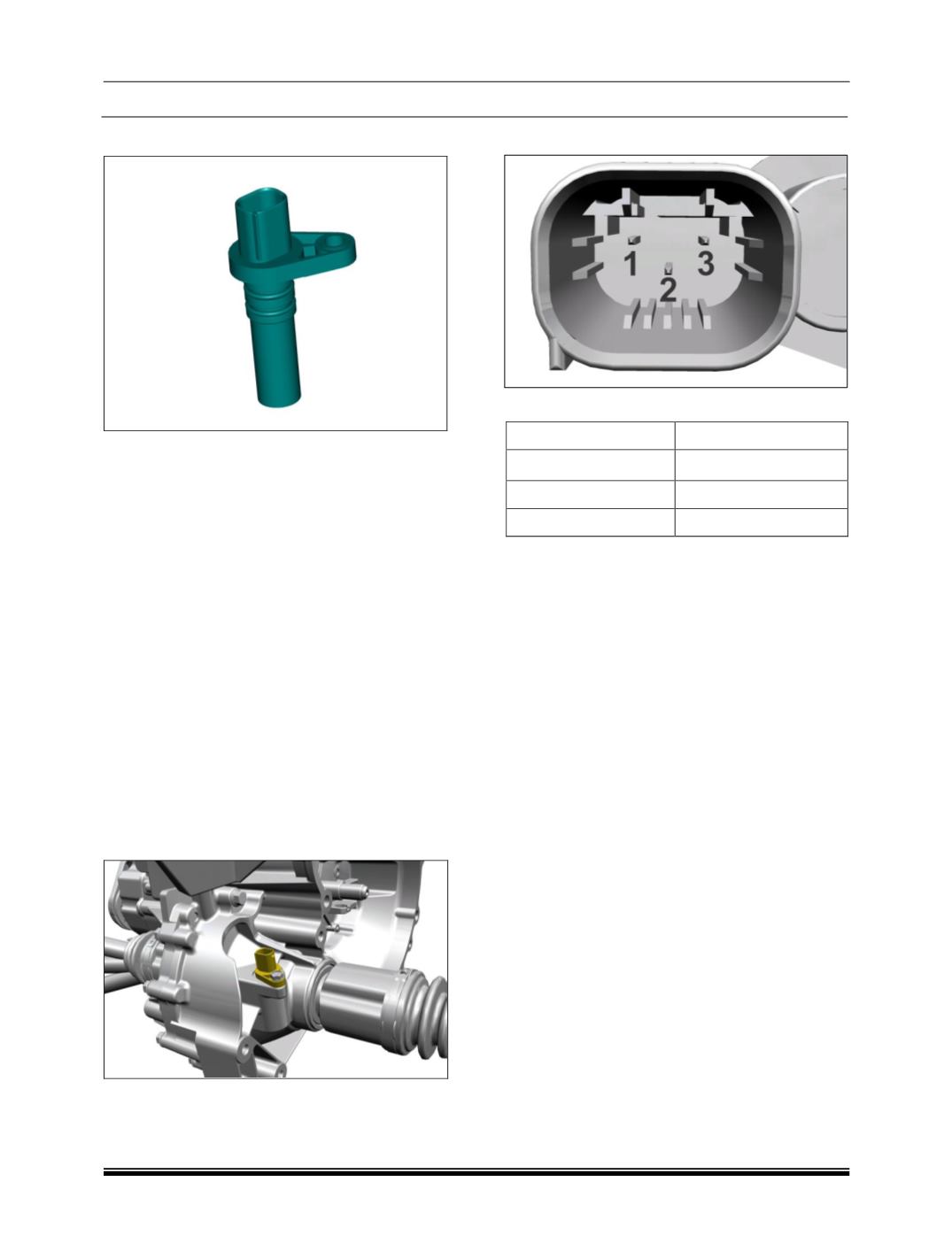

ii. VEHICLE SPEED SENSOR :
Component Details :
This is Hall Effect Type sensor located on
the Transfer case / Gearbox based on the
application which gives vehicle speed information
to the ECU. It also helps the ECU in determining
in which gear the vehicle is driving and ensures
smooth driving at all gears.
Mechanical Properties
Operating temperature: - 30˚C to 125˚C
Operating temperature: - 40˚C to 150˚C
Weight of Component: - 50 gm
Electrical Properties
Operating Voltage: - 8V to 16V DC
Operating Current: - 5mA Max
Output Pulse Per Revolution
Number of teeth on sensing wheel: - 8 Nos
Gear thickness: - 6.0 mm
Component Location :
Connector Detail :
Pin Details:
Connector
Function
1
Supply (+ VE)
2
Output Signal
3
Ground (- VE)
