TIAGO

1.05L REVOTORQ ENGINE

160

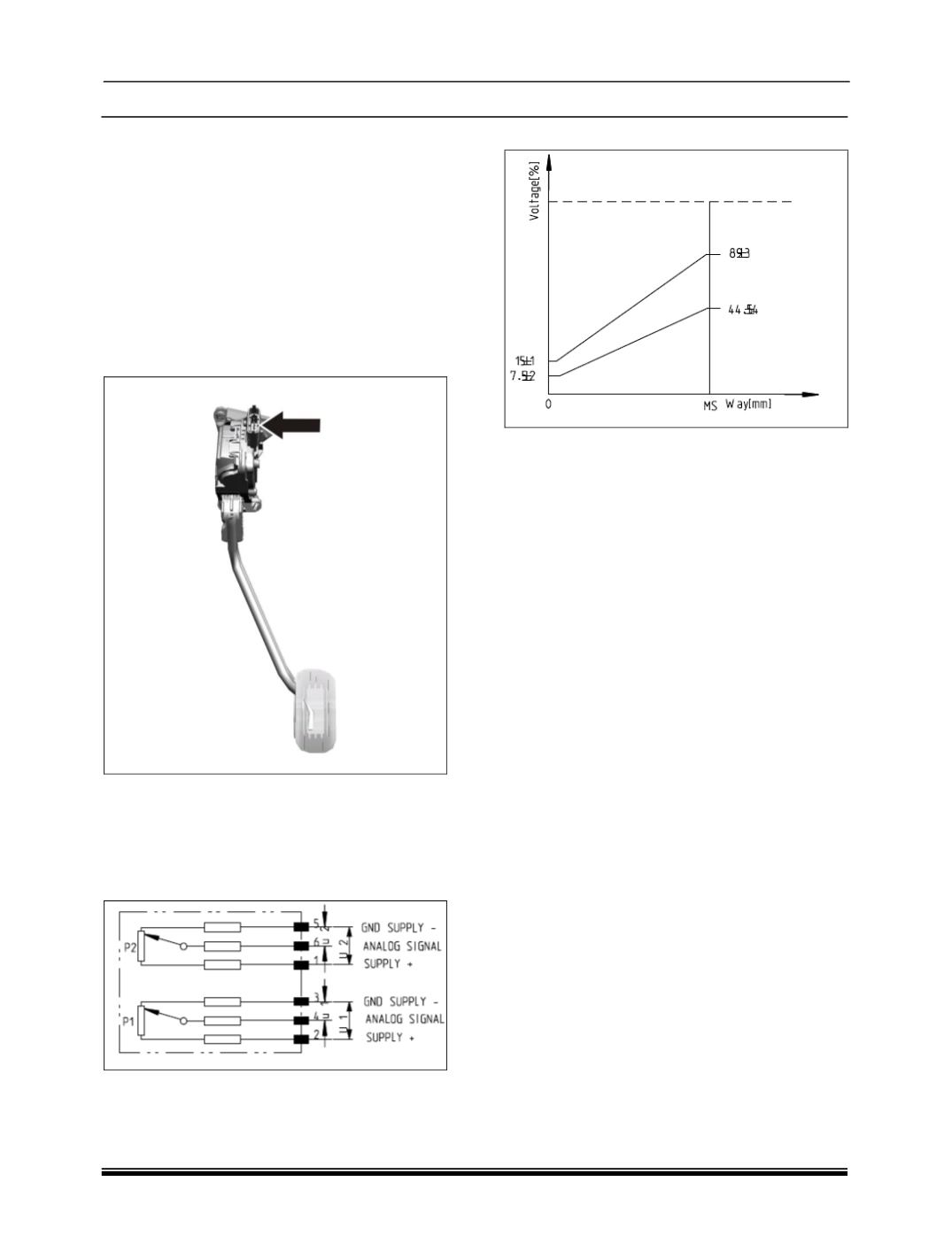

ix. THROTTLE PEDAL SENSOR :

This sensor tells the ECU about the

position of the accelerator pedal. This input is

used to determine the torque required to drive the

vehicle which in turn determines the requirement

of fuel quantity.

This is a dual potentiometer sensor for the

safety & correct inputs (Driver's request/Throttle

position) to ECU.

Throttle Pedal sensor checking values

1.25K ohm +/- 20% between terminals 1 & 5

0.9K ohm +/- 20% between terminals 2 & 4

Operating Voltage :

5V±10%

Operating Temperature :

-30

C to 85

Storage Temperature :

-40

C to 90

Maximum Load Current :

≤ 10mA

Wiring Diagram :

Output Characteristic :
