ELECTRICAL

3

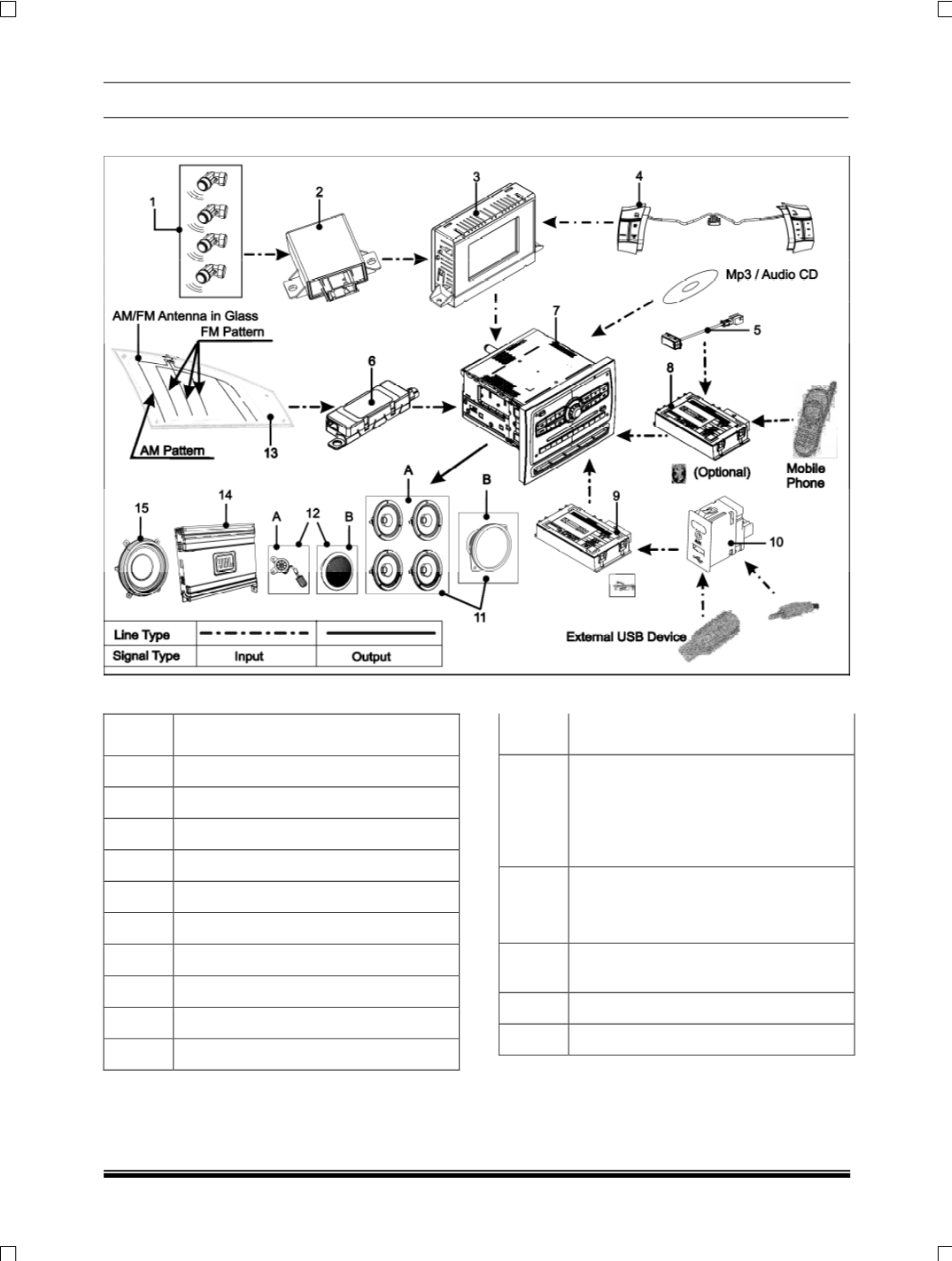

4.3. CONTROL SCHEMATICS:

DESCRIPTION:

DESCRIPTION

1

Ultrasonic sensors

2

Reverse parking system controller

3

LCD display

4

Steering wheel controls

5

Microphone

6

AM/FM amplifier

7

2 DIN music system without navigation.

8

Bluetooth module

9

USB box

10

USB/AUX docking module

DESCRIPTION

11

Speakers

A. Component speakers on front &

Rear doors,

B. Component speakers on front

dashboard

12

Tweeters

A. A pillar Tweeter

B. Rear Door Panel Tweeter

13

AM/FM antenna in left rear quarter

glass.

14

Audio Amplifier

15

Subwoofer
