HVAC
879
HVAC

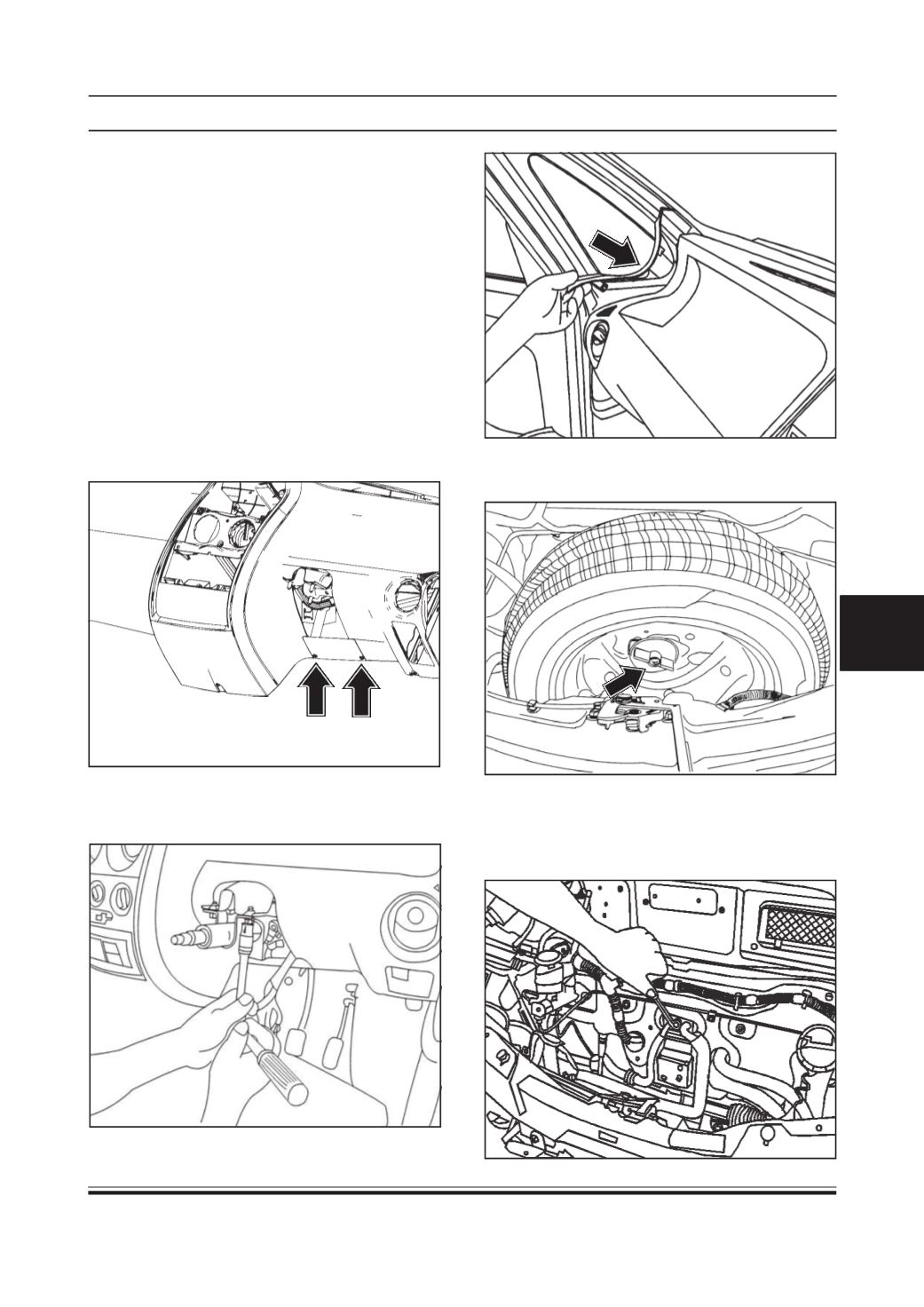

Removal
1. Recover the refrigerant using Refrigerant Recovery
Unit (RRU) (Refer Refrigerant Recovery, Recycling
and Recharging procedure)
2. Disconnect battery.
3. Remove steering wheel (Refer Steering wheel
removal procedure/Steering group)
4. Remove combi switch assembly (Refer Combi
Switch removal procedure/Body Electrical group)
5. Remove Instrument Cluster (Refer Instrument
Cluster removal procedure/Body Electrical group)
6. Remove HVAC control assembly (Refer HVAC
Control assembly removal procedure/HVAC group)
7. Remove two screws of bottom cover nacelle.
8. Remove four bolts securing steering column
assembly to the mounting bracket and carefully rest
the steering column on the floor.
9. Remove two side covers attached to the
dashboard.
10.Unscrew the spare wheel knob and remove spare
wheel.
11. Drain engine coolant. (Refer coolant draining
procedure/ Engine Cooling system)
12.Loosen the nut at expansion valve end and
disconnect refrigerant lines/pipes.
