TRANSAXLE

145

2.0 GEAR SHIFTER CENTER CONSOLE

REMOVAL

AND

RE-FITMENT

ON

VEHICLE:-

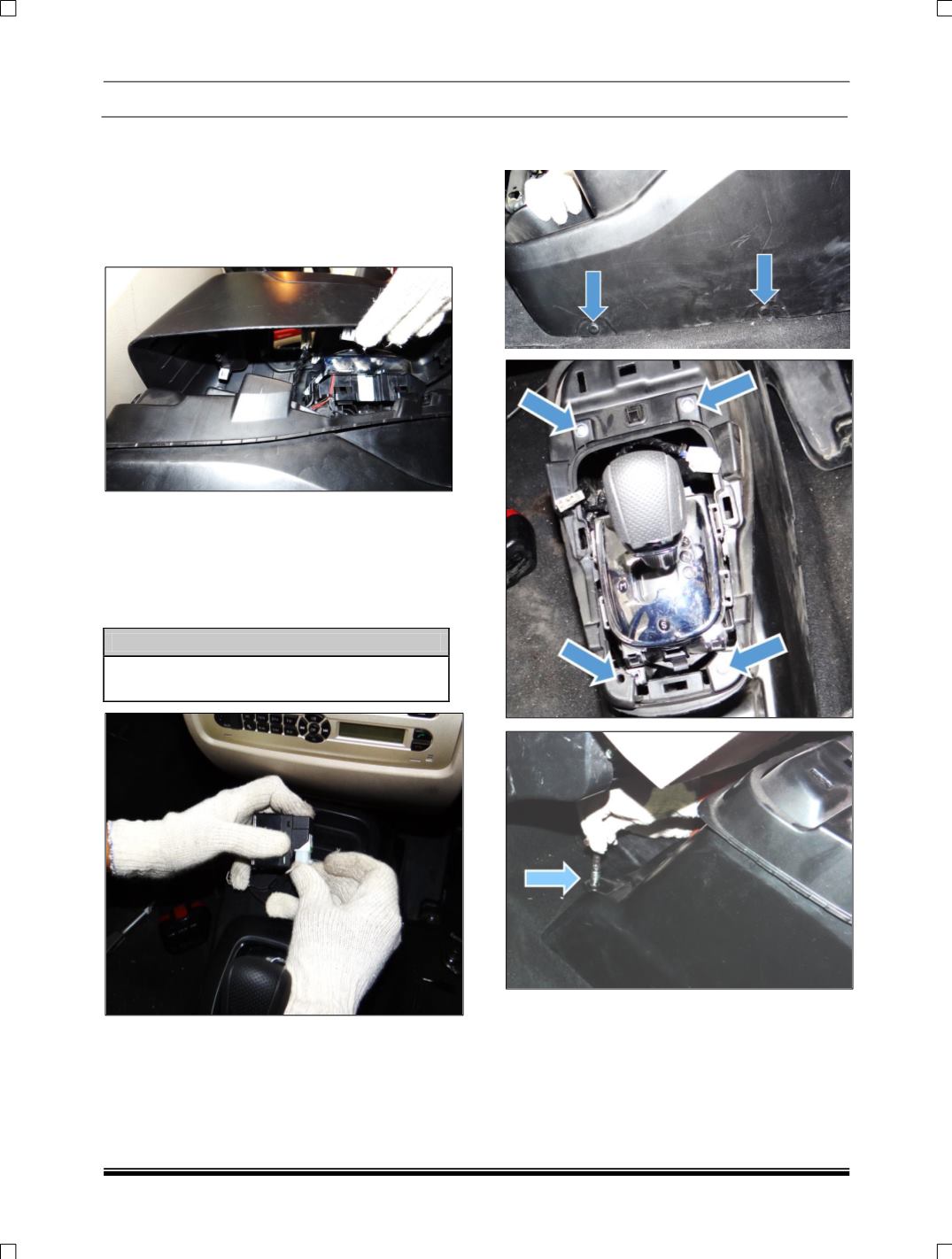

Removal

1. Pull out center console along with power

window switch and power socket.

2. Disconnect the electrical connector of power

window switch and power socket.

3. Remove the power window switch from back

of console by pressing the lock clip of switch

and Pry out the power socket from the

console.

NOTE

Do not remove the switch from front of console

it will damage the lock clip.

4. Remove screws and clips of center console

and take out lower base AMT floor console.
