NANO

TRANSAXLE (NANO AMT)

107

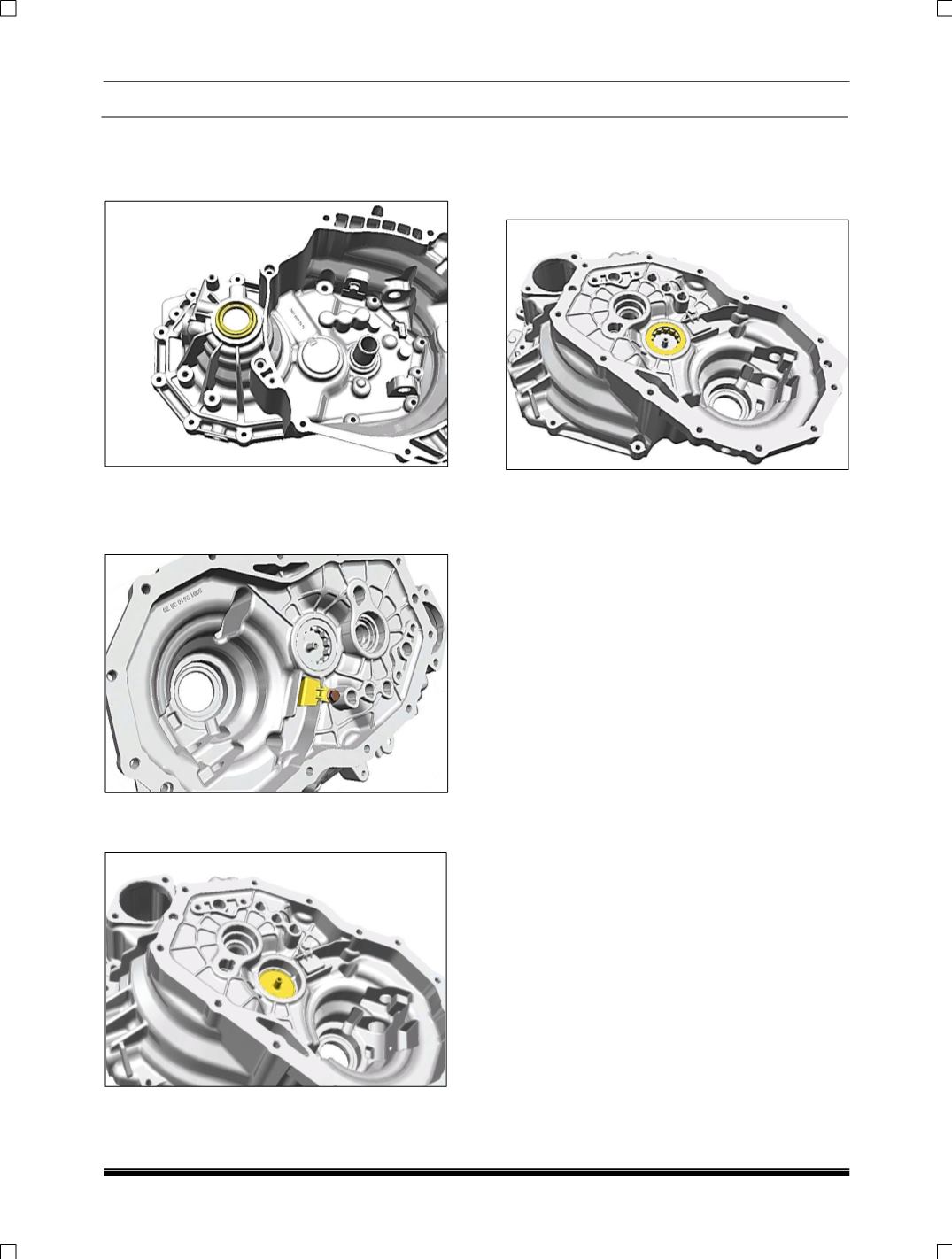

B. ASSEMBLY:

1. Fit the drive shaft oil seal using a suitable drift.

2. Fit the front half oil collector and tighten the M6

hex bolt to a torque of 0.4 ~ 0.45 Kg-m.

3. Place the oil collector.

4. Insert the Lay shaft cylinder bearing outer race

onto the front half using the tool 270258903504

(Drift for rear hub inner bearing outer race).

5. Screw the Idler level plug. Do not tighten it. Just

screw it on to the housing.
