TRANSAXLE (NANO AMT)

103

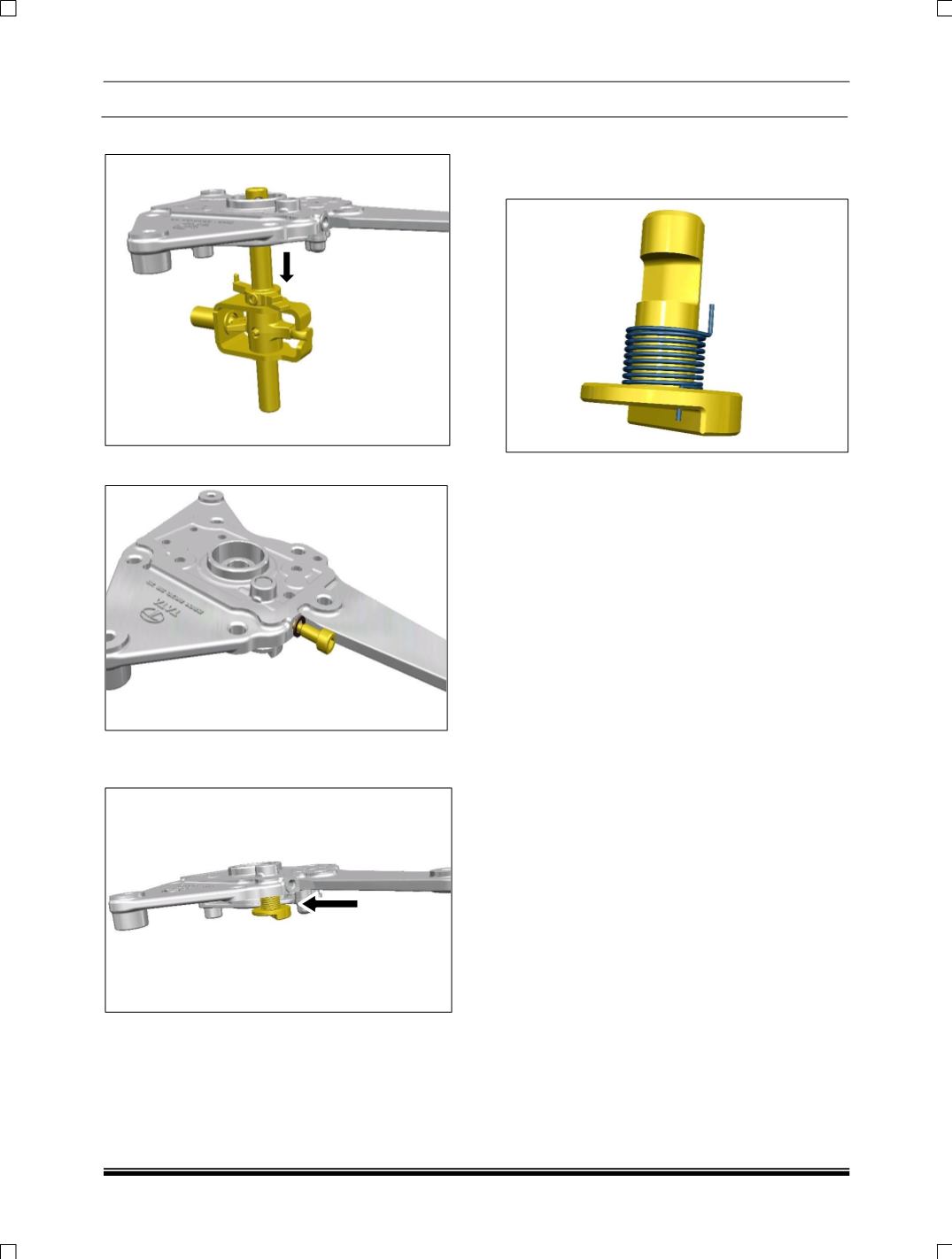

5. Separate the selector shifter shaft assembly.

6. Loosen and remove the inhibitor lock screw.

7. Separate the inhibitor moveable dog

assembly.

CAUTION:

The remaining assembly of top cover

sub assembly housing is consider as single

assembly and not serviceable at field.

NOTE:

In case of dismantle of top cover sub

assembly is replaceable with new one.

8. Inhibitor assembly.
