TRANSAXLE (NANO AMT)
111

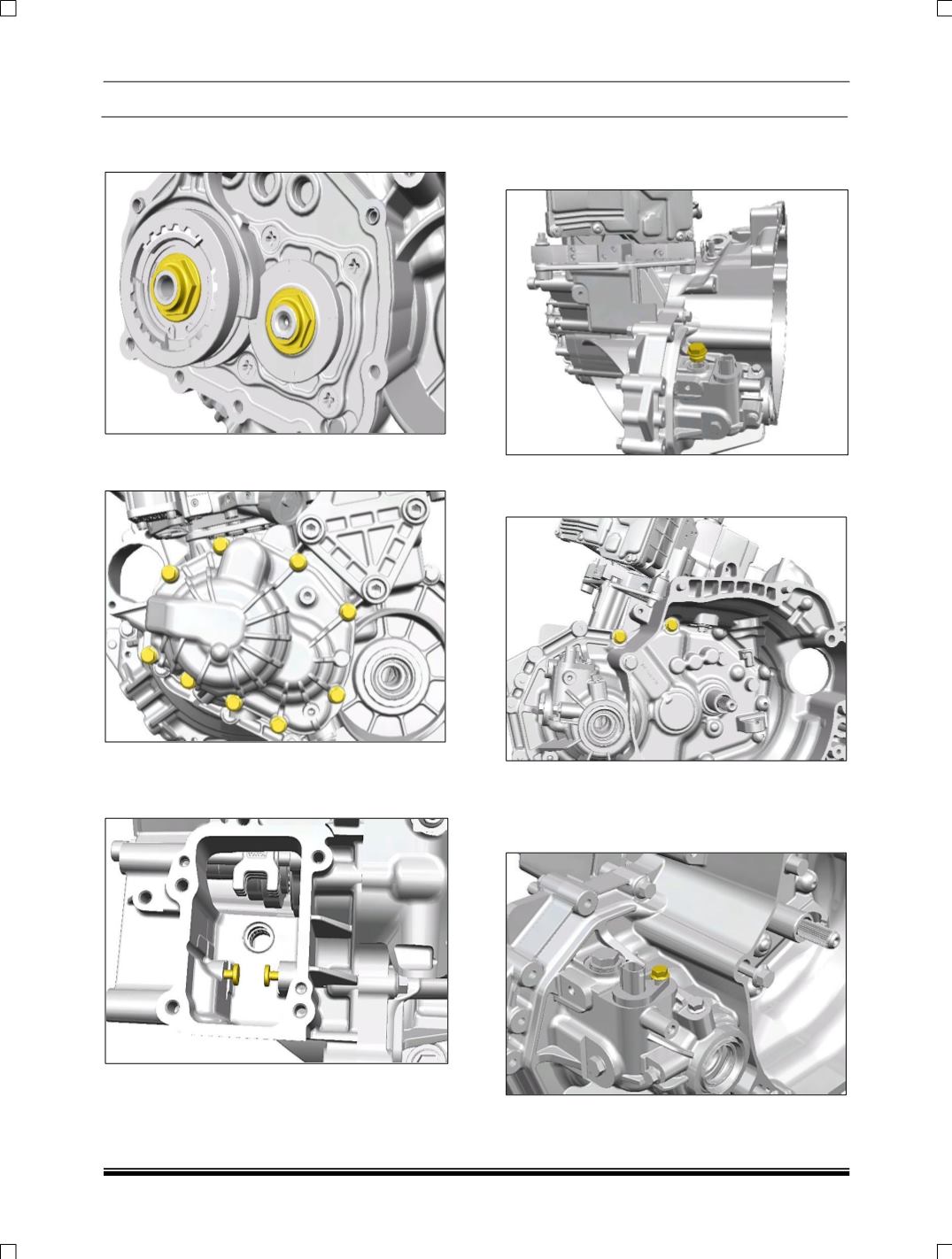

15. Tight lock nuts to both input and lay shaft
assembly, by locking input shaft by adaptor.
16. Apply liquid sealant and place the rear cover and
tighten the bolts to a torque of 2.1 ~2.5 Kgm.
17. Smear the interlock pin with grease and place it
in its slot. (Grease is applied to hold it in the
slot).
18. Apply the sealant and place the top cover on the
rear half housing.
19. Tighten the M 8 bolts to a torque of 2.1 ~ 2.5
Kgm.
20. Screw the filler plug.
21. Tighten the two M8 bolts on the front housing
side to a torque of 2.1 ~ 2.5 Kg-m.
22. Install the speed sensor and secure it by
tightening the M6 bolt to a torque of 1.1 kgm
such that there is no free movement of the
sensor.
