ELECTRICAL

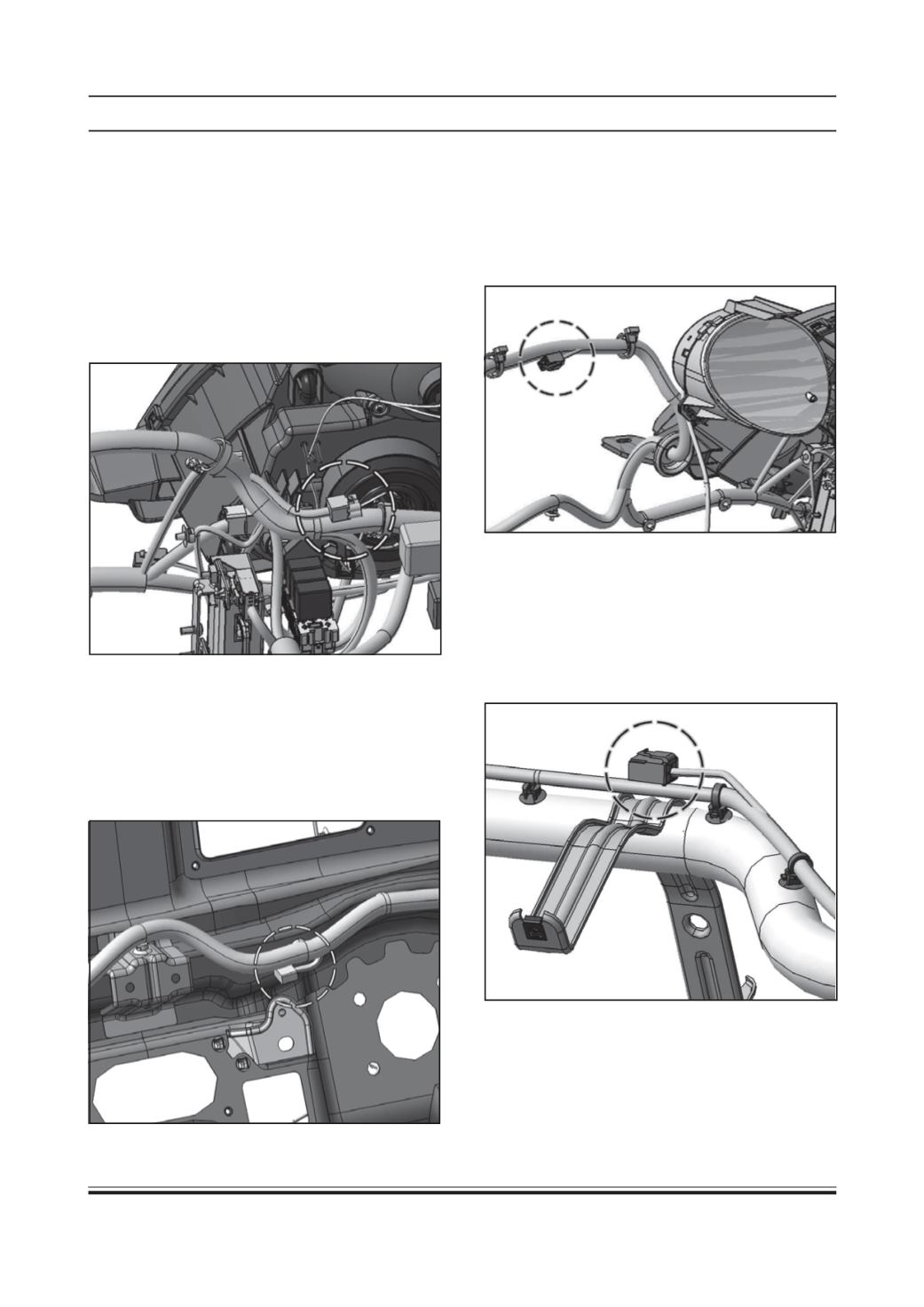

8.18. ACCESSORY CONNECTORES :
1) Keyless Entry/Alarm:
•
This connector is present near main fuse box .
•
It is provided for fitment of extra accessories at
front side in vehicle .
•
Optional taping provided for this connector in Main
WH.
•
This connector has provided for Nano STD, CX &
LX version.
2) Keyless Entry/Alarm Continued (Bonnet
Switch Connector):
•
This connector is present near Spare wheel.
•
Optional taping provided for this connector in Main
WH.
•
This connector has provided for Nano STD, CX &
LX version.
3) Fog Lamp Provision:
•
This connector is present near Instrument cluster.
•
It is provided for fitment of Fog lamps for STD &
CX version in vehicle
•
Optional taping provided for this connector in Main
WH.
4) Music SystemConnector:
•
This connector is present near CCB for STD
version (Refer image 4.1).
•
This connector is present near AC connector for
CX & LX versions (Refer image 4.2).
•
Optional taping provided for these connectors in
Cockpit WH.
