ELECTRICAL
STEERING LOCK CUM IGNITION SWITCH
FUNCTIONS
It has four Functions.
•
LOCK - Steering Locked
•
ACC - All electrically Accessories ‘ON’.
•
ON - ‘KEY IN’ position
•
START - Engine crank
LOCATION:
The ignition switch is on the right side of
the Steering column
TORQUE VALUE TABLE
Application
Torque Value (Nm)
Hex bolt for mounting SLCIS on steering column
1.3 / 1.5

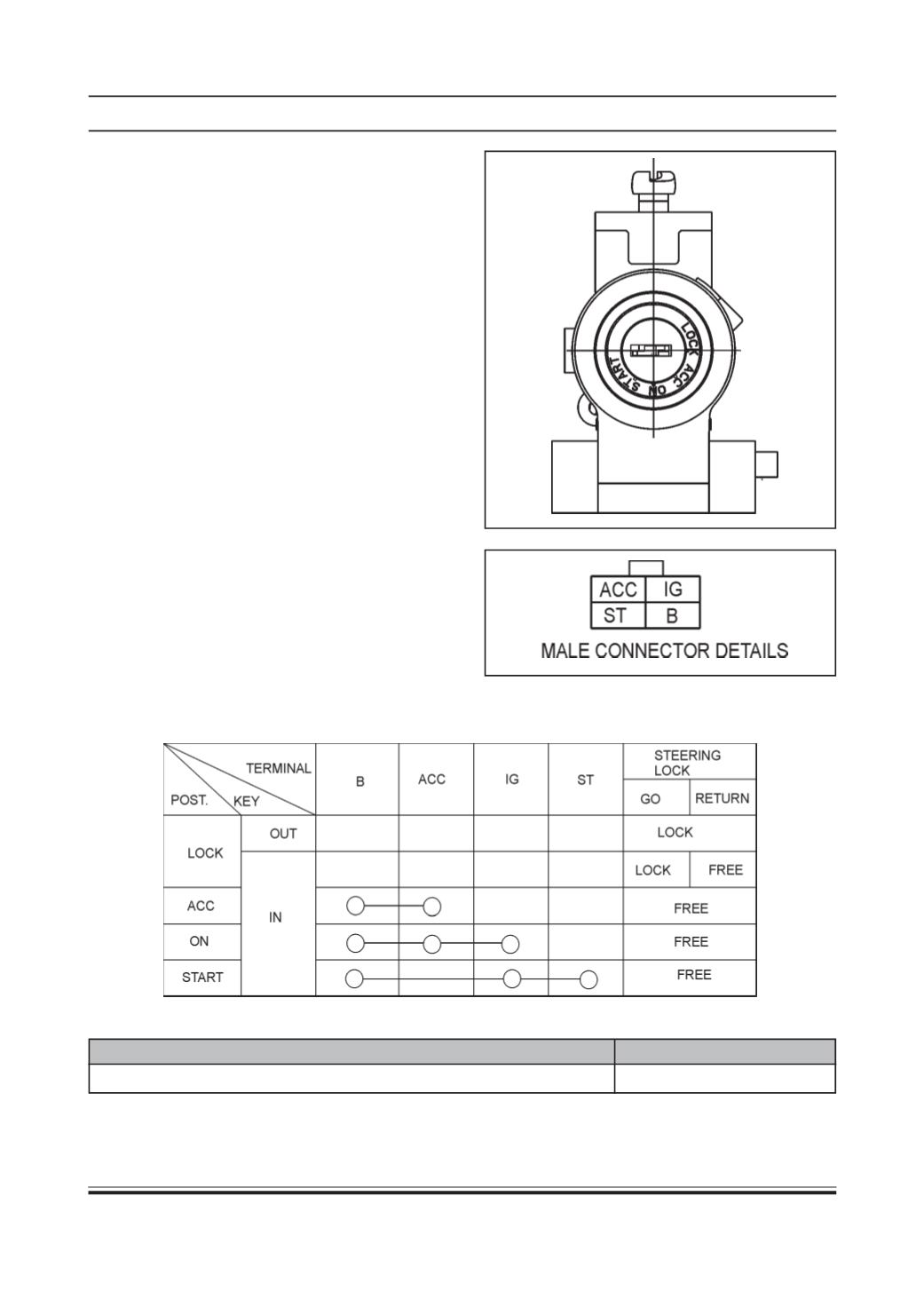

CONNECTIONDETAILS
For connector pin details refer below table :
