ELECTRICAL
3. Disconnect electrical connection
4. Take out the door switch.

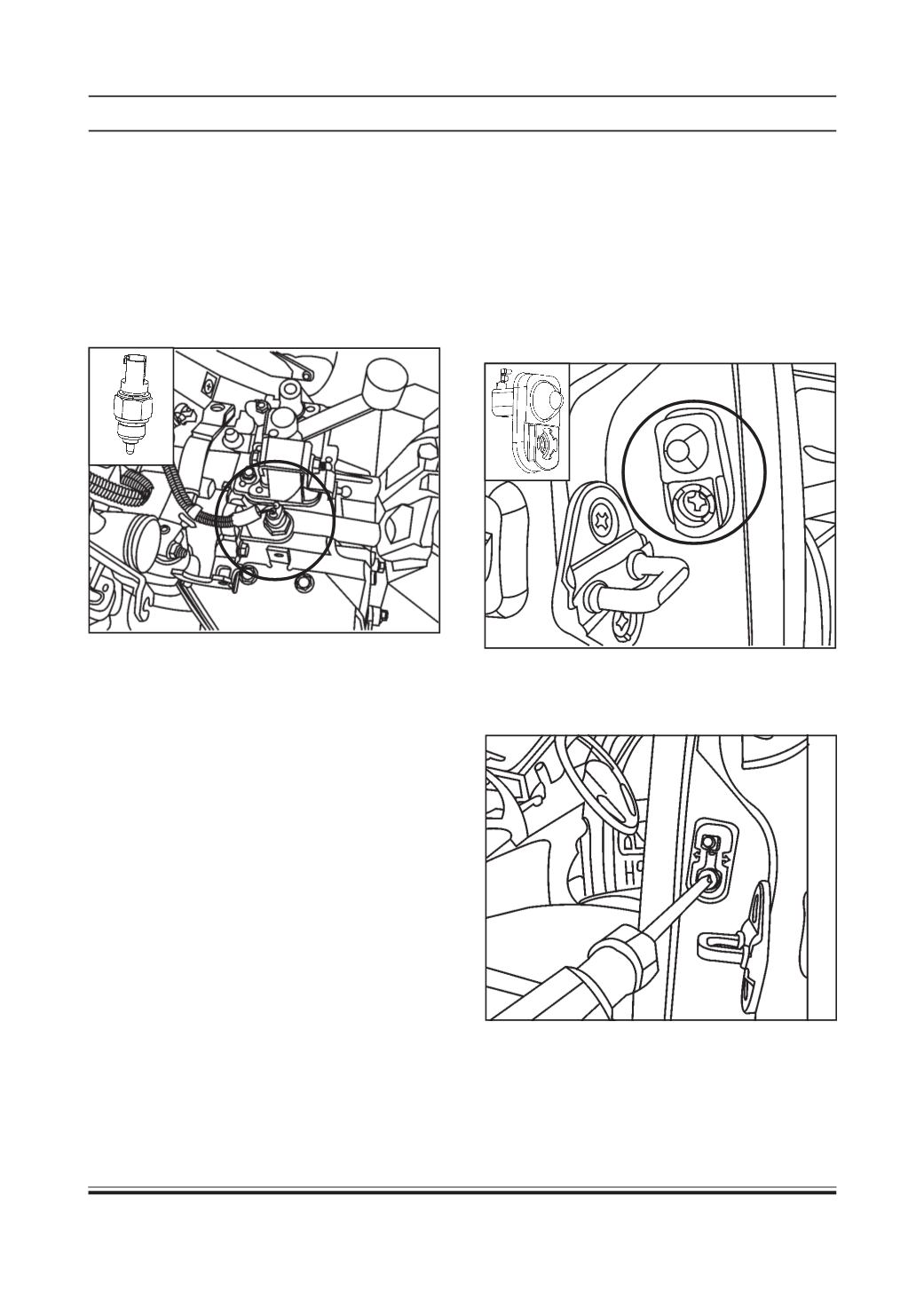

REVERSE LAMP SWITCH
FUNCTION
An open switch that prevents voltage from being
applied to the backup lights until the vehicle is put in
reverse. Putting the vehicle in reverse closes the
contact and applies power to the tail lamp lights.
LOCATION
It is located on transaxle rear housing
REMOVAL
1. Remove the tail gate. For “Removal & refitment of
tail gate” refer Body group.
2. Remove the Rear shelf. For “Removal & refitment
of rear shelf” refer Body group.
3. Disconnect the electrical connection.
4. Loosen the locking nut & take out the switch.
REFITMENT
1. Tighten the locking nut.
2. Connect the electrical connection
3. Fit the rear shelf& tail gate.
DOOR SWITCH
FUNCTION:
Door switch which is switched on or off in response to
opening and closing of doors, an interior dome lamp
which is turned on or off in response to the door switch
or selectively turned on or off by manual
operation.
LOCATION
It is located on ‘B’ pillar.
REMOVAL
1. Remove the rubber grommet.
2. Remove the screw
