REFITMENT :

1. Connect all electrical connectors of combi switch

assembly.

2. Fit combi switch assembly on steering column

are and tighten the screw.

NOTE :

Two lock ribs are provided on the steering

column, which will fit into the combi switch slots, to

avoid the rotation of switch & ensure proper fitment

3. Fit both steering column panels/nacells.

4. Fit steering wheel.

NOTE: Ensure that side levers are fitted in their

respective place and correct connectors are connected.

CAUTION: When tightening upper tray cover, ensure

that combination switch wires are not caught between

the covers.

STALKREPLACEMENT PROCEDURE

1. Remove the combi-switch. Refer removal &

refitment of combi –switch.

2. Remove the 2 screws & pull out the stalk.

3. Replace with new one.

4. Follow the step in reverse for refitment of stalk.

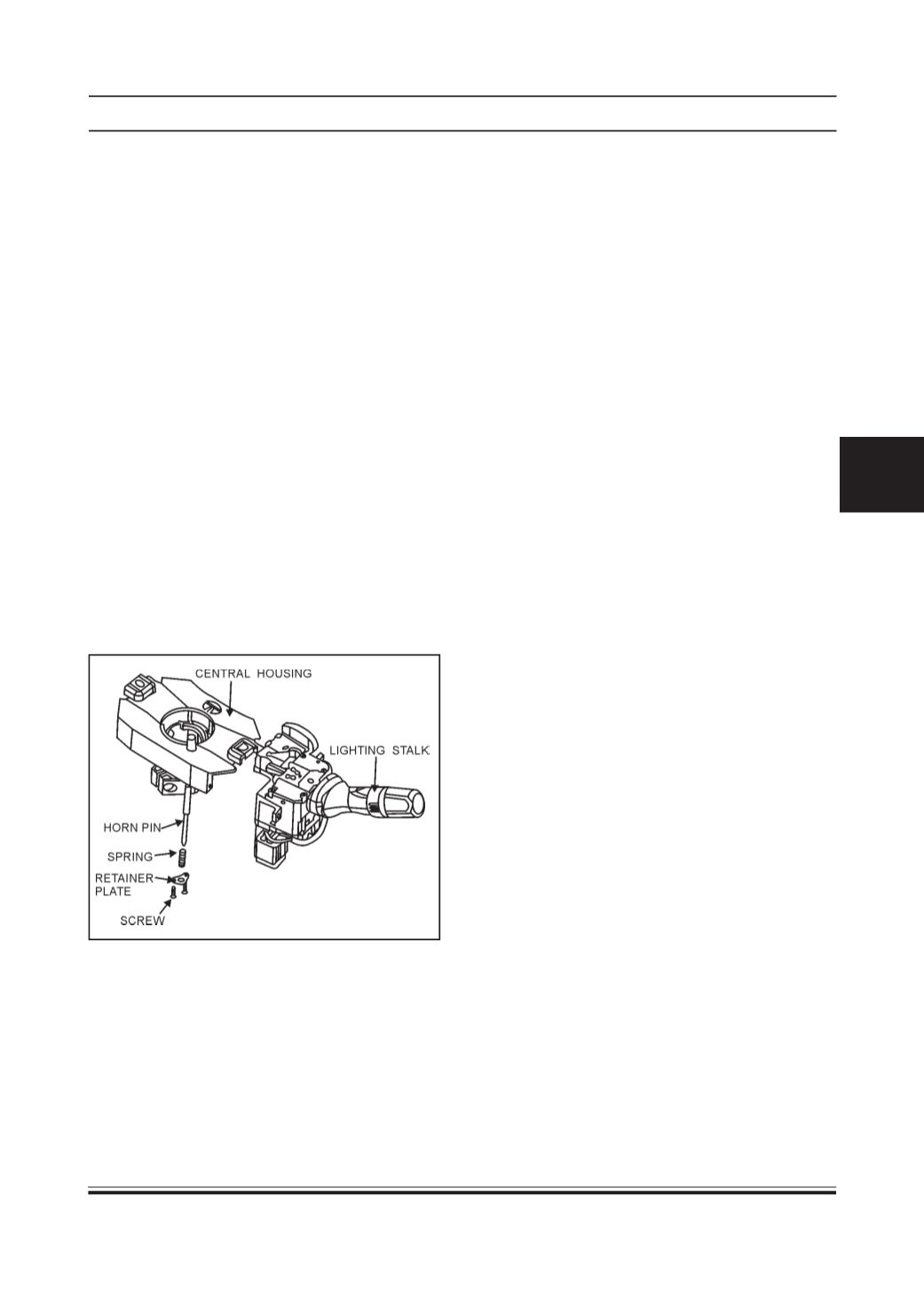

HORN PINREPLACEMENT:

1. Remove two screws of Horn locking pin from

Central Housing.

2. Remove spring alongwithworn out pin and replace

NewHorn pin with the same spring, Retainer plate

& screws.

3. Apply Electrical grease in the grease pocket of

Horn pin.

4. Assemble the socket terminal with horn pin.
