NANO

386

DRIVETRAIN

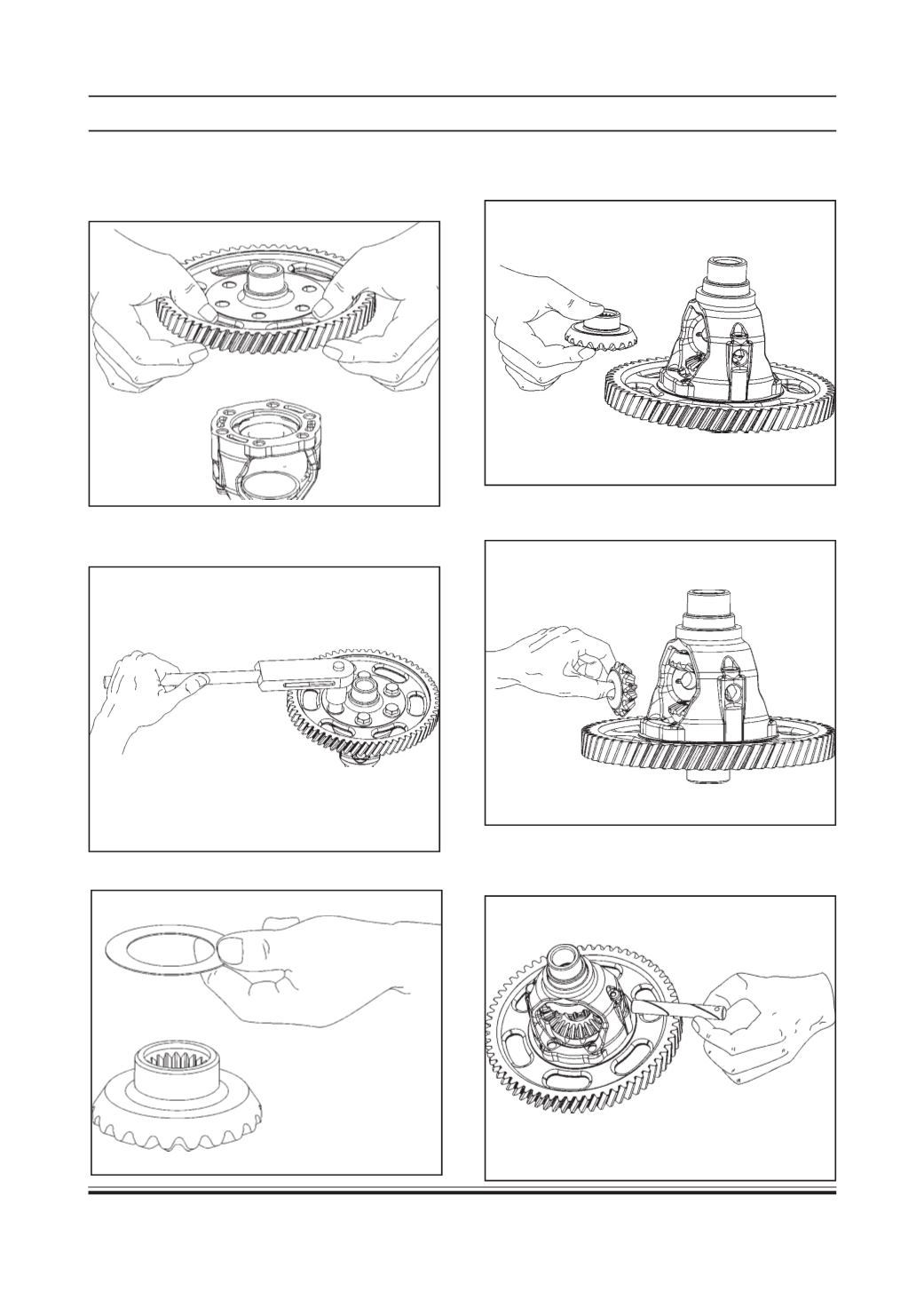

5. Insert the two bevel pinions on either sides of the

cage.

6. Insert the spider through the cage and then through

the bevel pinions. Make sure that the slot in the

spider is aligned with the slot in the cage.

B. ASSEMBLY

1. Hold the differential cage in a vice and place the

final gear drive on it aligning the bolt holes.

2. Apply thread lock gum to the bolts and tighten

them to a torque of 6.9 Kgm.

3. Place the washer on the bevel gear.

4. Place the two bevel gears with washers in the

differential cage.
