NANO

DRIVETRAIN

387

DRIVETRAIN

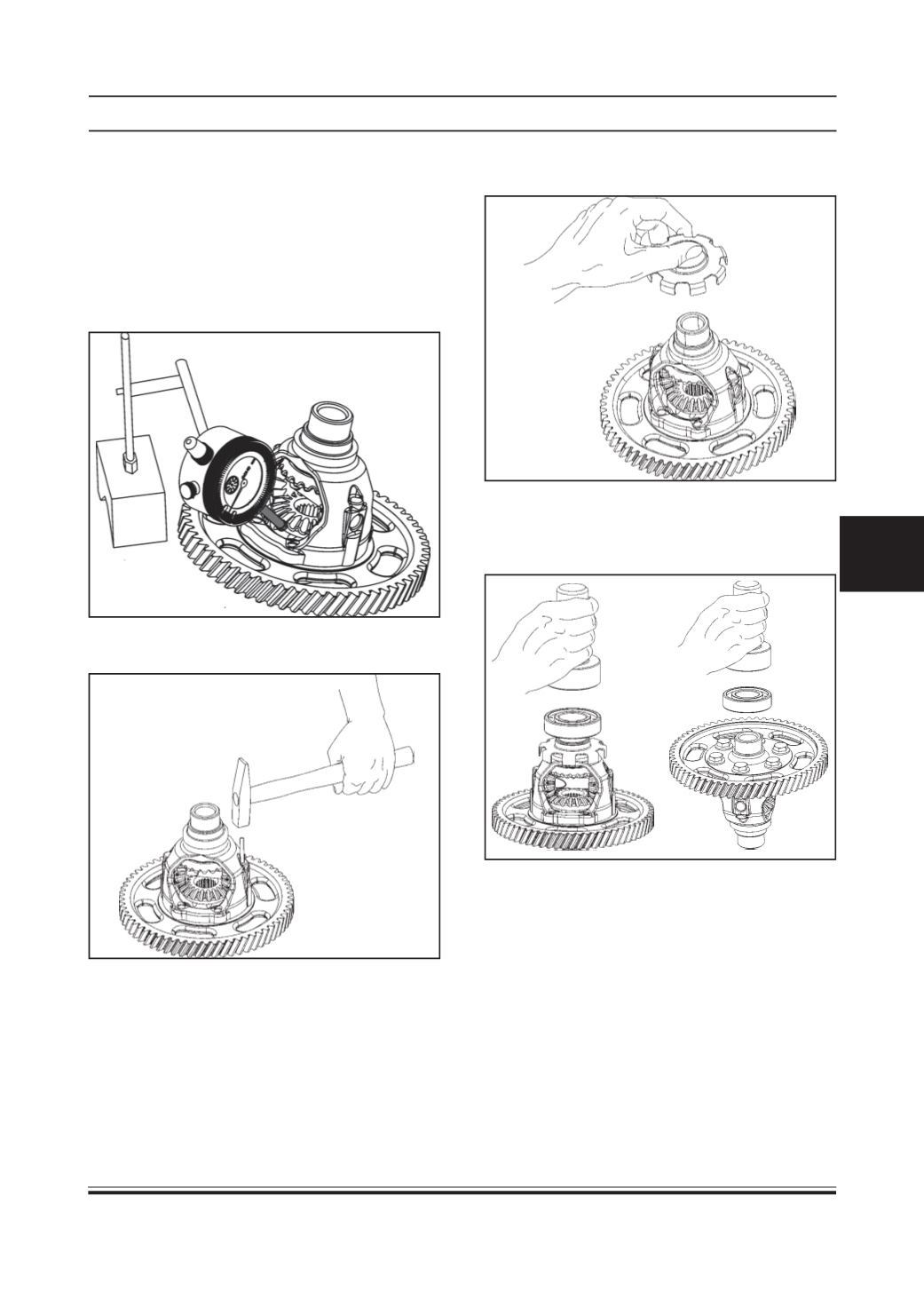

7. Measure the backlash using a dial gauge; it should

be within 0.0 ~ 0.1 mm. Backlash can be adjusted

varying the bevel gear washers.

8. Insert the dowel sleeve, to lock the spider to the

cage.

Note:

•

Bevel gears and bevel pinions are interchangeable

as a set only and not individually.

•

Make sure that the Bevel gears and pinions are

rotating.

9. Place the speed gear on the cage, such that the

teeth face towards differential gear.

10. Fit the ball bearings on both ends using Tool no.

2834 5890 26 05 DRIFT FOR FITMENT OF

DIFFERENTIAL BEARING, Make sure that the

stamped side should project upwards.
