NANO

388

DRIVETRAIN

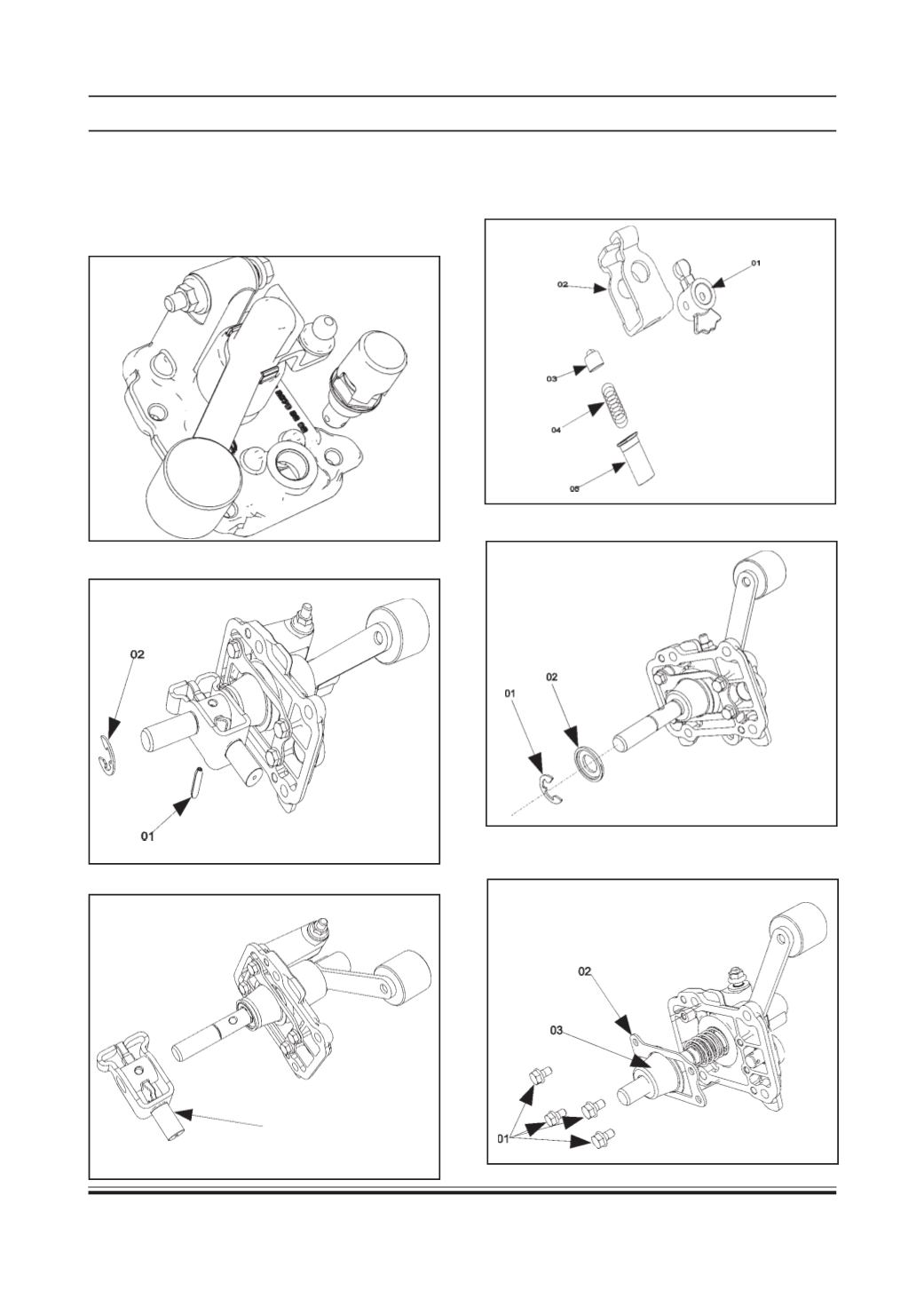

3. Separate out the interlock assembly.

4. Separate the finger (01) from the interlock piece

(02) and remove the spherical detent (03), spring

(04) and barrel (05).

5. Remove the circlip (01) and the spacer (02).

6. Unscrew the four bolts (01) and remove the top

cover plate (02) along with the spring cup (02).

REAR HALF HOUSING TOP COVER

ASSEMBLY

A. DISMANTLING

1. Unscrew the filler cap.

2. Remove the circlip (02) and the dowel pin (01).
