DRIVETRAIN

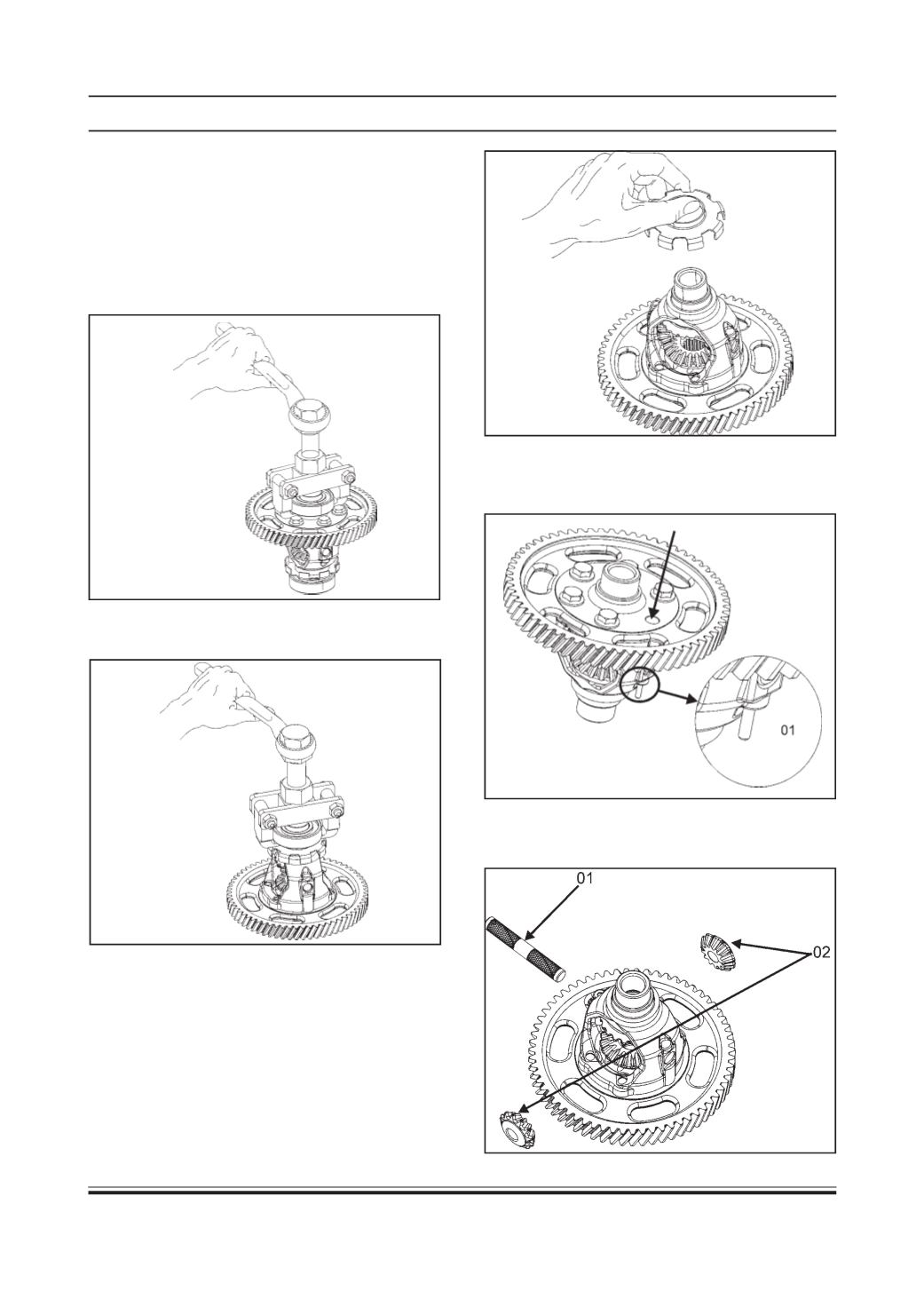

6. Take out the spider (01) from the differential
housing and remove the side bevel pinion gears
(02) from differential housing.
DIFFERENTIAL ASSEMBLY
A. DISMANTLING
1. Fix the differential in the bench vice.
2. Remove the rear half housing side bearing ball
bearing using the tool. 2834 5890 26 06 PULLER
FOR REMOVALOF DIFFERENTIAL BRG.
3. Similarly remove the front half side bearing using
the same tool.
4. Take out the vehicle speed detect gear. Do not
damage the speed gear, if damaged, replace it
while refitting.
5. Unscrew and remove the housing bolt below the
dowel pin, remove the dowel, using the opening
made available due to removal of the bolt.
