ENGINE 273 MPFI
267
ENGINE
•
Disconnect the line between fuel rail and fuel filter.
•
Unscrew and remove the two hexagonal mounting
bolts of fuel rail on cylinder head.
•
Take out the fuel rail along with injectors.
Inspection of fuel rail and fuel injectors
•
Visually inspect the fuel rail and injectors for
damage or leakage. Replace it if found damage.
Refitment Procedure :
•
Tighten the two hexagonal mounting bolts of fuel
rail on cylinder head.
•
Reconnect the line between fuel rail and fuel filter.
•
Connect the electrical connectors of both the
injectors.
•
Connect the battery negative terminal.

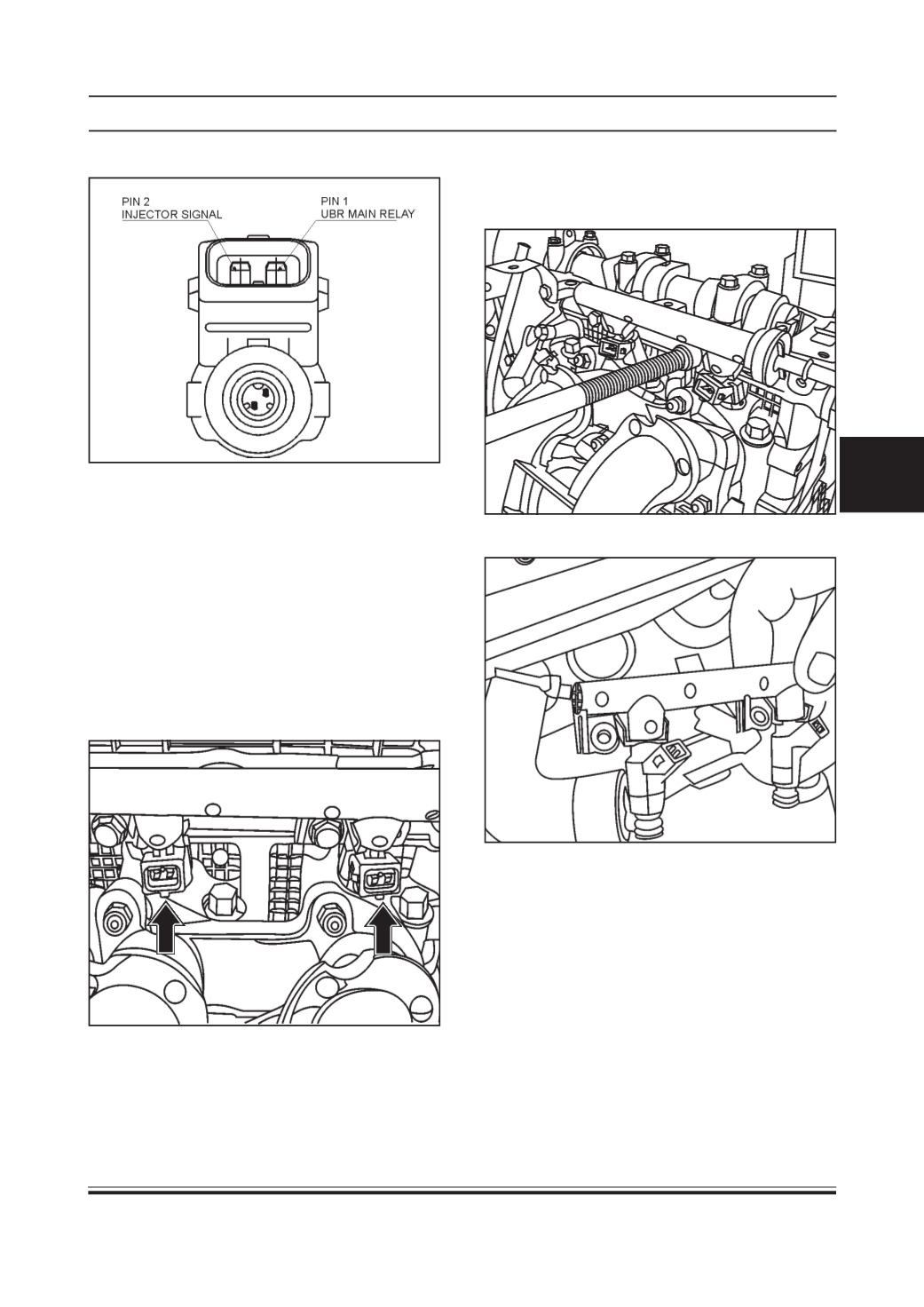

Pin Configuration
Stand Alone Diagnosis
Refer 3.11.5 Trouble Shooting and Diagnosis.
SystemDiagnosis
•
Use TATAdiagnostic Tool.
On vehicle Removal, Inspection & Refitment
Procedure
Removal Procedure :
•
Disconnect the battery negative terminal.
•
Disconnect the electrical connectors of both the
injectors.
•
Release the fuel line pressure ( Refer Fuel System)
•
Collect the fuel in a separate container.
