215 / 1904
ENGINE 273 MPFI
209
ENGINE
•
Check for the variation in the resistance value by moving the float arm of new Level Sensor Assembly between
empty and full positions with the assistance of multimeter by connecting it to S- and S+ terminals of 4 pin
connector.

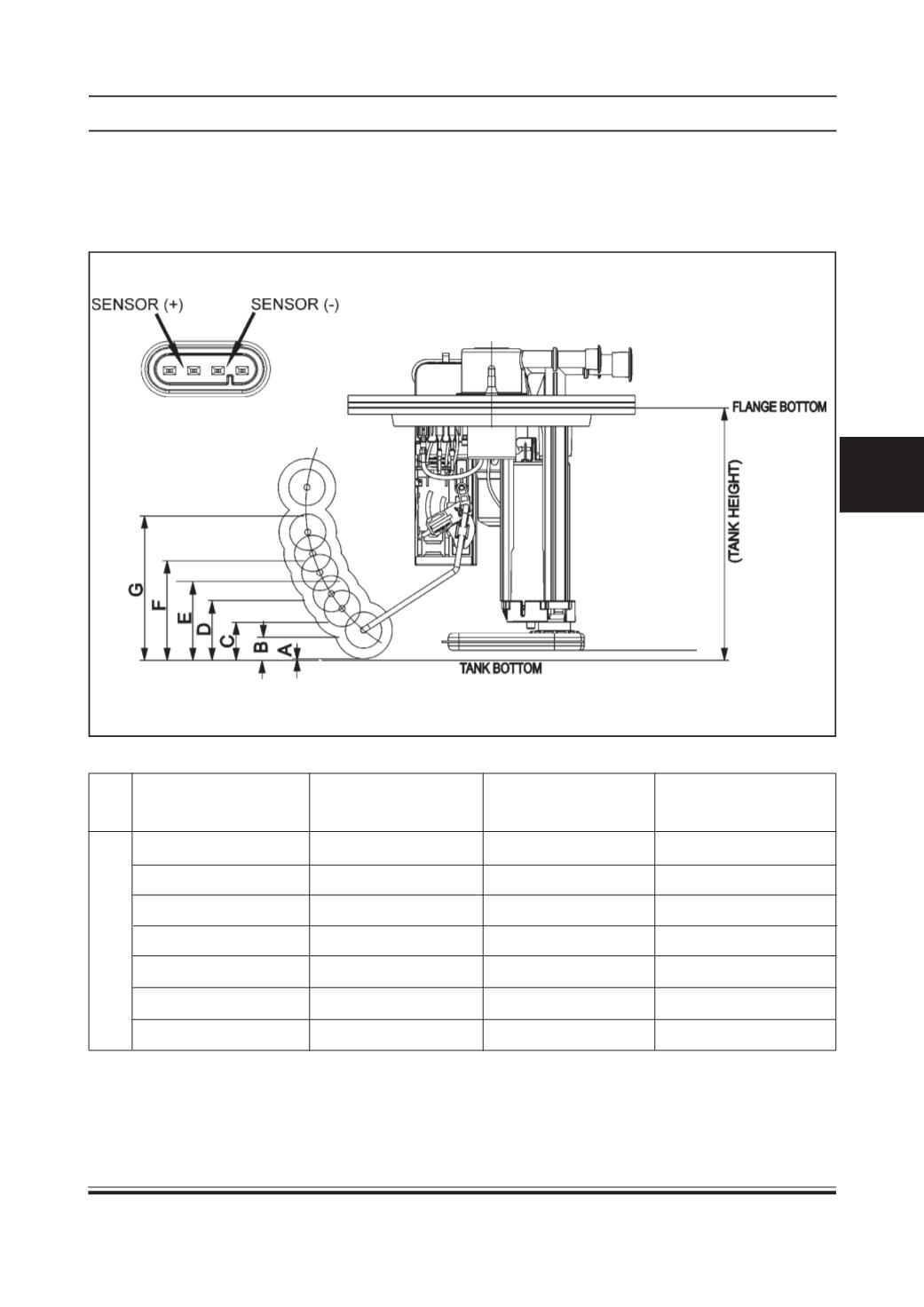

FUEL LEVEL SENSOR UNIT (FUEL TANK UNIT) CHECKING PROCEDURE
G
FULL (BAR6)
68 ± 2
45 ± 2
F
FULL (BAR5)
46.9 ± 2
59 ± 2
E
FULL (BAR4)
36.9 ± 2
67 ± 2
D
FULL (BAR3)
27.9 ± 2
75 ± 2
C
FULL (BAR2)
17.9 ± 2
102 ± 2
B
FULL (BAR1)
10.9 ± 2
123 ± 2
A
EMPTY (E)
2.7 ± 2
150 ± 2
F
L
O
A
T
L
E
V
E
L
CALIBRATION
HEIGHTS (mm)
RESISTANCE
(Ohms)
INDICATIONON
FUELGAUGE
FLOAT LEVEL FROM
TANKBOTTOM
