NANO

ENGINE 273 MPFI

213

ENGINE

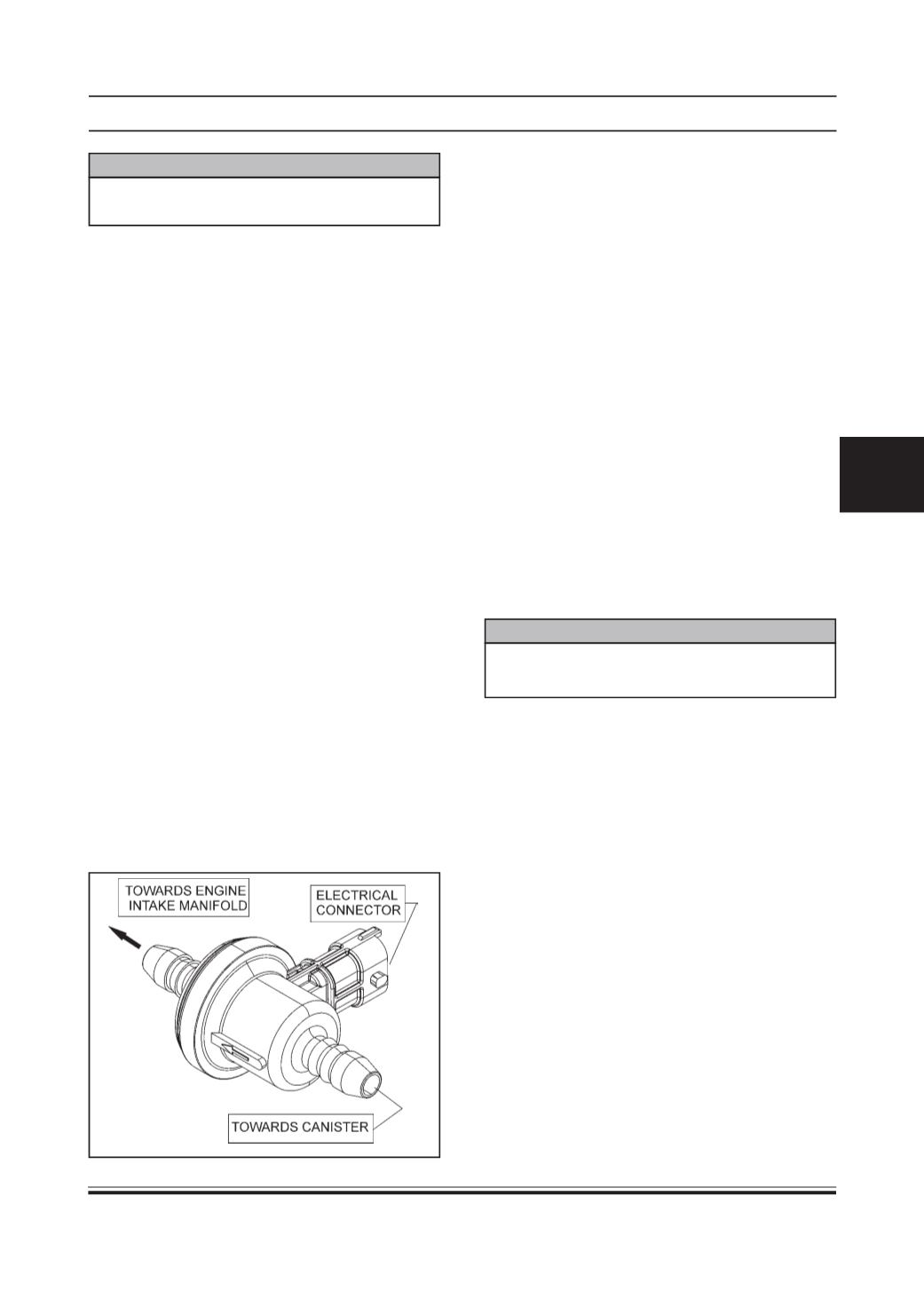

Canister Purge Valve

The canister purge valve is controlled by engine man-

agement system (EMS). The purging of canister takes

place because of pressure differential between mani-

fold vacuum and atmosphere. Fuel vapours are drawn

into the intake manifold through canister purge valve

operated by ECU.

Inspection:

1. Remove fuel filler cap.

2. If check result is not satisfactory, check for vaccum

hose, purge valve, wire harness

Check carbon canister for signs of damage and de-

fects.

1. If defective, replace canister.

2. If OK, go to step 3

3. Warm up engine to normal operating temperature.

4. Disconnect “purge” end hose (from the canister to

purge valve)

5. a) Place finger against the end of disconnected

hoses. Check that vaccum is felt there when en-

gine is running at idle speed.

b) Also check that vaccum is felt when engine

speed is increased to higher than 2000/3000 rpm.

6. Start engine and run it at idle speed. Disconnect

vaccum hose (from canister purge valve to T Con-

nector). Block the T connector port fromwhere the

hose has been removed, with finger placed against

the hose disconnected. Check that vaccum is ap-

plied. If it is not applied, clean vaccum passage by

blowing compressed air.

Removal:

1. Disconnect hose fromcanister purge valve to T con-

nector (fuel rail side).

2. Disconnect the hose from canister to purge valve.

Inspection:

1. With ignition switch OFF, disconnect connectors

from canister purge valve.

2. Check resistance between two terminals of canis-

ter purge valve. It should be 26 + 4 Ohm at 20°C. If

resistance is as specified, proceed to next opera-

tion, check. If not, replace.

3. Blow air into hose removed fromT connector.

4. Verify that no air flows through the valve when the

engine is stopped with purge valve connectors dis-

connected.

5. Air will pass through freely when the 12V battery

voltage is applied to valve connector. It indicates

that the valve is functioning properly. If no air flows,

replace the valve.

6. Reinstall valve connector.

7. Reconnect vacuum hoses.

WARNING

Do not suck air through purge valve. Fuel vapour

inside valve is harmful.

WARNING

Do not suck air through canister port. Fuel vapours

inside canister is harmful.
