BRAKES

41

BRAKES

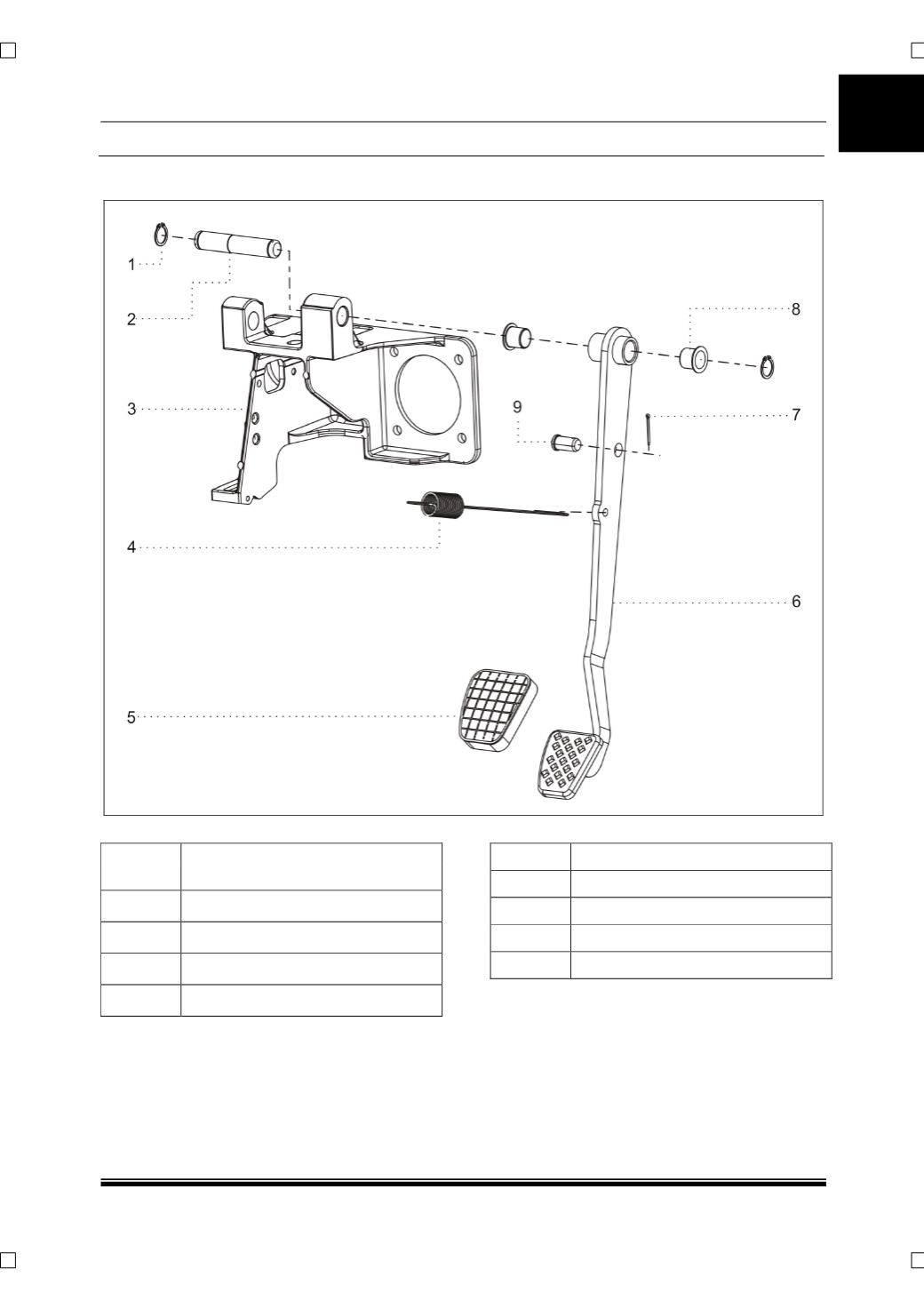

D. BRAKE PEDAL

SR. NO DESCRIPTION

01

External Circlip 16X1N

02

Pivot Pin

03

Control Mounting Bracket

04

Return Spring

05

Rubber Cover (Brake Pedal)

06

Brake Pedal Lever

07

Split Pin

08

Pivot Bush

09

Pin
