BRAKES

38

PARKING BRAKE CABLE

REMOVAL

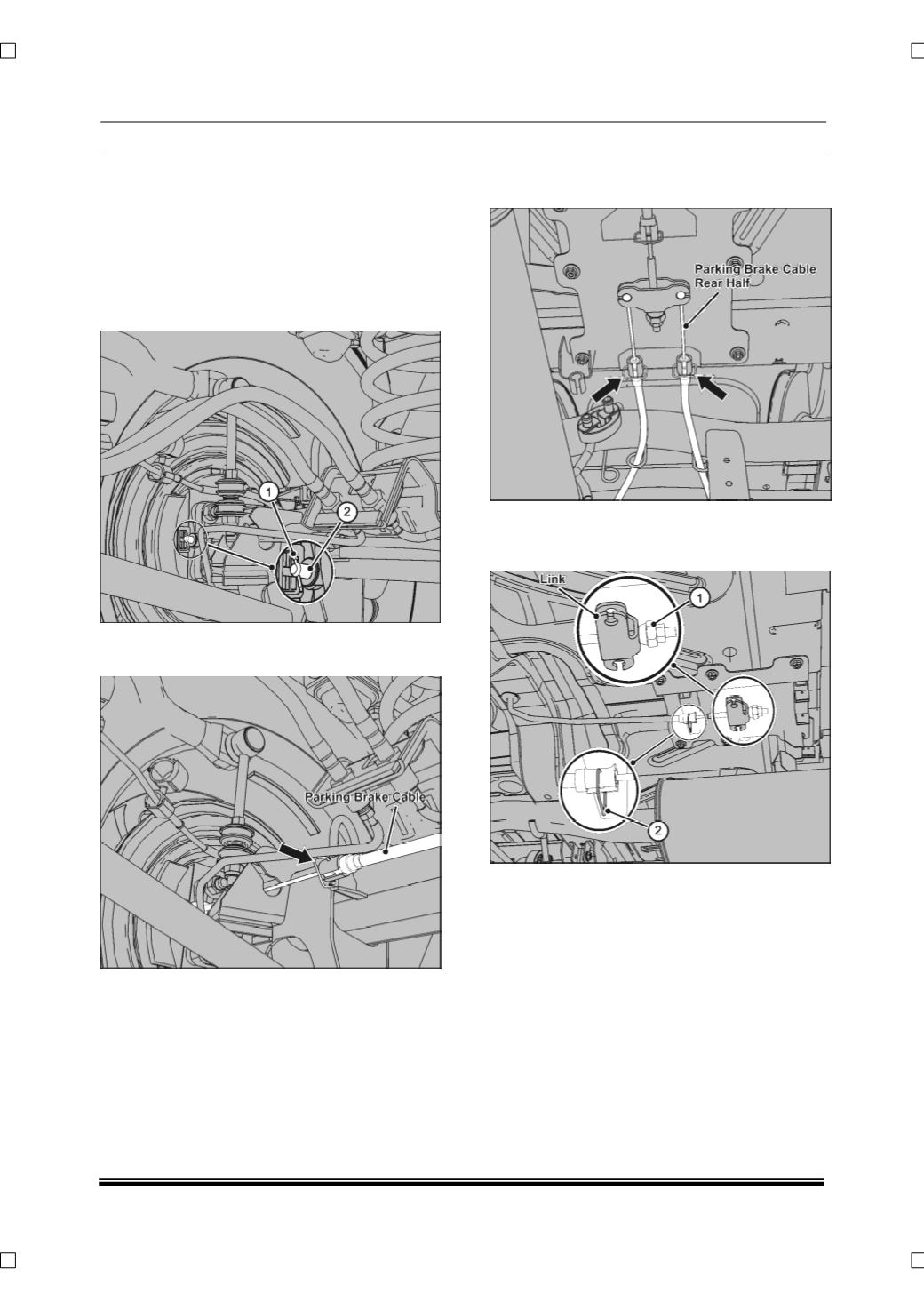

1. Place the vehicle on two post lift.

2. Ensure parking brakes in released condition.

3. Take out the split pin

(1)

and remove the clevis

pin

(2)

from the rear wheel end. Follow the

same procedure for other side also.

4. Remove the clip and separate the parking

brakes cable from the rear axle.

5. Take out clips and disconnect the parking

brake cable rear half from the connector link.

6. Loosen and remove the lock nut, spherical nut

(1) and remove the clip (2) and free the front

half of the parking cable from the link.

7. To disconnect the front cable from the hand

brake side remove the floor console.

(For

procedure refer Floor console removal

procedure in Body section.)
