BRAKES
32

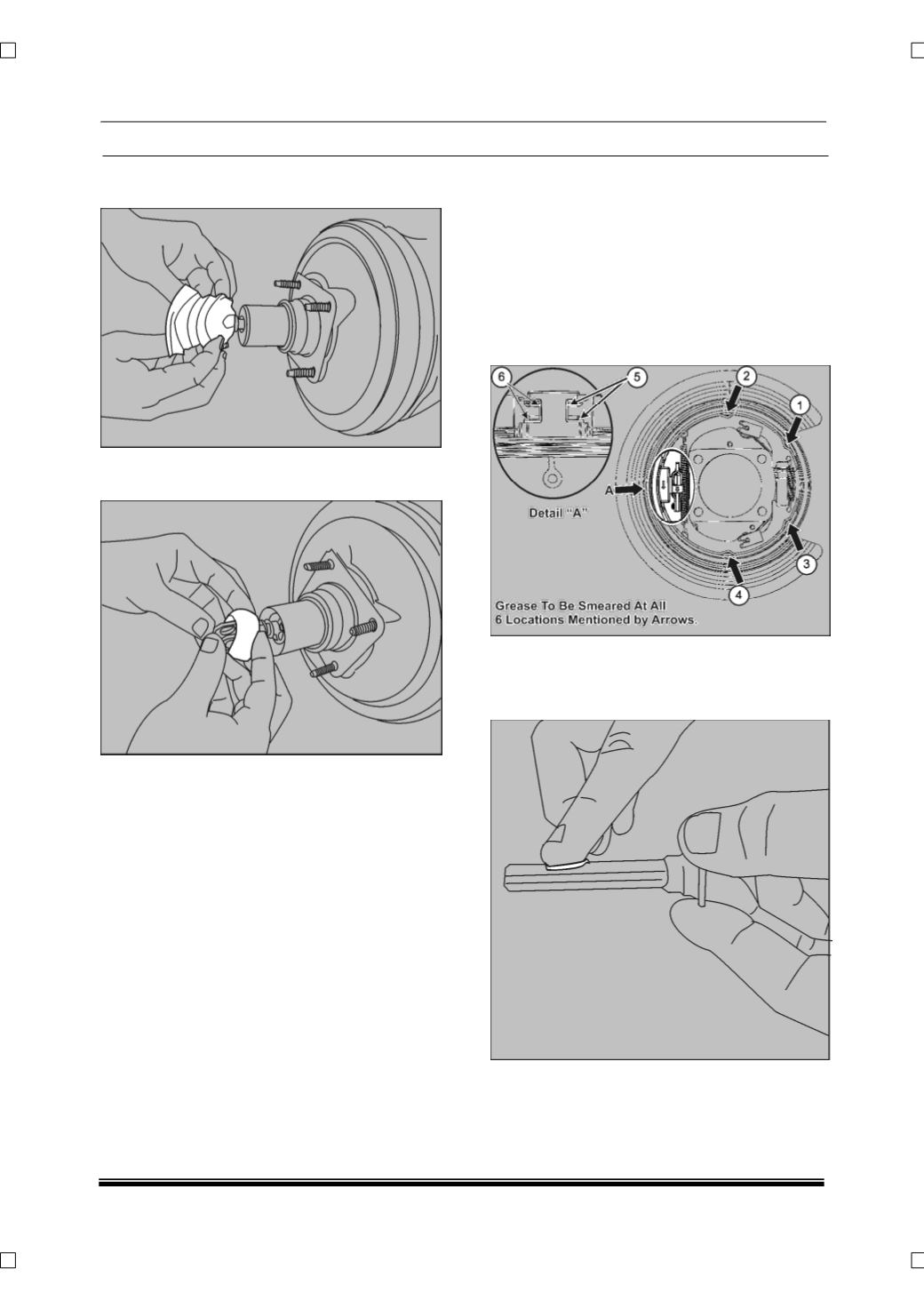

3. Pull out and remove the excluder from the
booster clevis.
4. Remove the filter cup from the booster
assembly.
INSPECTION
Check the external filter, excluder and filter cup for
any cut, damage etc. If it is blocked do not clean
and reuse, replace it with new one.
FITMENT
For fitment follow reverse procedure of removal.
H. GREASING
DRUM IN HAT SHOE LINING GREASING
1 Remove the rear brake disc.
(For procedure
refer brake disc removal process in this
section.)
2 A thin film of “Lithium Based Grease” to be
smeared at below given locations.
3 Clean the location where grease to be applied.
Keep grease away from shoe lining.
CALIPER GREASING
Loosen and remove the sliding pin and grease
them with the special grease which is provided for
brakes
.
NOTE
Check the sliding pin boot for any cut or damages.
If any defect is found replace the boot.
