TRANSFER CASE
40

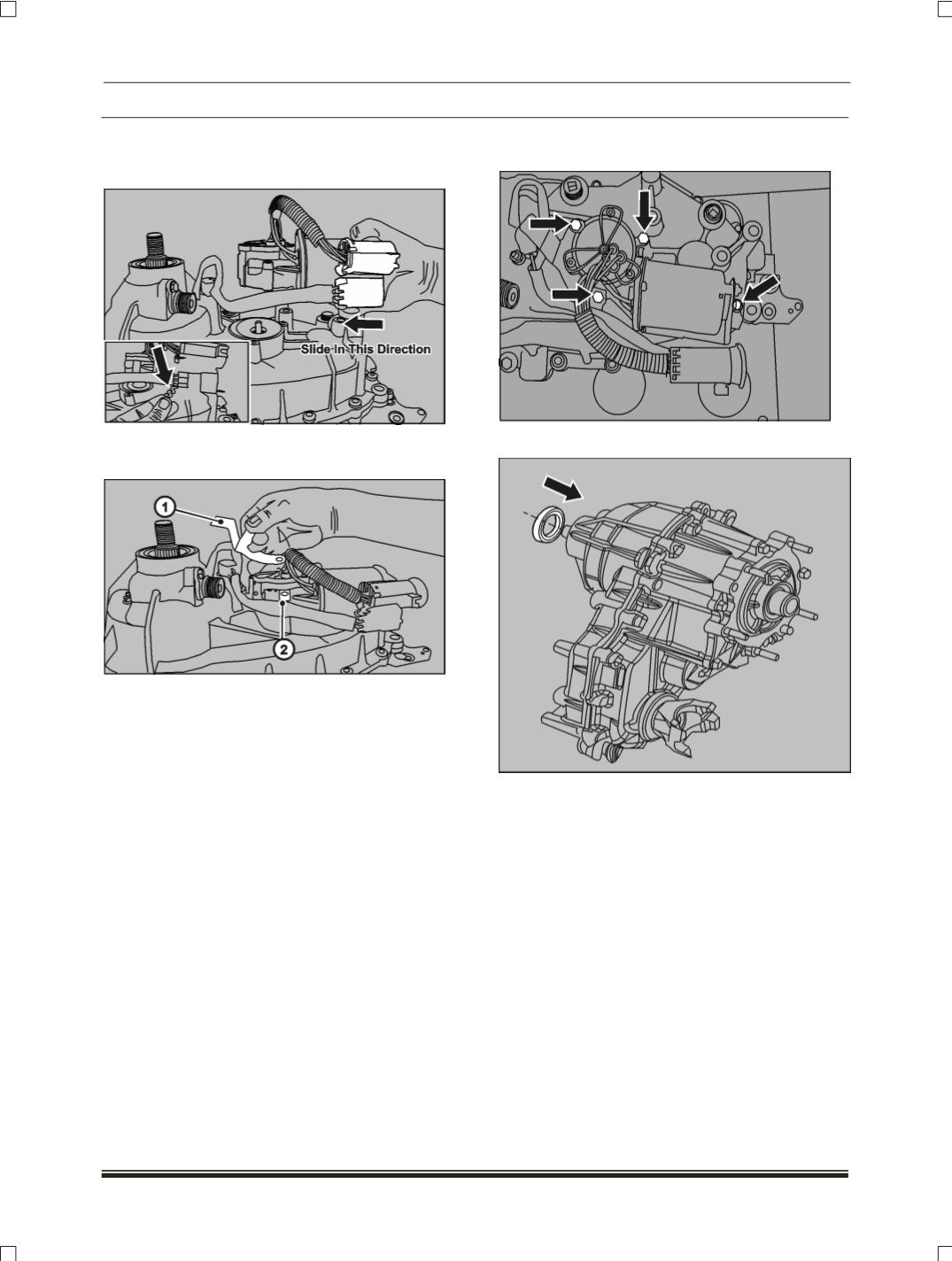

9. Slide in the wiring harness connector in the
slot given on the motor and fix the wiring
harness clamp at connector end.
10. Properly place the .mounting bracket
(1)
and
“J” bracket of wiring harness
(2).
11. Mount the electric shift motor on the bracket
and tighten the mounting bolts of the same.
12. Press the new oil seal into the cover assembly.
