E. CHAIN DRIVE

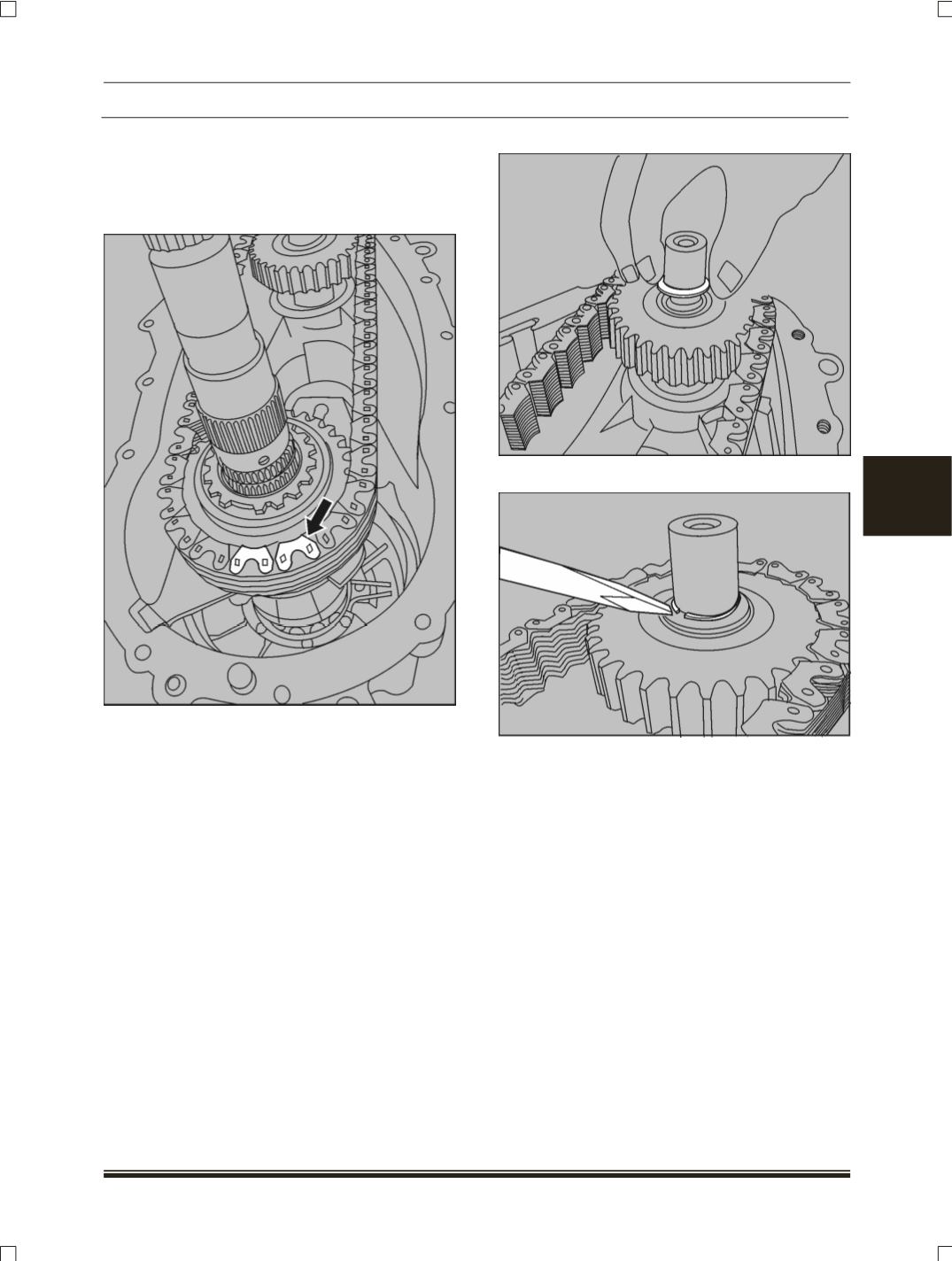

1. Holding each sprocket with drive chain tight
and parallel with transfer case, install the drive
chain assembly with sprockets to the output
shafts.
NOTE
The chain lock should face towards the upward
direction.
The groove provided on the sprocket of the
lower output shaft should be in upward
direction.
2. Rotate the driven sprocket slightly to engage
splines on the front output shaft.
3. Install the spacer to the front output shaft
4. Insert snap ring into the groove over spacer.
