TRANSFER CASE
39
TANSFER CASE

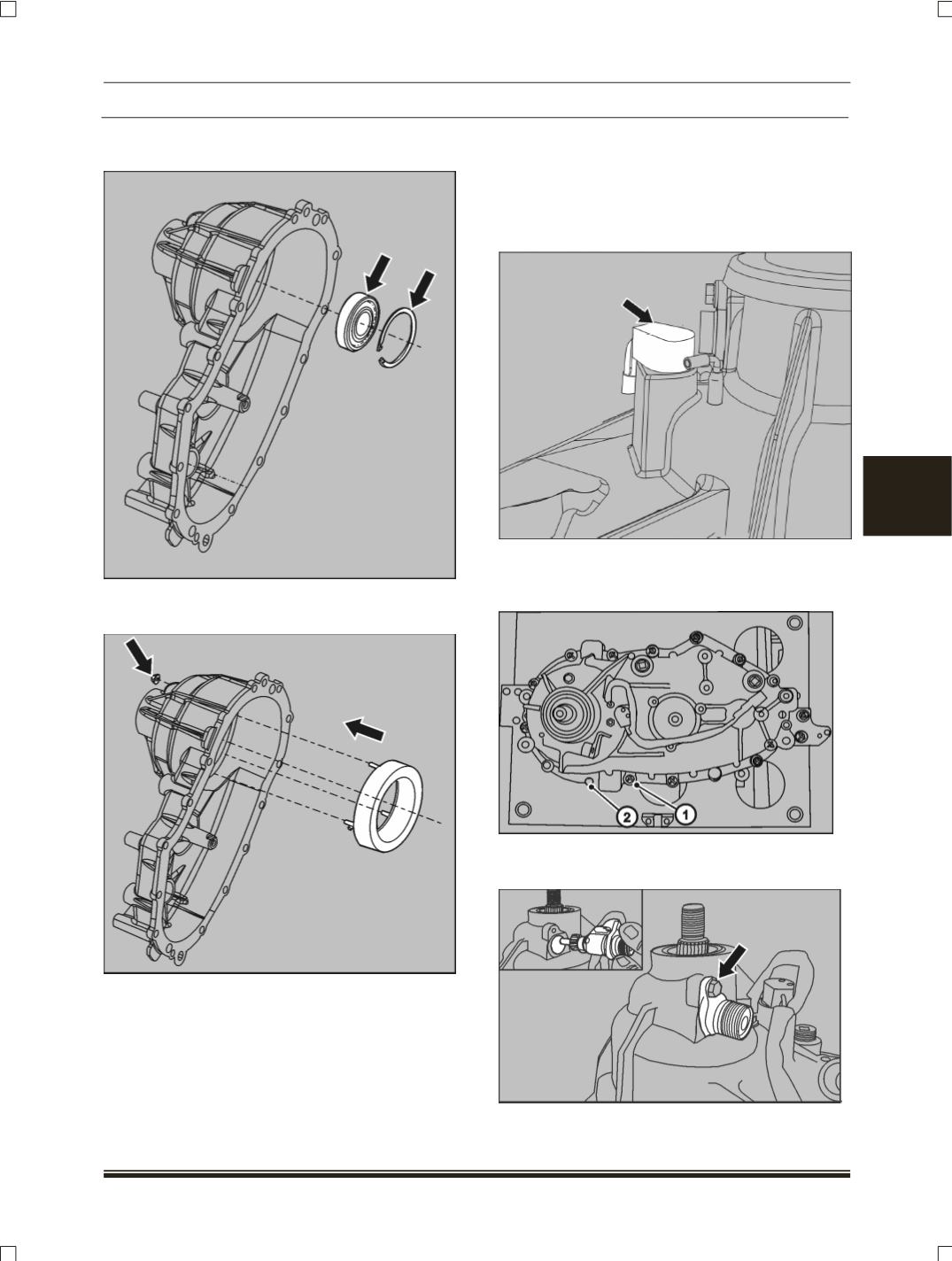

3. Press the ball bearing into cover and install
snap ring.
4. Install the clutch coil assembly inside the cover
and tighten three nuts.
NOTE
Before assembly, check the clutch coil for its
proper functioning by checking the resistance
value.
The coil resistance should be in the range of
2.84 Ω at 25º C.
5. Apply 1.6 mm bead of Loctite RTV598 to the
transfer case-mounting surface. For installation
of cover, align the cover with transfer case. Do
not use excessive force.
6. Locate the speed sensor assembly on the
cover and push the same for fitment.
7. Install the cover onto the case and tighten 13
self locking
(1)
and 2 hexagonal headed
(2)
bolts positioning identification tag
8. Insert the speedo assembly in to the rear cover
and tighten the screw as shown below.
