TRANSFER CASE
36

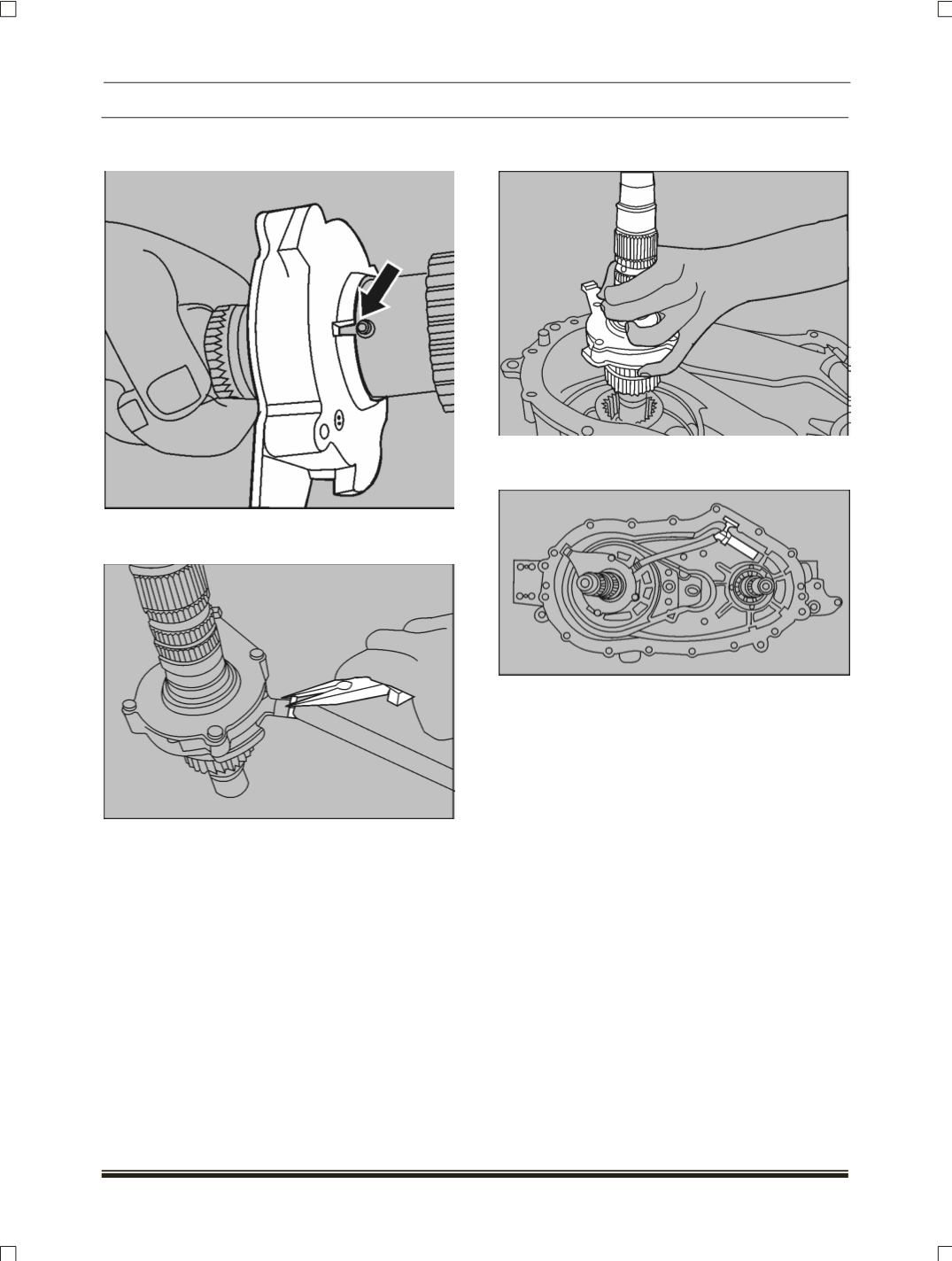

2. Slide the pump assembly on the output shaft
over pump pin
3. Slip hose clamp over free end of hose coupling
and push onto on the pump and tighten.
4. Install snap ring on to the output shaft, if
removed.
5. Install the out put shaft along with Gerotor
pump.
6. Couple strainer with case and insert the
magnet into the transfer case slot.
