A. SIDE BODY DIMENSIONS
A, B, C, D, and E are the centre points of the holes provided on the body shell for door hinges. All the
dimensions need to be measured with respect to these centers.

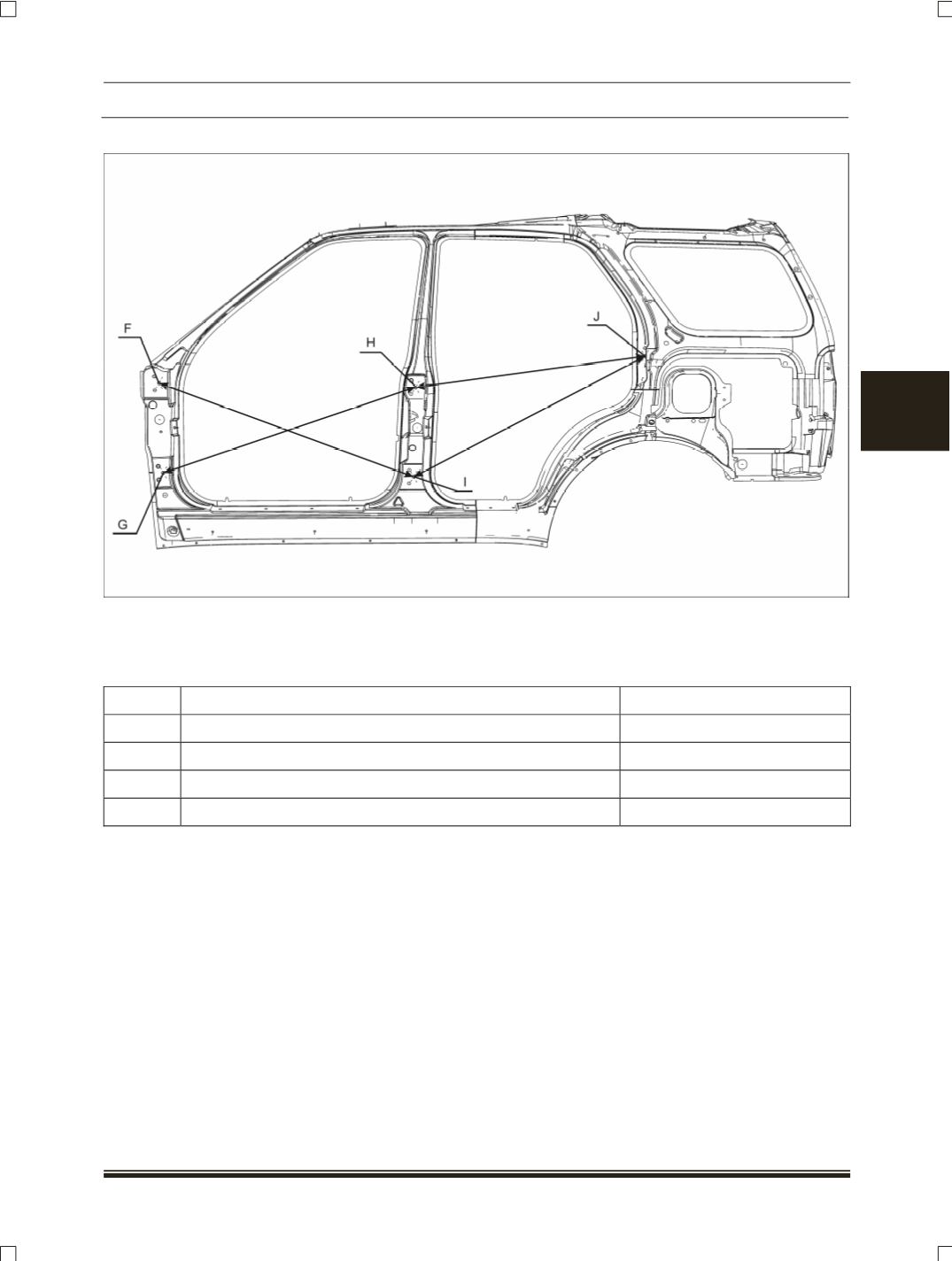

Dimension in Side View
SR. NO
MEASUREMENT POSITION
LENGTH (mm)
1
F - I
1196
2
G - H
1175
3
H - J
1043
4
I - J
1174
