C. UNDER BODY DIMENSIONS

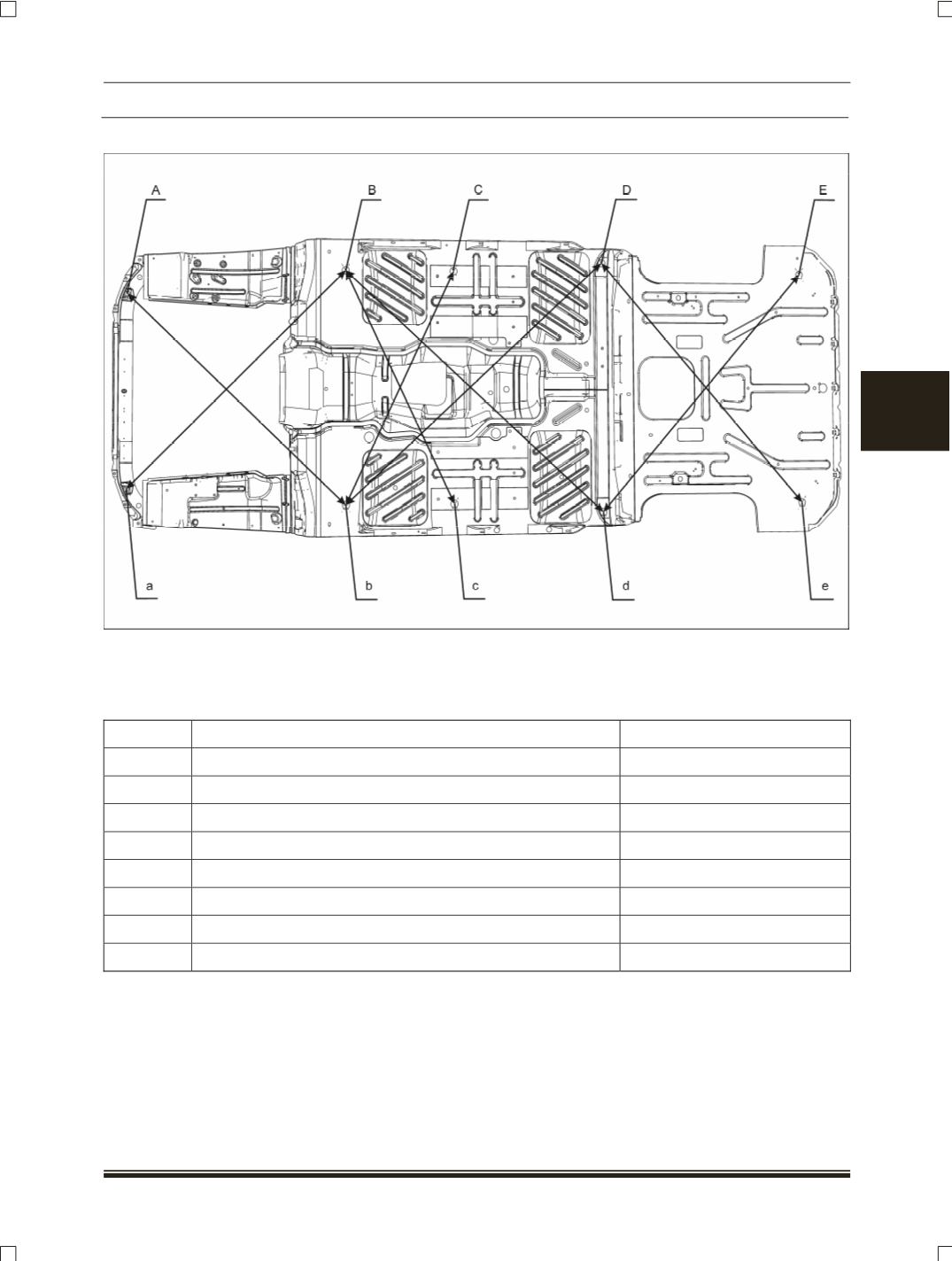

The points which are mentioned in the figure are indicating the centre points of the holes which provided on
the underbody for body mountings. The centre distances given between two points which are given in the
table needs to be maintained at the time of repairing
.
Dimensions in Top View
SR. NO
MEASUREMENT POSITION
LENGTH (mm)
1
A-b
1598
2
a-B
1598
3
B-c
1323
4
b-C
1323
5
B-d
1834
6
b-D
1834
7
D-e
1707
8
d-E
1707
