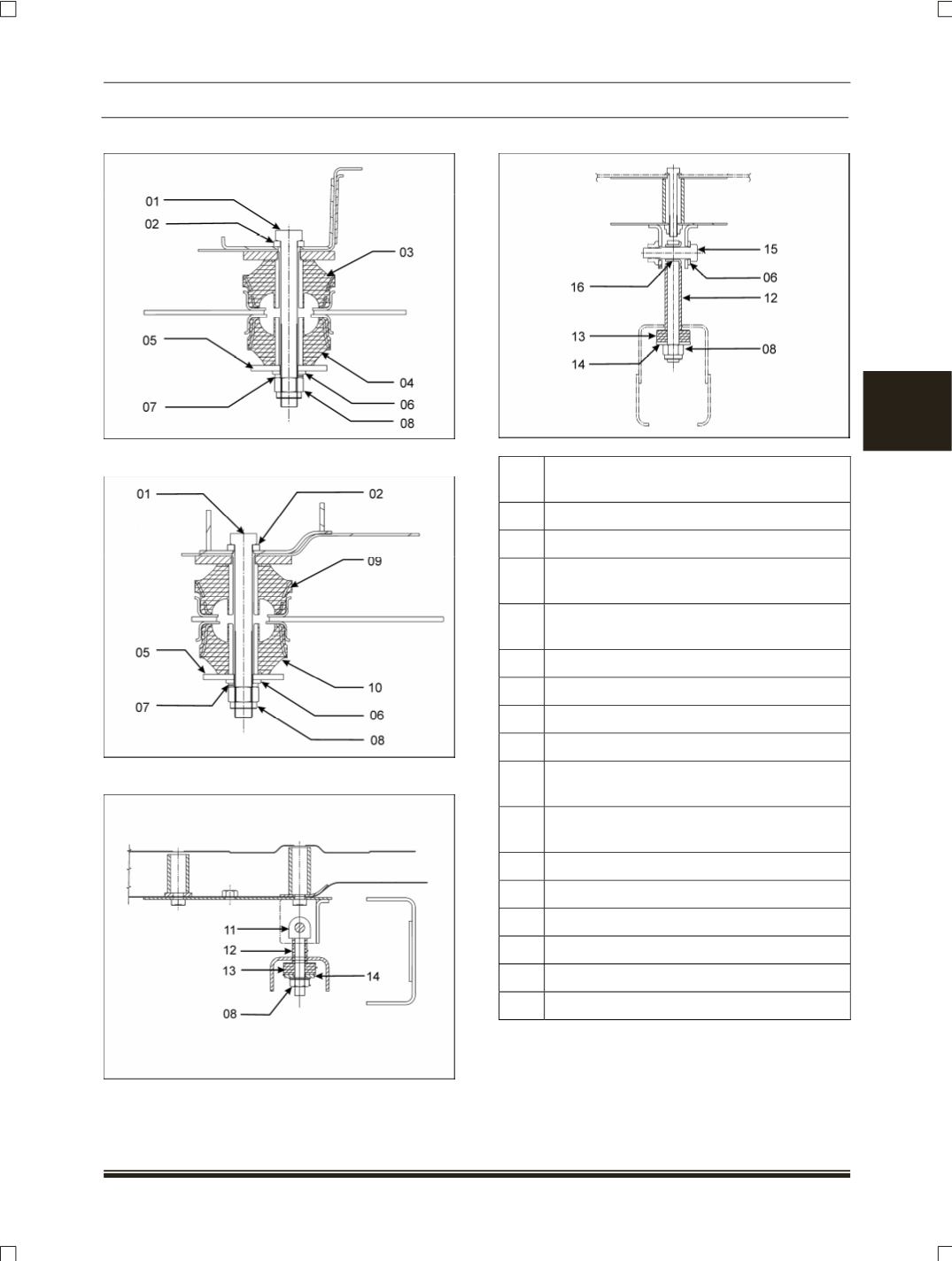

MOUNTING AT LOCATION “A”
MOUNTING AT LOCATION “B, C, D AND E”
MOUNTING AT LOCATION “F”
MOUNTING AT LOCATION “G”
SR
NO. DESCRIPTION
1
Special hex head bolt m12x120
2
Washer body mount A, B & C pillar
3
Assembly body mounting top-(for 1st &
6th mounting)
4
Assembly body mounting bottom-(for 1st
& 6th mounting)
5
Washer
6
Bright washer 13
7
Spring washer B12
8
Nyloc nut M12
9
Assembly body mounting top-(for
2nd;3rd;7th & 8th mtg.)
10 Assembly body mounting bottom-(for
2nd;3rd;7th & 8th mtg.)
11 Eye bolt restraint system
12 Sleeve eye bolt
13 Rubber bush
14 Washer eye bolt
15 Hexagon stepped bolt M10
16 Nylon bush eye bolt
