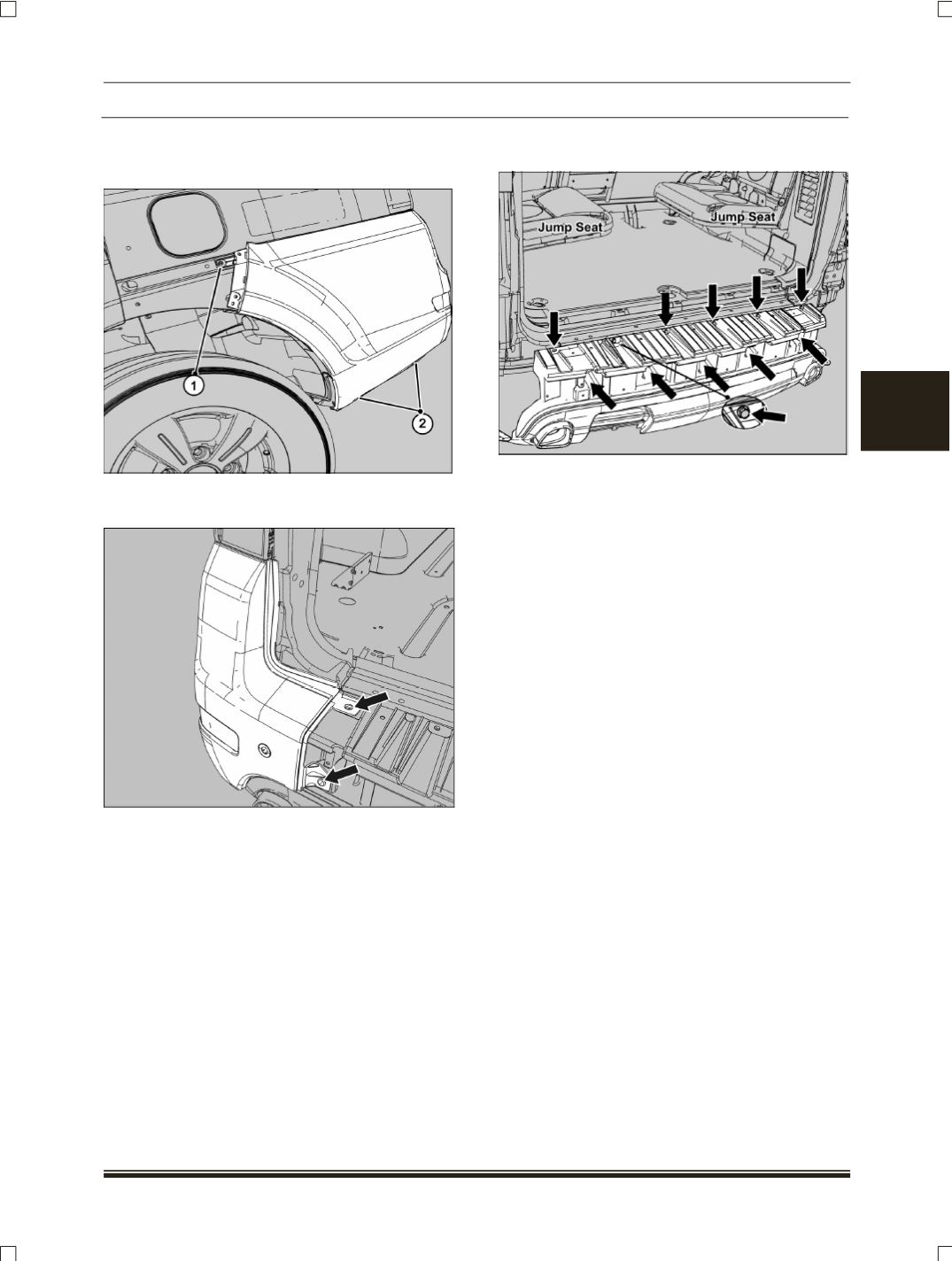

8. Loosen and remove one mounting bolt (1) and
two tree clips (2) of rear side quarter molding
from outside.
9. Remove two tree clips from inside and pull out
the side molding along with fog lamp.
10.Disconnect the electrical connections of fog
lamp and separate the side moulding from
vehicle.
11.Remove the rear wheel arch liner
(For
procedure refer rear wheel arch liner removal
in this section)
12.Loosen and remove ten mounting bolts of lower
rear bumper moulding
13.Separate the rear bumper lower moulding from
vehicle
.
FITMENT
For fitment follow the reverse procedure of
removal.
