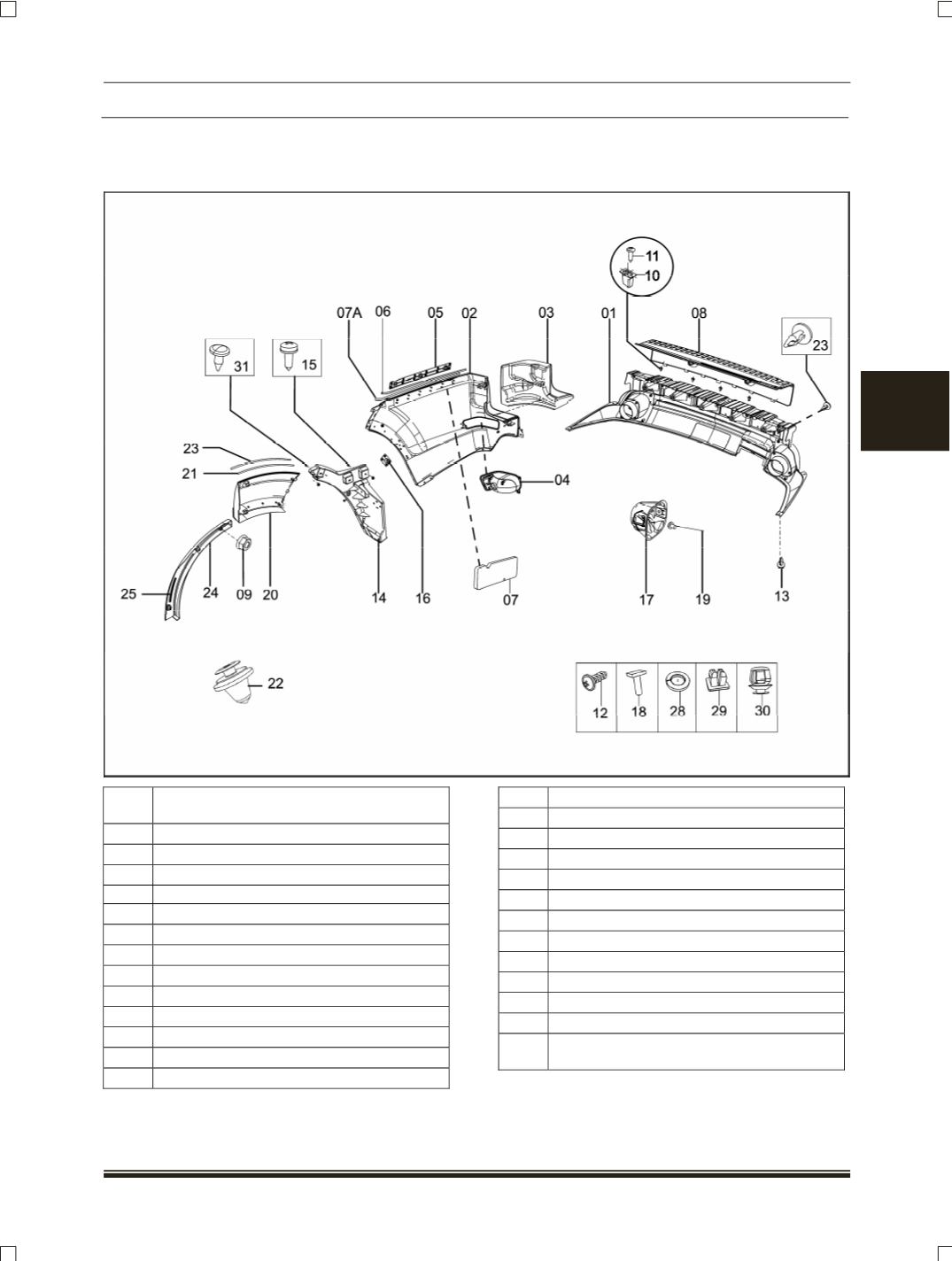

9.2.9 REAR BUMPER
CONSTRUCTIONAL DETAILS
SR.
NO.
DESCRIPTION
01 Rear bumper moulding lower assembly
02 Side moulding rear quarter
03 Absorber rear quarter
04 Rear fog lamp with reflex reflector
05 Fixing strip rear wheel arch moulding
06 Foam strip side moulding rear quarter
07 Foam rear quarter panel
07A Seal for side moulding rear quarter
08 Rear bumper cover assembly
09 Flange nut
10 Nut plastic for scuff tread plate fixing
11 Torx bolt ST4.2X13.2
12 PT 3.5 X 14 screws
13 Scrivet 6.0 dia.
14 Bumper side mounting bracket
15 Screw C-ST4.8X16
16 Fixing housing rear quarter moulding
17 Assembly fuel filler bowl
18 T-stud
19 Cross pan headed screw M6X10
20 Rear qtr filler moulding
21 3M tape
22 Clip
23 Seal for fuel filler moulding
24 Side moulding rear wheel arch
25 Foam strip side moulding rear wheel
arch
