1420 / 1575
BODY
25
BODY
REMOVAL

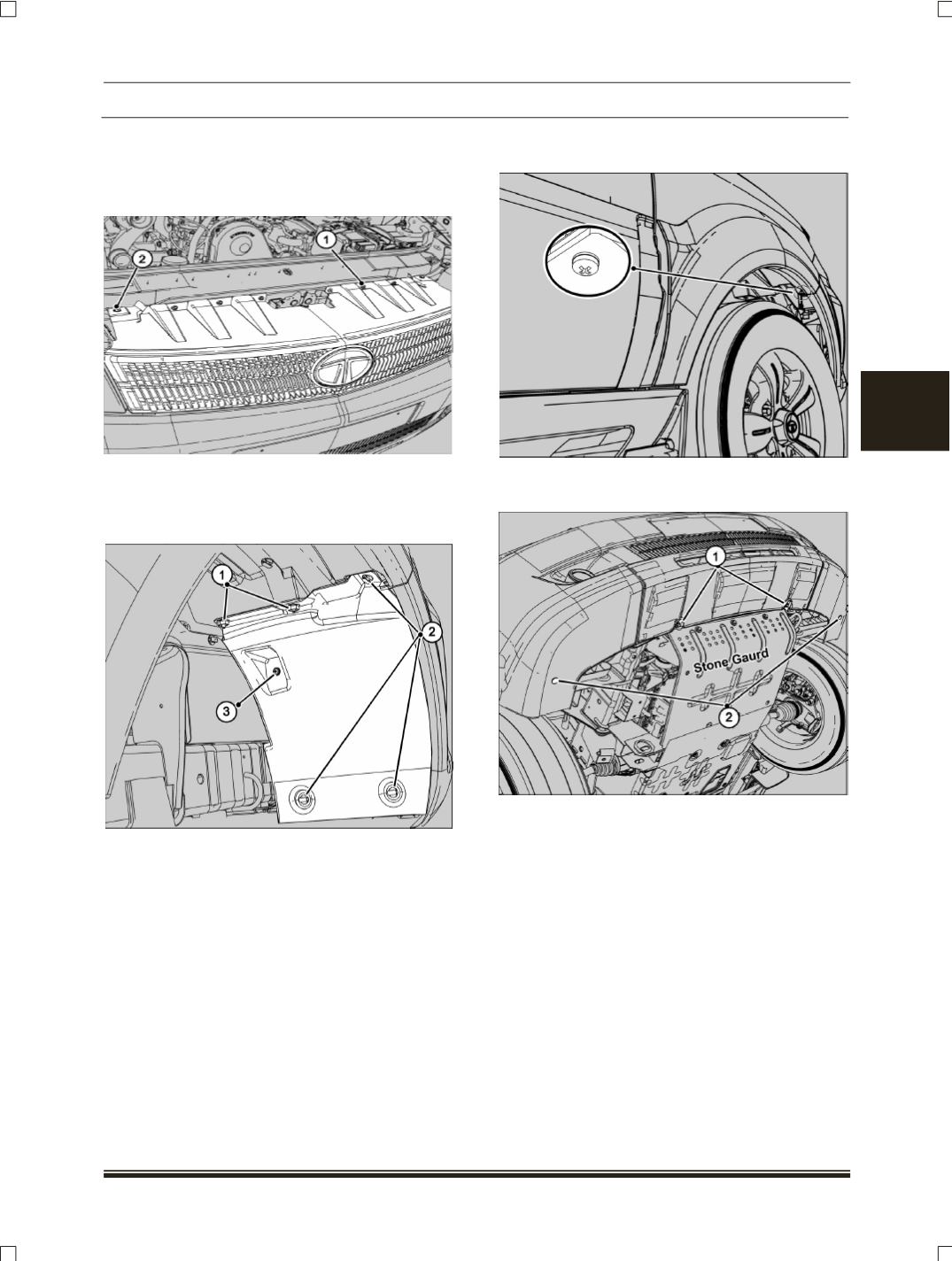

1. Loosen and remove mounting screws
(1) (6
Nos),
remove mounting bolts
(2).(2 Nos)
and
take out the finisher grill assembly
2. Remove plastic nut
(1)(2 Nos.)
and clips
(2)(4
Nos)
and one mounting screw(3).then take out
the front mud guard (
Follow same procedure
for other end also).
3. Loosen and remove mounting screw from both
side of front bumper.
4. Loosen and remove two mounting bolts
(1)
and
pull out two tree clips
(2)
from bottom side.
