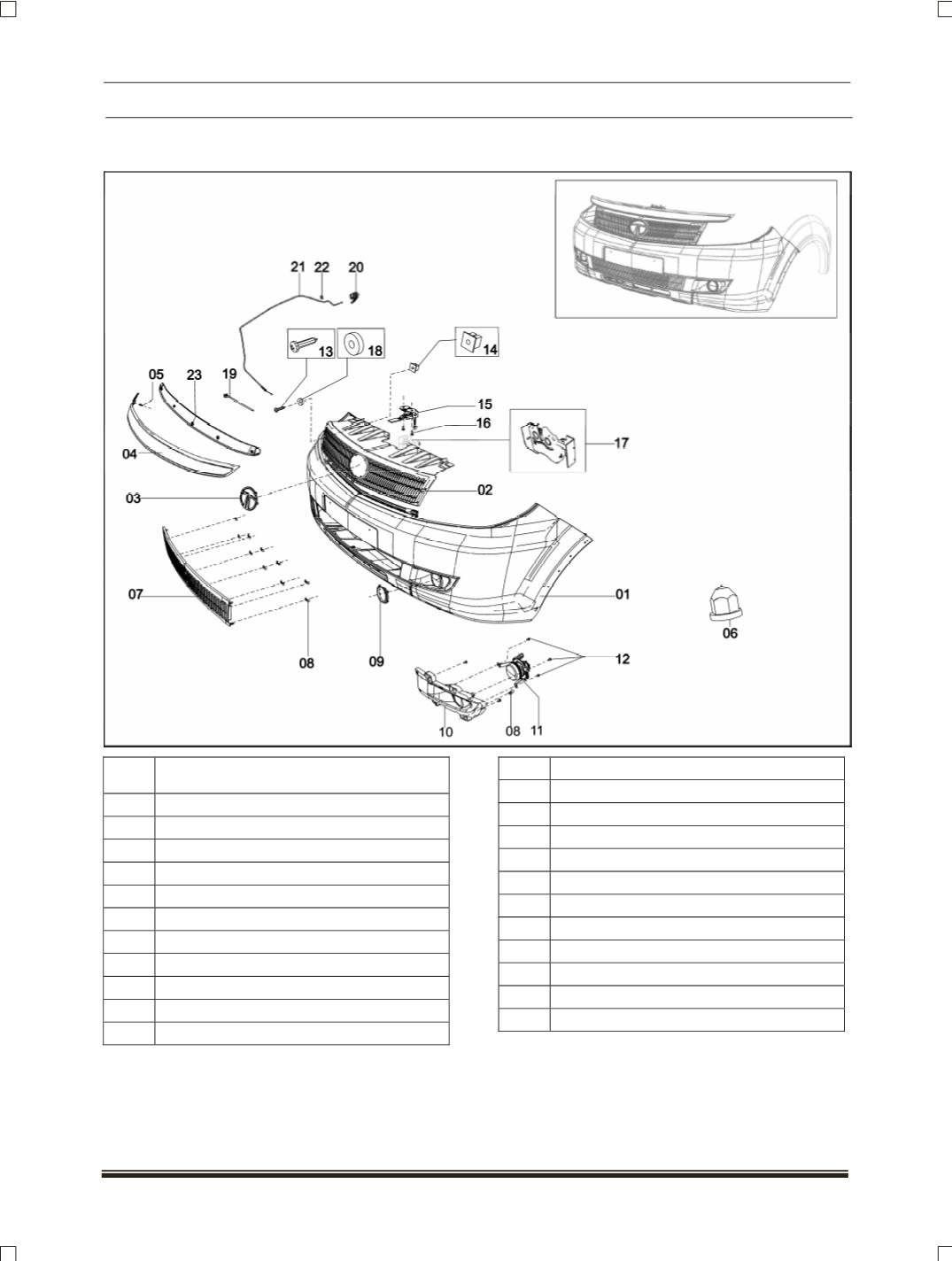

9.2.8 FRONT BUMPER
CONSTRUCTIONAL DETAILS
SR.
NO. DESCRIPTION
01 Bumper cover
(Unpainted)
02 Front grille
03 T – emblem
04 Bonnet finisher chrome
05 Stud m5 bonnet finisher
06 Dome nut m5
07 Lower grille
08 Clip lower grille front bumper
09 Fog lamp bezel ring
10 Cover fog lamp
11 Front fog lamp
12 Pan hard screw M5X8
13 Cross pan headed tapping screw
14 Nut plastic
15 Assembly hood striker
16 Hex fl screw M6X16
17 Assembly. hood latch RHD
18 Rubber washer
(Grill mounting.)
19 Clip for hood release cable dia.8
20 Hood release lever
21 Assembly release cable
22 Rubber grommet
(Bonnet release cable)
23 Bonnet finisher internal
