SAFARI STORME

BODY

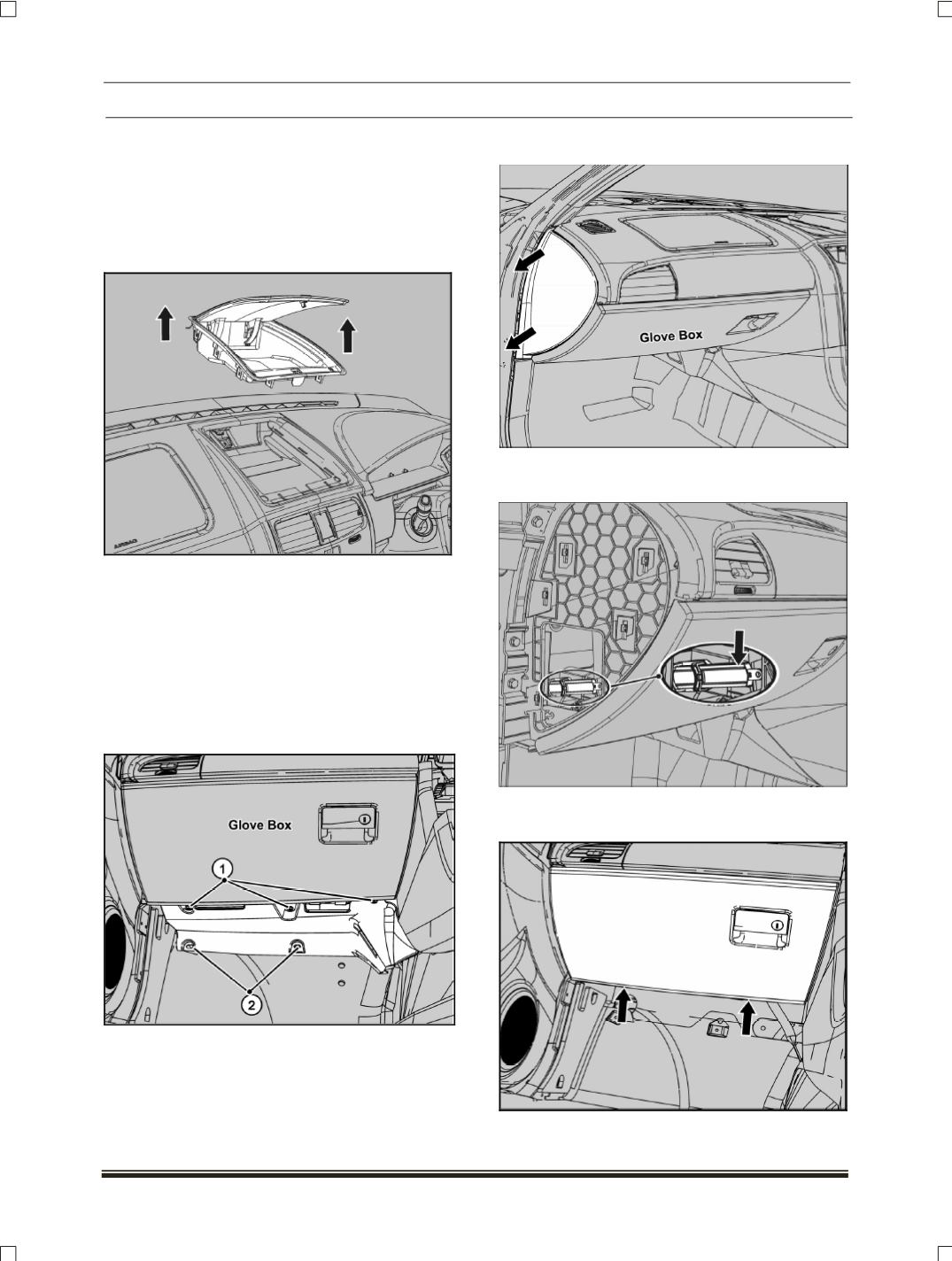

9.2.4 TOP UTILITY BIN

REMOVAL

1. Open top utility bin door.

2. Pull out top utility bin assembly from. dashboard

by using the plastic wedge (

Tool part no. 2871

5890 40 02)

FITMENT

For fitment push the top utility bin in the slot

provided on dash board.

9.2.5 GLOVE BOX

REMOVAL

1. Remove mounting screws

(1) (3 Nos.).

and tree

clips (

2) (2 Nos.).and take out passenger hush

panel for easy access to glove box hinges.

2. Remove LH side en cover plate.

3. Open the glove box flap and take out the

stoppers from both ends.

4. Remove two hinge pins from both ends and

take out the glove box.
