SRS
17
10.6.5 FRONT (RH) REMOTE SENSING UNIT
(RSU)
NOTE
:
Perform replacement procedure of impact
sensor when engine is cold otherwise it
may cause personal injury.
Removal
1. Disconnect battery.
2. Disconnect air intake hose.
3. Disconnect electrical connector of front
remote sensing unit.
4. Remove mounting bolt of front remote
sensing unit located at front RH crash
member and take the unit out.
NOTE: (Applicable to LH and RH unit / sensor)
1. Impact sensors cannot be checked on
multimeter.
2. If the sensor fails or does not
communicate properly with ECU or not
connected properly, then Air Bag Warning
lamp will get ON (placed in instrument
cluster). This can be examined using
diagnostics tester

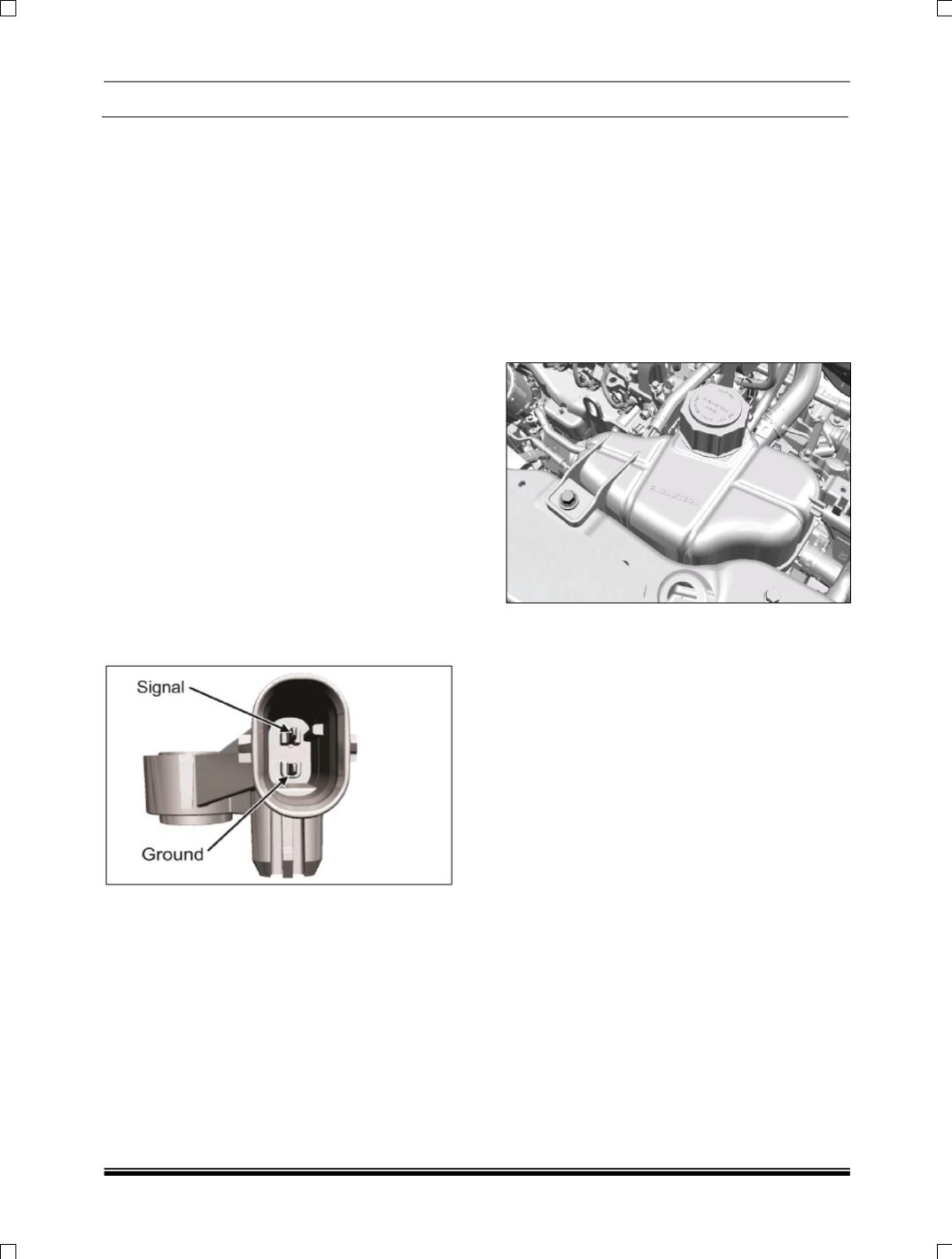

3. Pin out details of Impact sensor:
Installation
1. Locate the sensor using the locator. Ensure
that the locator is not broken. Tighten
mounting nut of impact sensor to specified
torque. (1.0 Kgm)
2. Reconnect electrical connector of impact
sensor.
3. Reconnect air intake hose.
4. Reconnect battery.
10.6.6 FRONT (LH) REMOTE SENSING UNIT
(RSU)
NOTE:
Perform replacement procedure of impact
sensor when engine is cold otherwise it may
cause personal injury.
Removal
1. Disconnect battery.
2. Remove two mounting fasteners of coolant
reservoir and park the reservoir aside
Installation
NOTE:
Pin out details for Front (LH) Remote Sensing
Unit (RSU) are same as that of Front (RH)
Remote Sensing Unit (RSU)
1. Locate the sensor using the locator. Ensure
that the locator is not broken. Tighten
mounting nut of impact sensor to specified
torque. (1.0 Kgm)
2. Reconnect electrical connector of impact
sensor.
3. Mount coolant reservoir properly and tighten
both mounting fasteners.
4. Reconnect battery.
