SRS
21

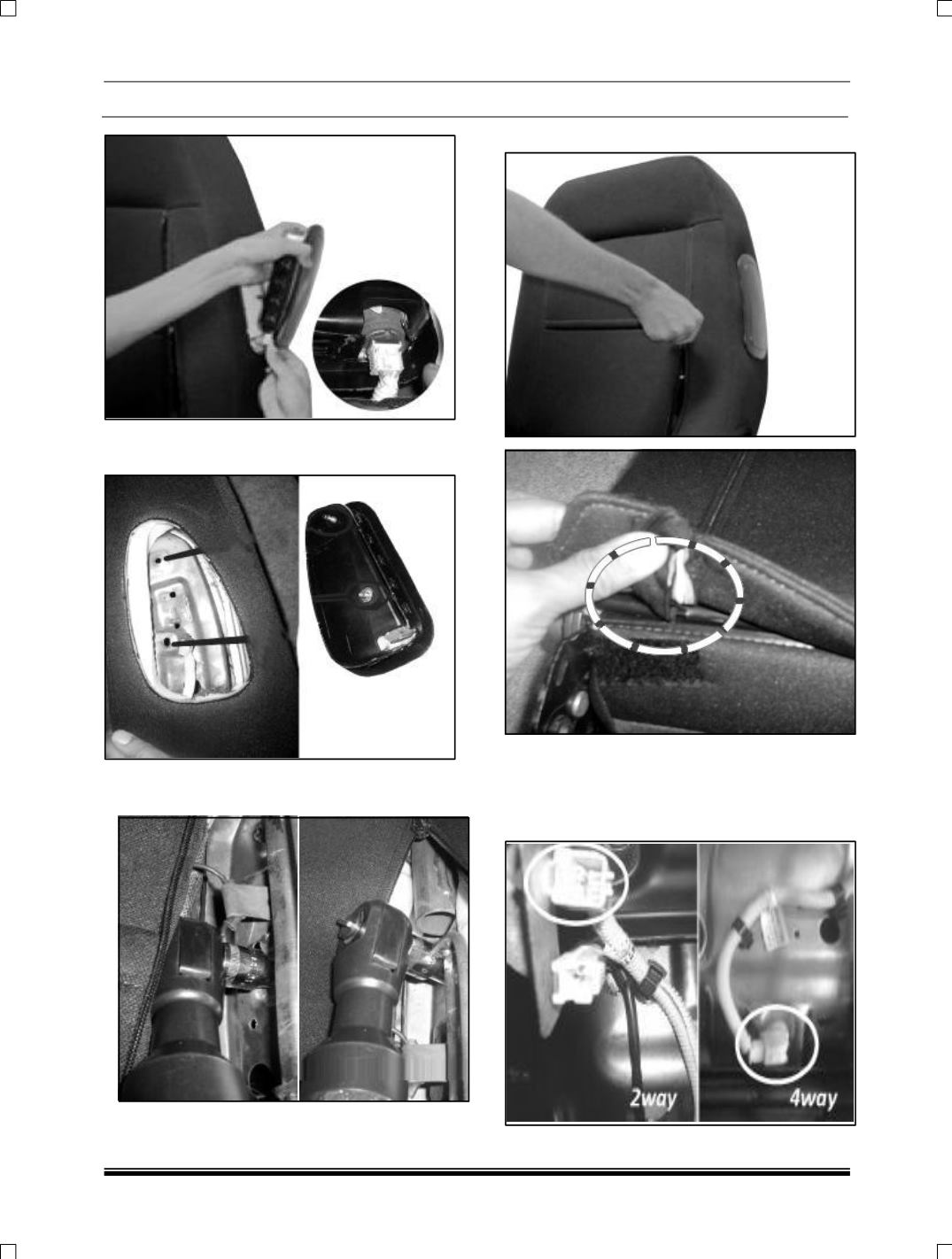

2. Insert Airbag stud into Seat Metal frame
(Visible through Back Foam cavity)
3. Tighten the Nut M6 (2Nos) to specified torque
(1.0 Kgm)
4. Close the front seatback zip and insert the
hanging zip into Front seat Back bottom side
retainer.
2. After installation, check the connectivity at
other end of pigtail connector by multi meter
(At seat cushion bottom side). Resistance: 2
+/ - 0.2 Ù
5. Reconnect battery.
