10.2.9 PASSENGER AIRBAG (PAB)
ACTIVATION AND DEACTIVATION SWITCH( IF
FITTED)

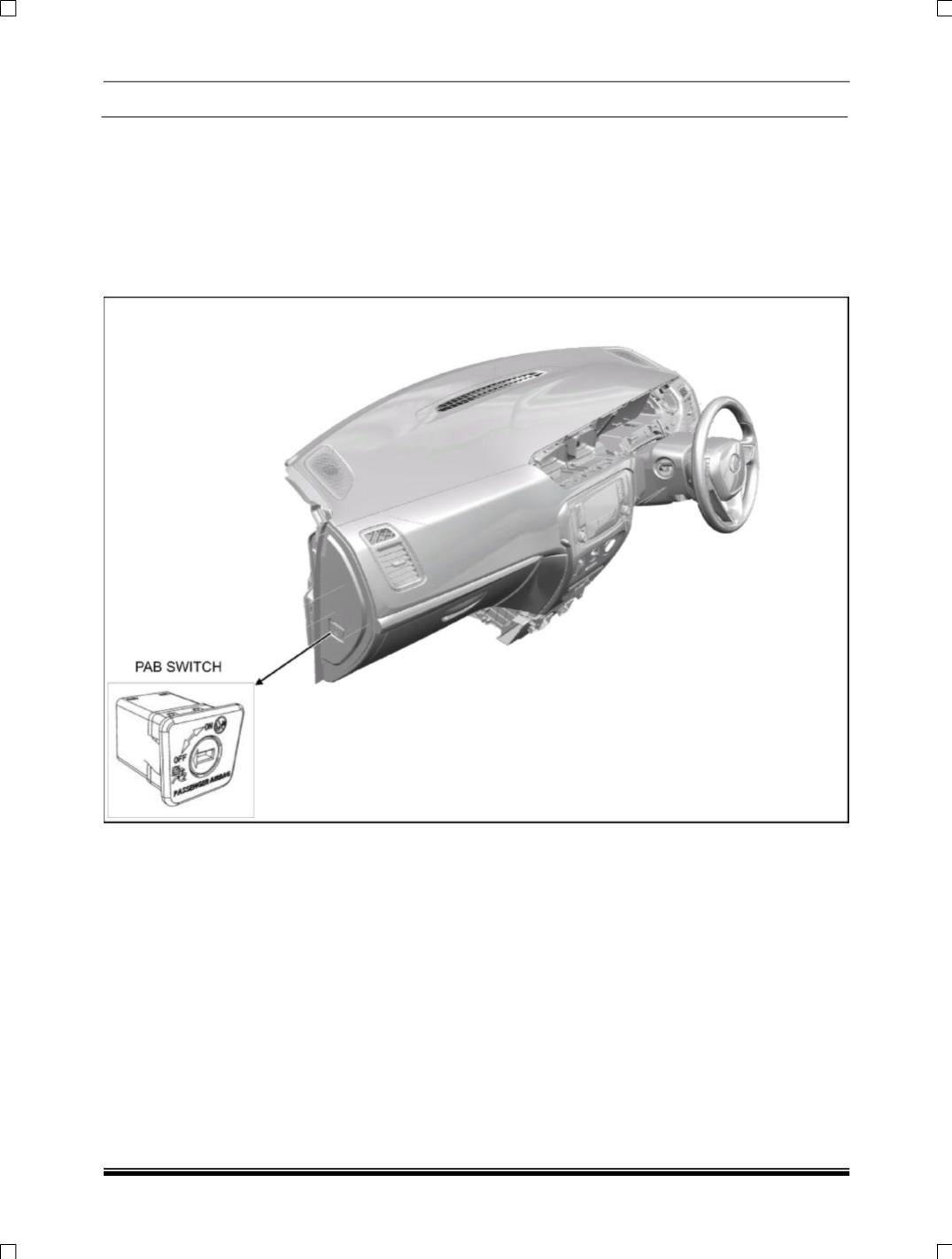

If it becomes necessary to fit a child restraint on
front passenger seat, the airbag must be de-
activated using the switch located on the end of
instrument panel on the passenger’s side. On the
Contrary, when an adult is seated in the front
passenger seat, ensure that PAB disabling switch
is turned to ON position. This will ensure that the
passenger airbag is operational in the event of a
crash. Access to this switch can be made with
passenger’s door open. This switch is operated
using the ignition key.
When the PAB disabling switch is turned OFF, the
OFF indicator on the PAB indication lamp glows to
indicate that the passenger airbag has been
deactivated. When PAB disabling switch is turned
ON, the ON indicator on the PAB indication lamp
glows to indicate that the passenger airbag is
operational.
NOTE: The PAB indication lamp glows only
when the Ignition is turned ON. Hence confirm
the PAB status after turning the ignition to ON
position.
If the airbag SRS warning indicator in the
instrument cluster illuminates continuously, it
means that there is malfunction in the system.
Vehicle needs to be diagnosed.
PAB switch connection details:
